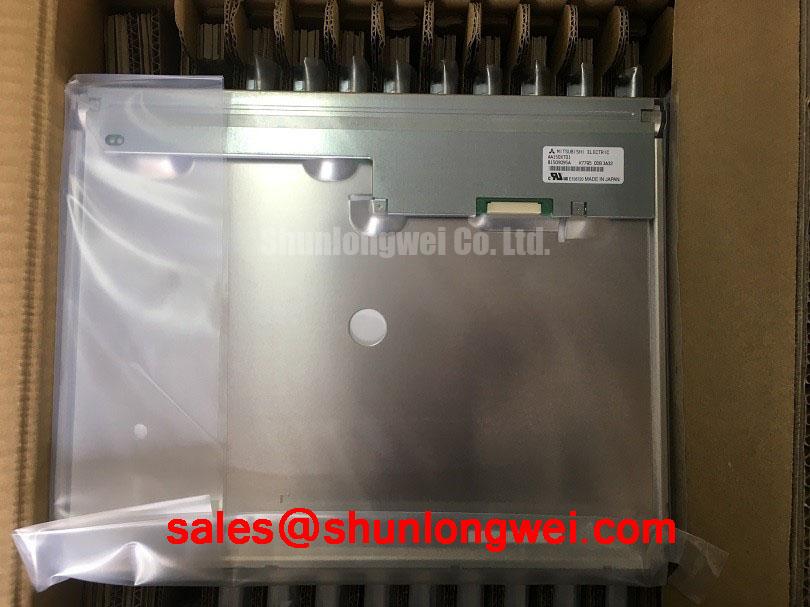

Mitsubishi AA150XT01 LCD Display

Mitsubishi AA150XT01: 15" industrial LCD delivering robust performance. With 800 nits brightness & -30~80°C temp range, it ensures clarity & reliability in extreme conditions.

· Categories: LCD Display
· Manufacturer: Mitsubishi
· Price: US$
· Date Code: 2022+
. Available Qty: 528
Like
Tweet
Pin It
4k
Email: sales@shunlongwei.com
Whatsapp: 0086 189 2465 1869

Contact us To Buy Now!

AA150XT01 Specification

Mitsubishi AA150XT01 | High-Brightness, Wide-Temperature Industrial Display

The Mitsubishi AA150XT01 is a 15.0-inch TFT-LCD engineered not just to display information, but to perform reliably in environments where standard displays fail. It is built for mission-critical industrial applications, from heavy machinery control to outdoor digital signage, where visual clarity and operational robustness are non-negotiable. This display moves beyond basic specifications, offering a solution designed to minimize downtime and enhance operator effectiveness under challenging conditions.

Technical Deep Dive: Engineered for the Extremes

  • Sunlight Readability and High Brightness

    Technical Principle: The AA150XT01 features a powerful WLED backlight system delivering a typical brightness of 800 cd/m². This high luminance, combined with an 800:1 contrast ratio, ensures that on-screen data remains sharp and legible.

    Application Value: For operators of construction vehicles, agricultural machinery, or outdoor kiosks, this translates directly to effortless readability, even in direct sunlight. It eliminates the visual washout that plagues lesser displays, reducing eye strain and critical errors. Explore more on the importance of this feature in our guide to Sunlight Readable HMIs.

  • Extreme Temperature Operational Range

    Technical Principle: This display is designed with industrial-grade components and materials that allow it to operate flawlessly across a temperature range of -30°C to 80°C. This resilience is fundamental to the a-Si (Amorphous Silicon) TFT technology used.

    Application Value: This wide temperature tolerance makes the Mitsubishi AA150XT01 an ideal choice for un-climatized environments. It guarantees stable performance whether installed in a refrigerated warehouse control panel, a non-air-conditioned factory floor HMI, or an outdoor ticketing machine exposed to seasonal weather swings.

Multi-Dimensional Application Scenarios

  • Heavy Machinery & Vehicle Cabs: In excavators, cranes, and tractors, operators need instant access to critical data. The AA150XT01's high brightness cuts through glare, while its robust construction withstands the shock and vibration common in these settings, ensuring system longevity.
  • Marine & Navigation Systems: On a ship's bridge, information must be viewable from multiple angles by different crew members. The display's symmetrical 80/80/80/80 viewing angles ensure consistent image quality from any perspective, a critical safety feature for marine navigation.
  • Industrial Automation & Process Control: On the factory floor, clarity is key to efficiency. The XGA (1024x768) resolution of the Mitsubishi AA150XT01 provides the detail needed for complex schematics and HMI interfaces, while its long-life backlight (100K hours) minimizes maintenance cycles in 24/7 operations.
  • Outdoor Kiosks & Vending: For public-facing interactive systems, reliability is paramount. The wide operating temperature and high brightness ensure the display is functional and readable year-round, from freezing winters to hot summers, maximizing uptime and user satisfaction.

Key Technical Specifications

ParameterValue
ModelAA150XT01
Screen Size15.0 inch
Resolution1024(RGB)×768 [XGA]
Brightness800 cd/m² (Typ.)
Viewing Angle80/80/80/80 (Typ.)(CR≥10)
Operating Temperature-30 ~ 80 °C
Storage Temperature-30 ~ 80 °C
Signal InterfaceLVDS (1 ch, 6/8-bit), 20 pins Connector
BacklightWLED, 100K Hours, With LED Driver
DatasheetDownload AA150XT01 Datasheet

Selection Advice: Standard vs. High-Performance

Engineers often weigh standard displays against high-performance models like the AA150XT01. A standard 15-inch display might offer 250-300 nits of brightness and a 0-50°C operating range. While suitable for stable, indoor office environments, it would prove inadequate for most industrial uses. The AA150XT01 is the superior choice when your application involves fluctuating temperatures, high ambient light, or demands long-term reliability without frequent replacement. The upfront investment is offset by reduced maintenance, enhanced system usability, and avoidance of weather-related failures. For a deeper dive into display technologies, browse our full range of industrial LCD displays.

Frequently Asked Questions

  • What type of controller board is required for the AA150XT01?This display uses a standard LVDS interface (1 channel, 6/8-bit), which is compatible with a wide range of industrial single-board computers and A/D controller boards. Ensure your chosen board supports the XGA resolution and can supply the correct power for the display and its integrated LED driver.
  • Is the LED backlight on the AA150XT01 user-replaceable?The backlight unit is designed for an exceptionally long life of 100,000 hours, which typically exceeds the operational life of the equipment it's installed in. As an integrated component, it is not designed for simple field replacement. This design choice by Mitsubishi prioritizes long-term reliability and a sealed, robust construction.
  • How does the display secure against shock and vibration?The Mitsubishi AA150XT01 features mounting holes on its side flanges, allowing for a secure and rigid installation within an enclosure or chassis. This mechanical stability is crucial for applications in mobile machinery, transportation, and heavy industrial environments.

For detailed integration support or to discuss your specific project requirements, please contact our technical team for expert guidance.
