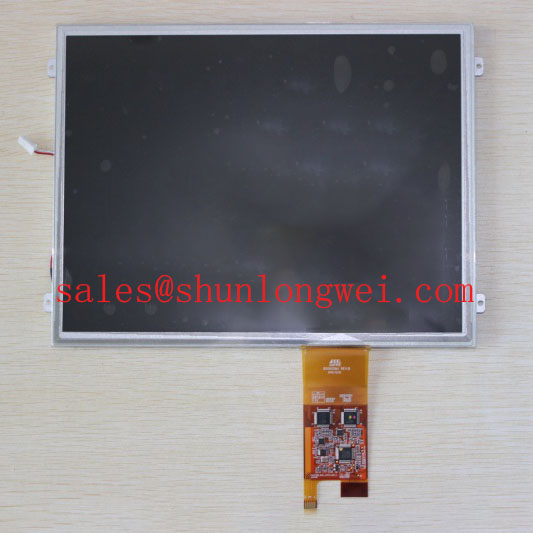

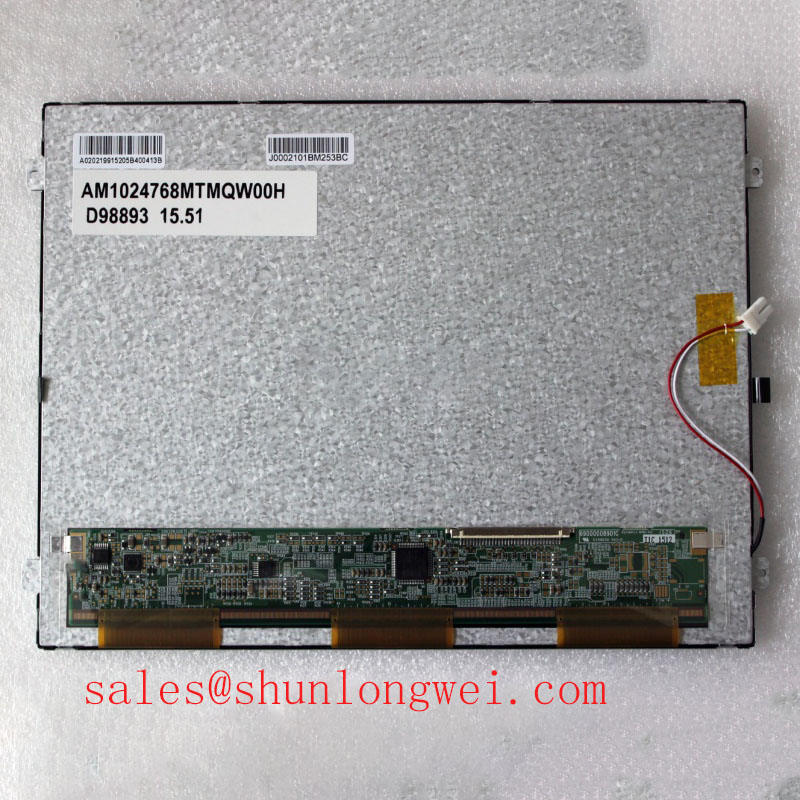

#Ampire, #AM_1024768MTMQW_00H, #LCD_Display, #LCD, AM-1024768MTMQW-00H Ampire 10.4 inch LCM 1024×768 500 75/75/60/80 262K WLED LVDS
Brand AMPIRE
Model P/N AM-1024768MTMQW-00H
Diagonal Size 10.4 inch
Panel Type a-Si TFT-LCD, LCM
Resolution 1024(RGB)×768, XGA 123PPI
Pixel Format RGB Vertical Stripe
Active Area 211.2(W)×158.4(H) mm
Bezel Opening 213.2(W)×160.4(H) mm
Outline Size 236(W)×174.3(H) ×7.7(D) mm
Brightness 500 cd/m² (Typ.)
Viewing Angle 75/75/60/80 (Typ.)(CR≥10)
Display Colors 262K 47% NTSC
Frequency 60Hz
Weight 385g (Typ.)
Surface Antiglare
Display Mode TN, Normally White, Transmissive
Response Time 25 (Typ.)(Tr+Td)
Lamp Type 3S13P WLED , 20K hours , Without Driver
Touch Screen Without
Signal Interface LVDS (1 ch, 6-bit) , 30 pins Connector
Input Voltage 3.3V (Typ.)
Environment Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
