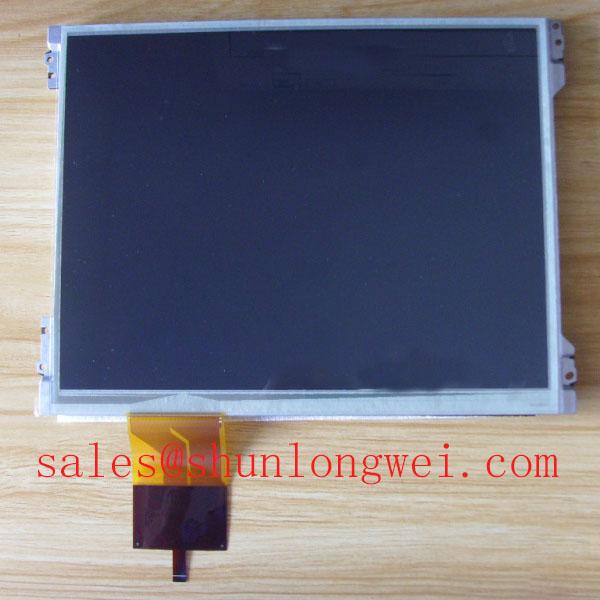

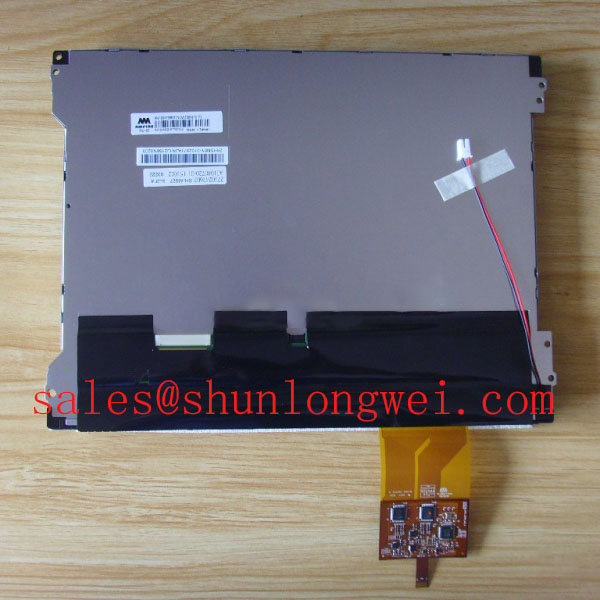

Brand AMPIRE
Model P/N AM-1024768R2TNQW-T00H
Diagonal Size 12.1 inch
Panel Type a-Si TFT-LCD, LCM
Resolution 1024(RGB)×768, XGA 105PPI
Pixel Format RGB Vertical Stripe
Active Area 245.76(W)×184.32(H) mm
Outline Dim. 279(W)×209(H)×11.2(D) mm
Luminance 850 cd/m² (Typ.)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10)
Support Color 262K/16.7M
Frame Rate 60Hz
Contrast Ratio 800:1 (Typ.) (TM)
Response Time 16 (Typ.)(Tr+Td)
Operating Mode TN, Normally White, Transmissive
Light Source WLED [10S5P] , 50K hours , W/O Driver
Designed For
Touch Panel PCAP, USB
Interface Type LVDS (1 ch, 6/8-bit) 20 pins Connector
Power Supply 3.3V (Typ.)
Environment Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
