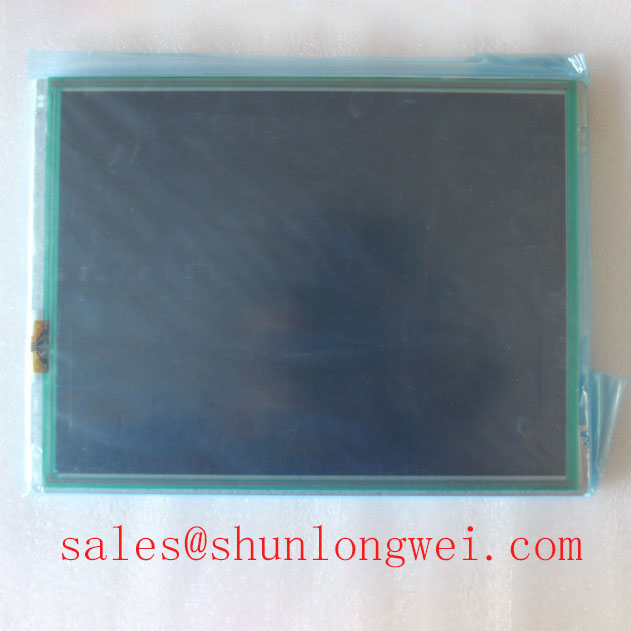

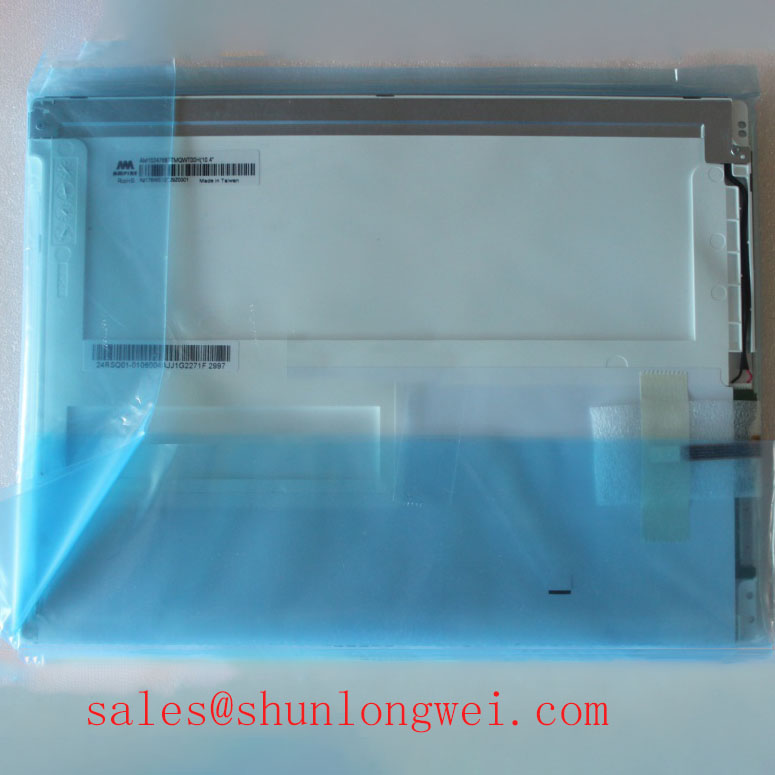

- Brand: AMPIRE
- Model P/N: AM-1024768TTMQW-T00H
- Diagonal Size: 10.4 inches
- Panel Type: a-Si TFT-LCD, LCM (Liquid Crystal Module)
- Resolution: 1024 (RGB) x 768 pixels, XGA
- Pixel Format: RGB Vertical Stripe
- Active Area: 211.2mm (W) x 158.4mm (H)
- Bezel Opening: 214.8mm (W) x 162.0mm (H)
- Outline Dimensions: 236mm (W) x 176.9mm (H) x 7.9mm (D)
- Surface: Antiglare
- Brightness: 280 cd/m² (Typical)
- Contrast Ratio: 900:1 (Typical)
- Viewing Angle: 75/75/75/75 (Typical) (CR≥10) Left/Right/Up/Down
- Best View at: 6 o'clock
- Display Colors: 262K/16.7 million
- Frequency: 60Hz
- Weight: 290 grams (Maximum)
- Display Mode: TN (Twisted Nematic), Normally White, Transmissive
- Response Time: 16ms (Typical) (Tr+Td)
- Lamp Type: 4 strings WLED (White LED) with a lifespan of 30,000 hours and an integrated LED driver
- Touch Screen: 4-wire Resistive Touch
- Application: Industrial use
- Signal Interface: LVDS (Low-Voltage Differential Signaling), 1 channel, 6/8-bit, 20 pins Connector
- Input Voltage: 3.3V (Typical)
- Operating Temperature: -20 ~ 70 °C
- Storage Temperature: -30 ~ 80 °C
