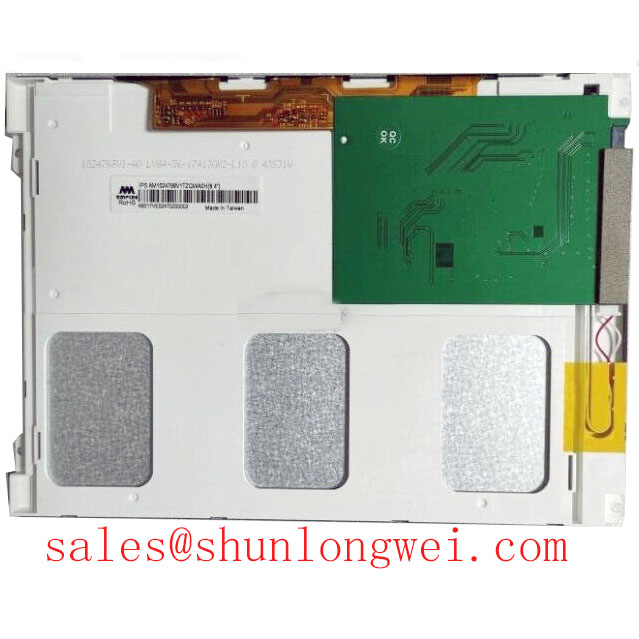

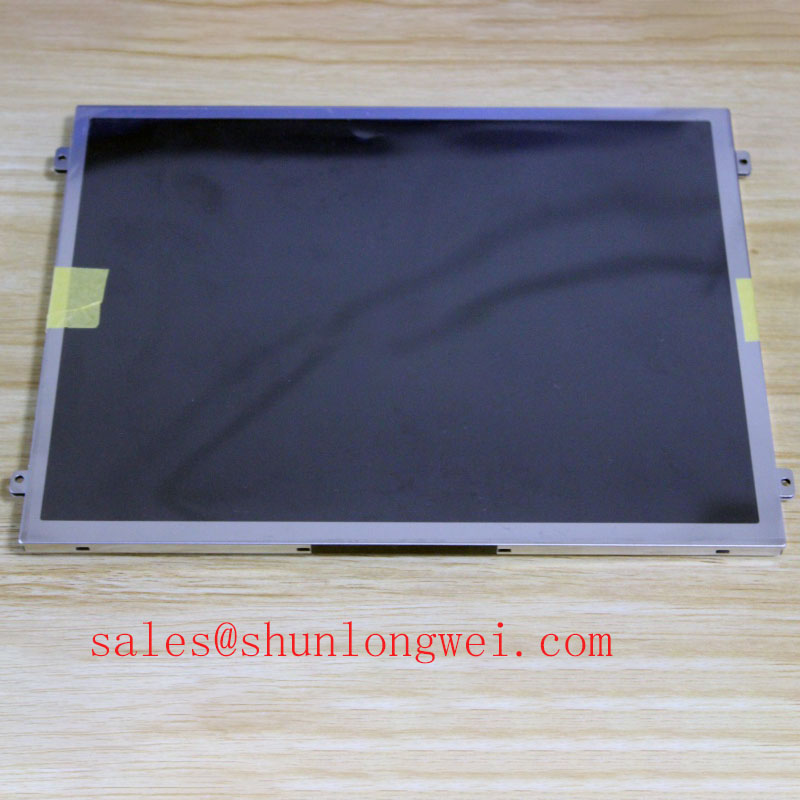

Ampire AM-1024768V1TZQW-A0H LCD Display

Brand AMPIRE
Model P/N AM-1024768V1TZQW-A0H
Diagonal Size 8.4 inch
Panel Type a-Si TFT-LCD, LCM
Resolution 1024(RGB)×768, XGA 152PPI
Pixel Format RGB Vertical Stripe
Active Area 170.8(W)×128.1(H) mm
Bezel Opening 174.15(W)×131.2(H) mm
Outline Dim. 203(H)×145.5(V) ×8(D) mm
Luminance 1000 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
View Direction Symmetry
Response Time 30 (Typ.)(Tr+Td)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Left / Right / Up / Down Operating Mode IPS, Normally Black, Transmissive
IPS Family: AAS, ADS, AHVA, FFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich
VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA
Support Color 16.7M
Light Source WLED [6S6P] , 50K hours , With LED Driver
Designed For Industrial
Frame Rate 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit Touch Panel Without
Interface Type LVDS (1 ch, 8-bit) , 20 pins Connector
Power Supply 3.3V (Typ.)
Environment Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 85 °C
