Content last revised on March 9, 2024
Brand AMPIRE

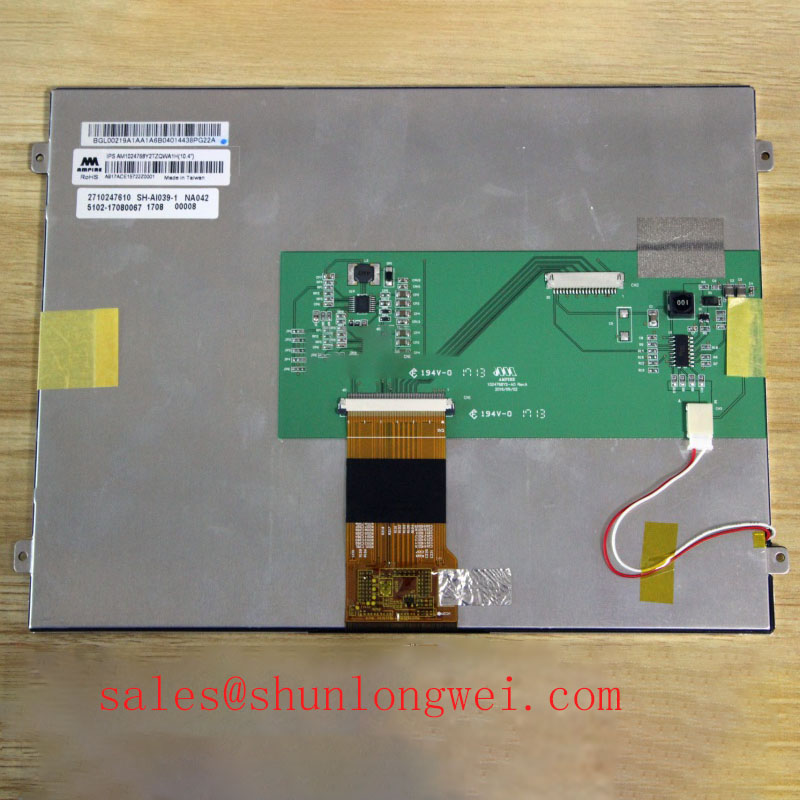

Model P/N AM-1024768Y2TZQW-A1H
Diagonal Size 10.4 inch
Panel Type a-Si TFT-LCD, LCM
Resolution 1024(RGB)×768, XGA 123PPI
Pixel Format RGB Vertical Stripe
Active Area 211.2(W)×158.4(H) mm
Bezel Opening 213.2(W)×160.4(H) mm
Outline(mm) 236 × 174.3 × 10.4 (H×V×D)
Treatment Antiglare, Hard coating (3H)
Luminance 1000 cd/m² (Typ.)
Contrast Ratio 900 : 1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Left / Right / Up / Down
Response 30 (Typ.)(Tr+Td) ms
Good View at Symmetry
Work Mode IPS, Normally Black, Transmissive
Color Depth 16.2M
Backlight WLED , 30K hours , With LED Driver
Mass TBD
Used for Industrial Outdoor High Brightness
Refresh Rate 60Hz
Touchscreen Without
Signal Type LVDS (1 ch, 8-bit) , 20 pins Connector
Voltage Supply 3.3V (Typ.)
Max. Ratings Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
