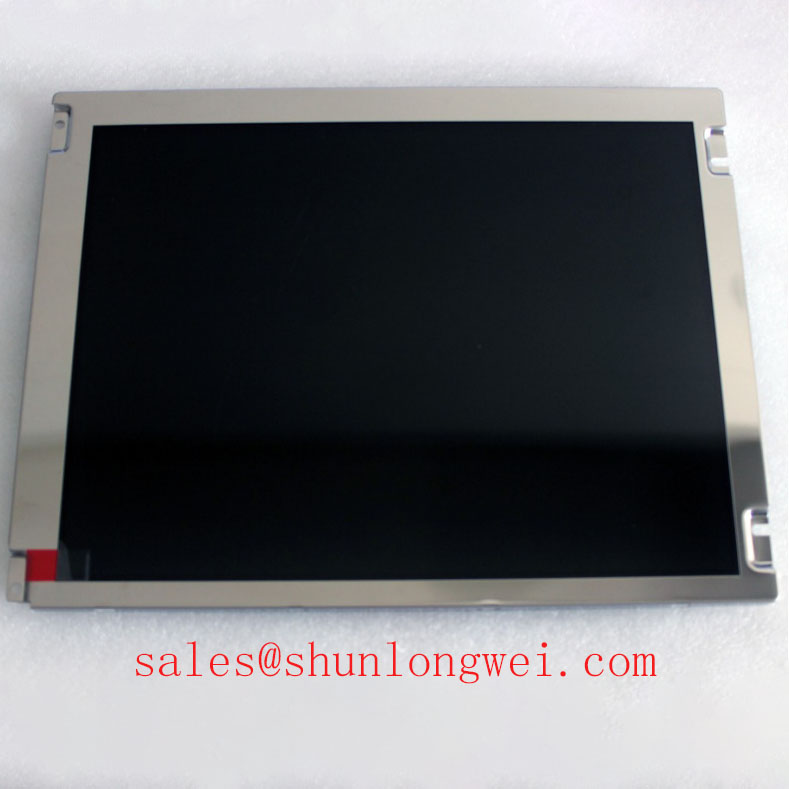

#Ampire, #AM_800600K2TMQW_04H, #LCD_Display, #LCD, AM-800600K2TMQW-04H Ampire 10.4 inch LCM 800×600 500 500:1 70/70/50/60 262K WLED LVDS
Brand: AMPIRE
Model: AM-800600K2TMQW-04H
Diagonal Size: 10.4 inches
Panel Type: a-Si TFT-LCD, LCM
Resolution: 800 (RGB) × 600, SVGA
Pixel Format: RGB Vertical Stripe
Active Area: 211.2 (W) × 158.4 (H) mm
Bezel Opening: 214.8 (W) × 162.7 (H) mm
Outline Dimensions: 243 mm (W) × 185.6 mm (H) × 7.7 mm (D)
Luminance: 500 cd/m² (Typical)
Contrast Ratio: 500:1 (Typical)
Viewing Angle: 70/70/50/60 (Typical) (CR≥10) Left/Right/Up/Down
Response Time: 5 ms (Tr) / 15 ms (Td) (Typical)
Light Source: WLED, 30K hours, With LED Driver
Color Depth: 262K, 50% NTSC
Designed For: Industrial
Refresh Rate: 60Hz
Touchscreen: Without
Signal Interface: LVDS (1 ch, 6-bit), 20 pins Connector
Input Voltage: 3.3V (Typical)
Max. Ratings:
This 10.4-inch LCD panel features a TN display mode with a normal white (black-on-white) configuration. It has a high luminance of 500 cd/m² and a contrast ratio of 500:1. The panel is designed for industrial applications and has a fast response time of 5 ms (Tr) / 15 ms (Td) (Typical). It supports 262K colors and includes a WLED backlight with a lifespan of 30K hours. The voltage supply is 3.3V (Typical), and it has operating temperature ranges of -30 to 80 °C and storage temperature ranges of -35 to 85 °C.
