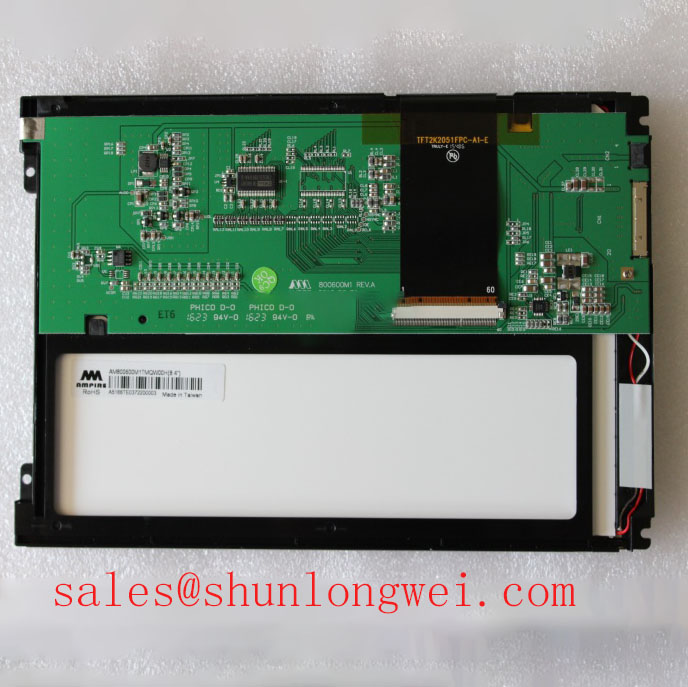

Ampire AM-800600M1TMQW-00H

AM-800600M1TMQW-00H Ampire 8.4 inch LCM 800×600 350 600:1 75/75/60/70 16.2M WLED LVDS

· Categories: LCD Display
· Manufacturer: Ampire
· Price:
Price Range: US$ 50 - US$ 200 (Estimated)
Submit RFQ to Get Price
· Date Code: Please Verify on Quote
. Available Qty: 234
90-Day Warranty
Global Shipping
100% Tested
Email: [email protected]
Whatsapp: 0086 189 2465 1869

Content last revised on July 16, 2025

  • Brand: AMPIRE
  • Model: AM-800600M1TMQW-00H
  • Diagonal Size: 8.4 inches
  • Panel Type: a-Si TFT-LCD, LCM
  • Resolution: 800 x 600 (SVGA)
  • Pixel Format: RGB Vertical Stripe
  • Active Area: 170.4 (W) x 127.8 (H) mm
  • Bezel Opening: 174.15 (W) x 131.2 (H) mm
  • Outline Dimensions: 203 (W) x 145.5 (H) x 10.9 (D) mm
  • Surface: Not specified
  • Brightness: 350 cd/m² (Typical)
  • Contrast Ratio: 600:1 (Typical)
  • Viewing Angle: 75/75/60/70 (Typical, CR≥10) Left / Right / Up / Down
  • Display Mode: TN (Twisted Nematic), Normally White, Transmissive
  • Response Time: 8 (Typical, Tr+Td)
  • Best View on: Not specified
  • Display Colors: 16.2M
  • Lamp Type: 12S4P WLED (White LED), 50,000 hours, With LED Driver
  • Frequency: 60Hz
    • 120Hz (60Hz Input): Embedded MEMC Circuit
    • 120Hz + 120Hz: 120Hz Panel + 120Hz Backlight
    • 240Hz (60Hz Input): Embedded MEMC Circuit
  • Touch Screen: Not included
  • Panel Weight: To be determined (TBD)
  • Application: Industrial
  • Signal Interface: LVDS (1 channel, 8-bit), 20 pins Connector
  • Input Voltage: 3.3V (Typical)
  • Environment:
    • Operating Temperature: -20 ~ 70 °C
    • Storage Temperature: -30 ~ 80 °C
