Brand: AMPIRE

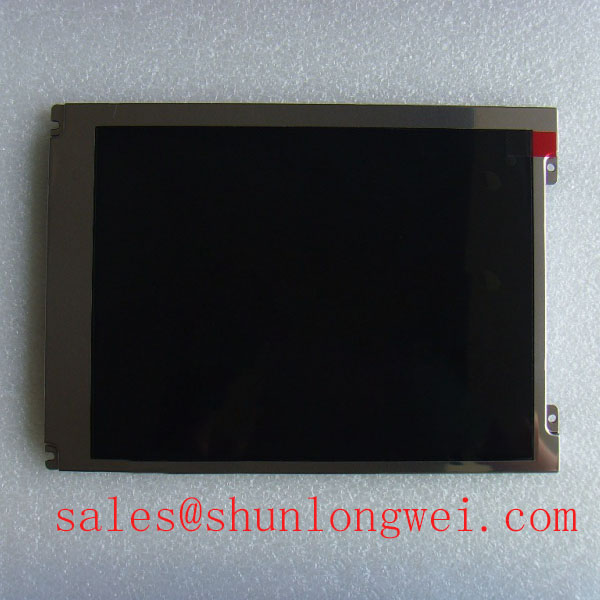

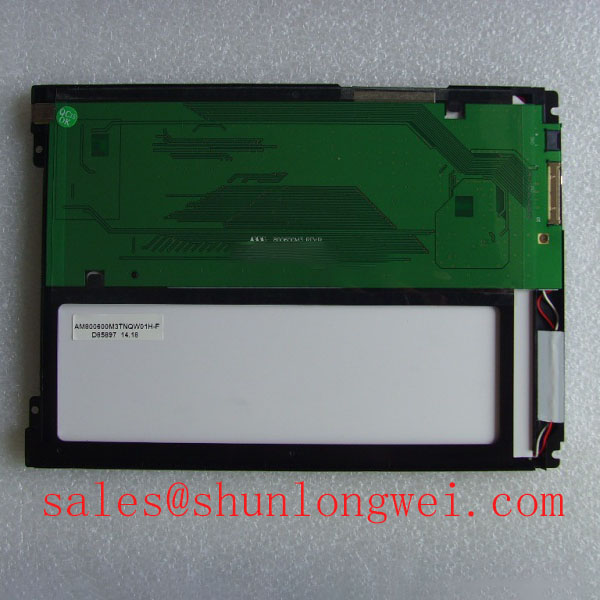

Model: AM-800600M3TNQW-01H-F
Diagonal Size: 8.4 inches
Panel Type: a-Si TFT-LCD, LCM
Resolution: 800 (RGB) × 600, SVGA
Pixel Format: RGB Vertical Stripe
Active Area: 170.4 (W) × 127.8 (H) mm
Bezel Opening: 174.15 (W) × 131.2 (H) mm
Outline Dimensions: 203 mm (W) × 145.5 mm (H) × 8.3 mm (D)
Luminance: 450 cd/m² (Typical)
Contrast Ratio: 600:1 (Typical)
Viewing Angle: 75/75/60/70 (Typical) (CR≥10) Left/Right/Up/Down
Response Time: 8 ms (Typical) (Tr+Td)
Work Mode: TN (Twisted Nematic), Normally White, Transmissive
Color Depth: 262K
Backlight: 12S4P WLED (White Light Emitting Diode), 50,000 hours, With LED Driver
Mass: 280g
Used for: Industrial
Refresh Rate: 60Hz
Signal Type: LVDS (1 channel, 6-bit), 20 pins Connector
Voltage Supply: 3.3V (Typical)
Max. Ratings:
- Storage Temperature: -30 ~ 80 °C
- Operating Temperature: -20 ~ 70 °C
This LCD panel is designed for industrial applications with an 8.4-inch diagonal size and SVGA resolution. It offers a moderate level of luminance and contrast. It uses a TN panel with a normal white (black-on-white) configuration for transmissive display. It does not include a touchscreen and uses LVDS for data transmission. The operating temperature range is from -20 to 70 °C, and it can be stored in temperatures ranging from -30 to 80 °C.
