Content last revised on October 14, 2024
- Brand: AMPIRE

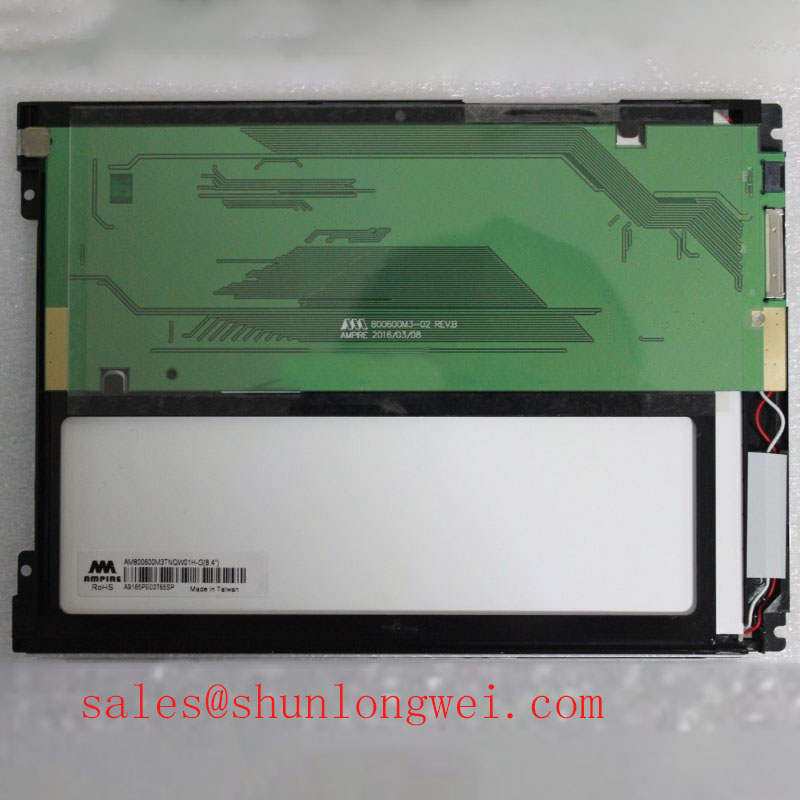

- Model: AM-800600M3TNQW-01H-G
- Diagonal Size: 8.4 inches
- Panel Type: a-Si TFT-LCD, LCM
- Resolution: 800 x 600 (SVGA)
- Pixel Format: RGB Vertical Stripe
- Active Area: 170.4 (W) x 127.8 (H) mm
- Bezel Opening: 174.15 (W) x 131.2 (H) mm
- Outline Dimensions: 203 x 145.5 x 8.3 mm (H x V x D)
- Treatment: Not specified
- Luminance: 450 cd/m² (Typical)
- Contrast Ratio: 600:1 (Typical)
- Viewing Angle: 75/75/60/70 (Typical, CR≥10) Left / Right / Up / Down
- Response Time: 8 (Typical, Tr+Td) ms
- Good View at: Not specified
- Work Mode: TN (Twisted Nematic), Normally White, Transmissive
- Color Depth: 262K
- Backlight: 12S4P WLED (White LED), 50,000 hours, With LED Driver
- Mass: 280g
- Used for: Industrial applications
- Refresh Rate: 60Hz
- Touchscreen: Not included
- Signal Type: LVDS (1 channel, 6-bit), 20 pins Connector
- Voltage Supply: 3.3V (Typical)
- Max. Ratings:
- Storage Temperature: -30 ~ 80 °C
- Operating Temperature: -20 ~ 70 °C
