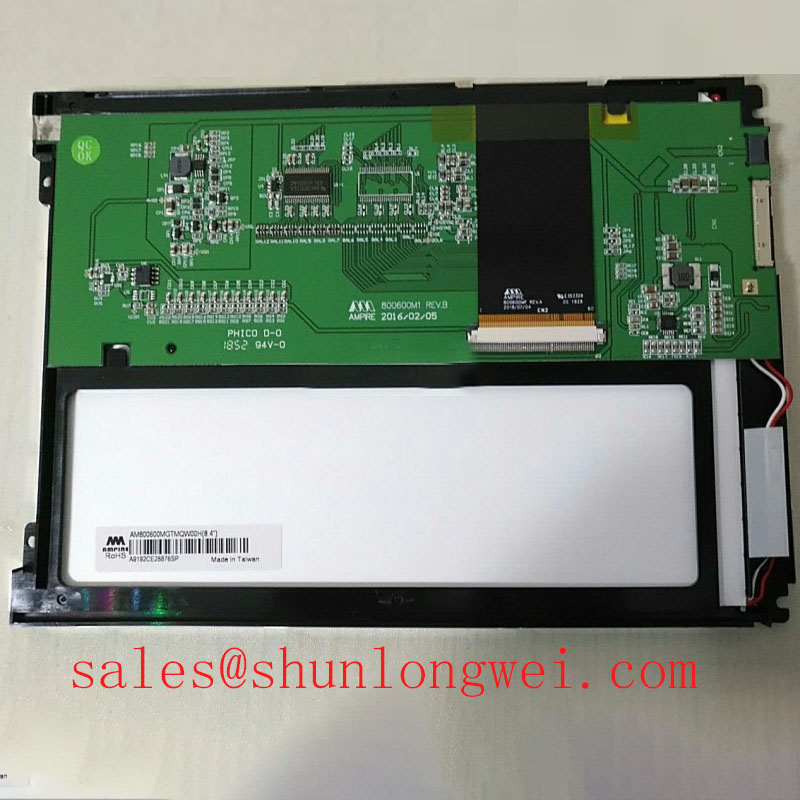

- Brand: AMPIRE
- Model: AM-800600MGTMQW-00H
- Diagonal Size: 8.4 inches
- Panel Type: a-Si TFT-LCD, LCM
- Resolution: 800 x 600 (SVGA)
- Pixel Format: RGB Vertical Stripe
- Active Area: 170.4 (W) x 127.8 (H) mm
- Bezel Opening: 174.15 (W) x 131.2 (H) mm
- Outline Dimensions: 203 (W) x 145.5 (H) x 10.9 (D) mm
- Treatment: Surface treatment not specified
- Luminance: 350 cd/m² (Typical)
- Contrast Ratio: 600:1 (Typical)
- Response Time: 8 (Typical, Tr+Td) ms
- Display Mode: TN (Twisted Nematic), Normally White, Transmissive
- Support Color: 16.7M colors
- Mass: To Be Determined (TBD)
- Refresh Rate: 60Hz
- Backlight: 12S4P WLED (White LED), with LED Driver, rated for 50,000 hours
- Touchscreen: Without
- Application: Industrial use
- Signal Interface: LVDS (1 channel, 8-bit), 20 pins Connector
- Voltage Supply: 3.3V (Typical)
- Operating Temperature: -20 ~ 70 °C
- Storage Temperature: -30 ~ 80 °C
