Content last revised on November 11, 2024

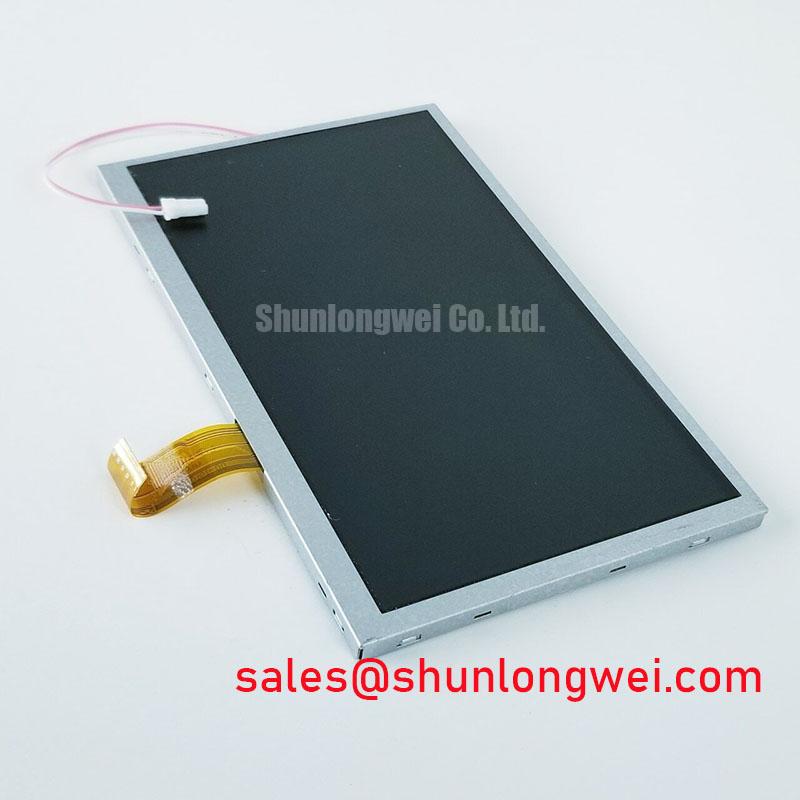

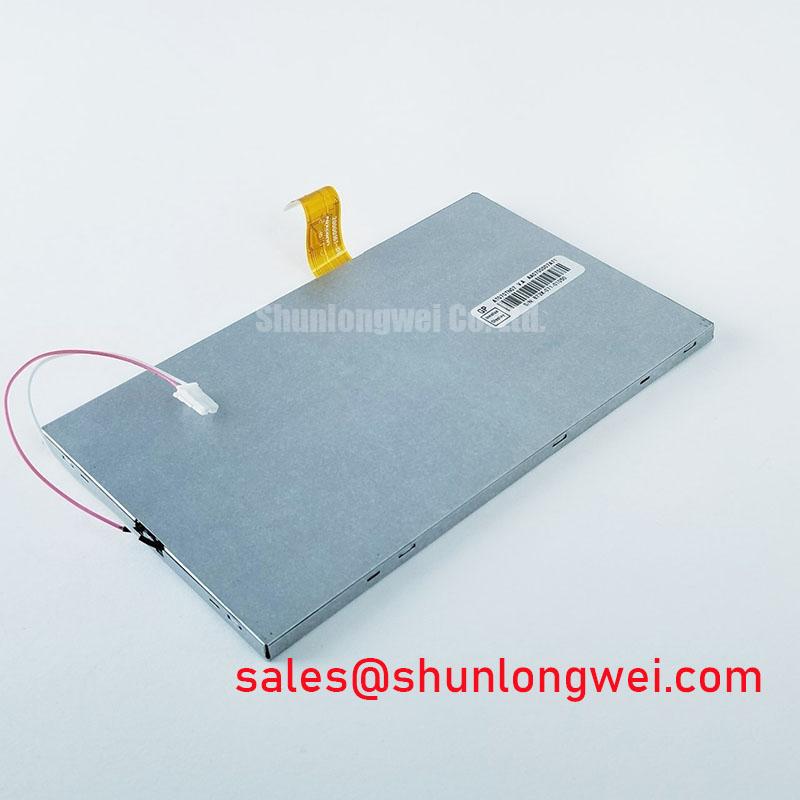

Brand Innolux
Model AT070TN07 V.1
Diagonal Size 7.0 inch
Type a-Si TFT-LCD , LCM
Pixel Format 480(RGB)×234 76PPI
Configuration RGB Vertical Stripe
Active Area 154.08(H)×86.58(V) mm
Outline Dim. 164.9(H)×100(V) ×6(D) mm
Bezel Area 156.5(H)×89.00(V) mm
Treatment Antiglare
Luminance 250 cd/m² (Typ.)
Contrast Ratio 300:1 (Typ.) (TM)
View Direction 6 o'clock
Response Time 15/20 (Typ.)(Tr/Td)
Viewing Angle 60/60/40/60 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode TN, Normally White, Transmissive
Support Color Full color
Light Source WLED [3S9P] , 20K hours , W/O Driver
Weight 167g (Typ.)
Designed For Automotive Display Digital Photo Frame Portable DVD Player Video Door Phone
Touch Panel Without
Interface Type TFT Specific Analog RGB , 26 pins FPC
Power Supply 5.0/5.0/15.0/-10.0 (Typ.)(VCC/AVDD/VGH/VGL)
Environment Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C
