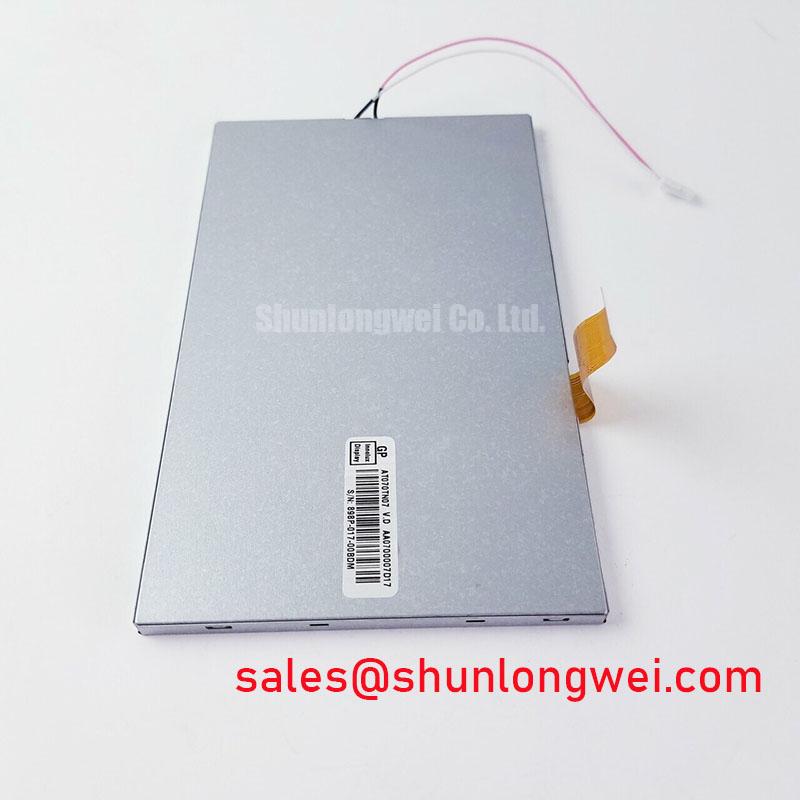

Panel Brand Innolux
Panel Model AT070TN07 V.2
Panel Size 7.0 inch
Panel Type a-Si TFT-LCD, LCM
Resolution 480(RGB)×234, 76PPI
Pixel Format RGB Vertical Stripe
Display Area 154.08(W)×86.58(H) mm
Bezel Opening 156.5(W)×89.00(H) mm
Outline Size 164.9(W)×100(H) ×6(D) mm
Surface Antiglare
Brightness 500 cd/m² (Typ.)
Contrast Ratio 300:1 (Typ.) (TM)
Viewing Angle 60/60/40/60 (Typ.)(CR≥10) Left / Right / Up / Down
Display Mode TN, Normally White, Transmissive
Best View on 6 o'clock
Response Time 15/20 (Typ.)(Tr/Td)
Display Colors Full color
Lamp Type 3S9P WLED , 20K hours , Without Driver
Touch Screen Without
Panel Weight 167g (Typ.)
Application Automotive Display
Signal Interface TFT Specific Analog RGB , 26 pins FPC
Input Voltage (3.3/5.0)/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL)
Environment Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C
