Content last revised on March 25, 2025

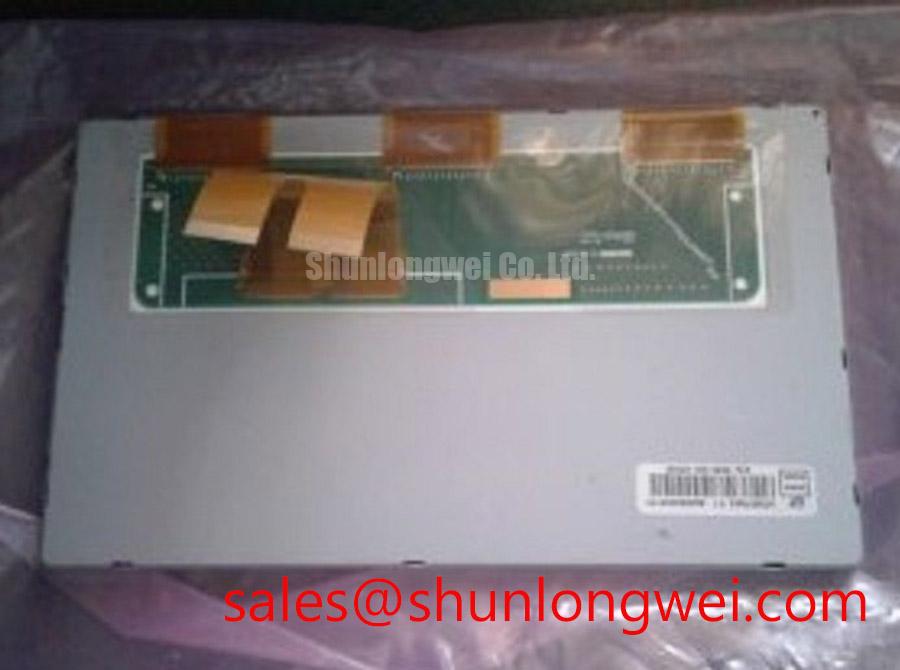

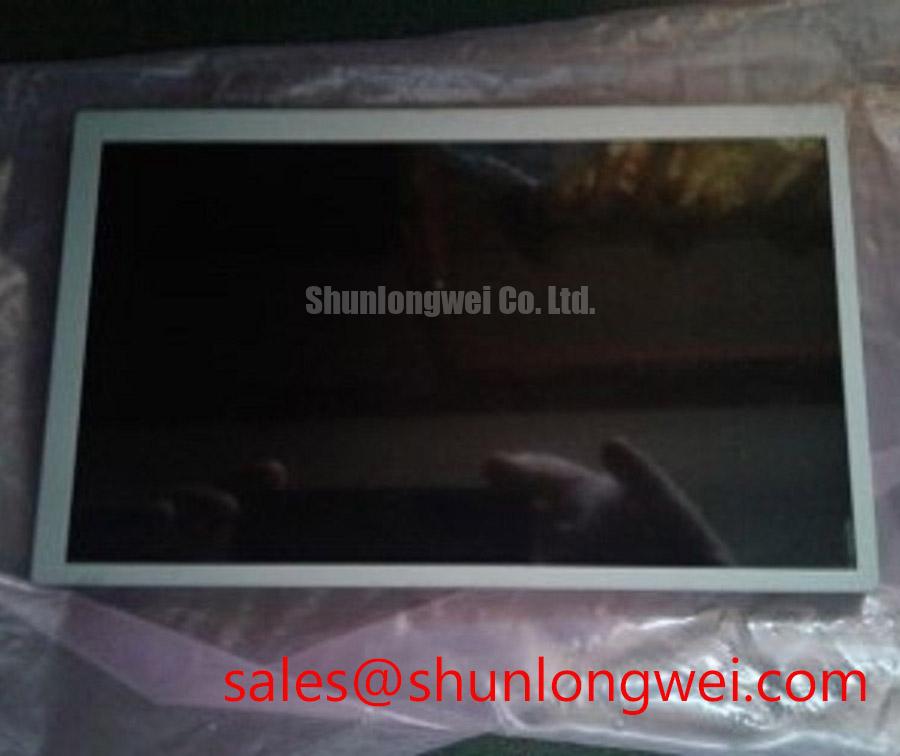

Panel Brand: Innolux
Panel Model: AT080TN03 V.1
Panel Size: 8.0 inch
Panel Type: a-Si TFT-LCD, LCM
Resolution: 800(RGB)×480 , WVGA Pixel Format RGB Vertical Stripe
Display Area:176.64(W)×99.36(H) mm
Bezel Opening:180.1(W)×103.4(H) mm
Outline Size: 192.8(W)×116.9(H) mm SurfaceAntiglare
Brightness: 250 cd/m² (Typ.) Contrast Ratio 300:1 (Typ.) (TM)
Viewing Angle: 65/65/45/65 (Typ.)(CR≥10) Left / Right / Up / Down
Display ModeTN: , Normally White, Transmissive
Best View on: 6 o'clock Response Time15/20 (Typ.)(Tr/Td)
Display Colors: 262K Lamp Type3S9P WLED , 20K hours , Without Driver
Frequency - Touch Screen Without
Signal TypeParallel RGB (1 ch, 6-bit) , 60 pins FPC
Voltage Supply3.3/10.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL)
Max. RatingsStorage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C
