Panel Brand Innolux

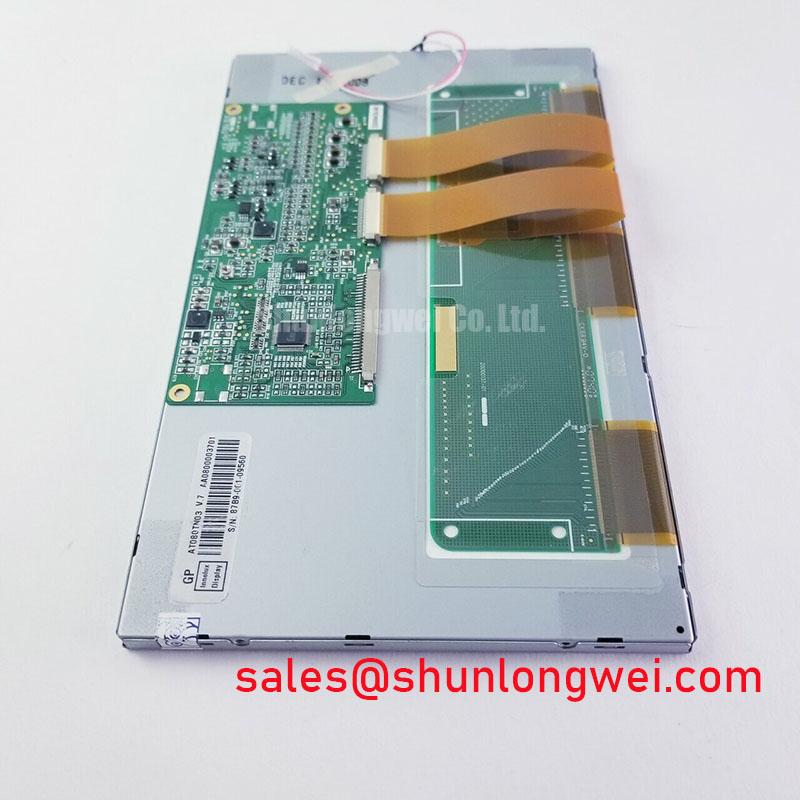

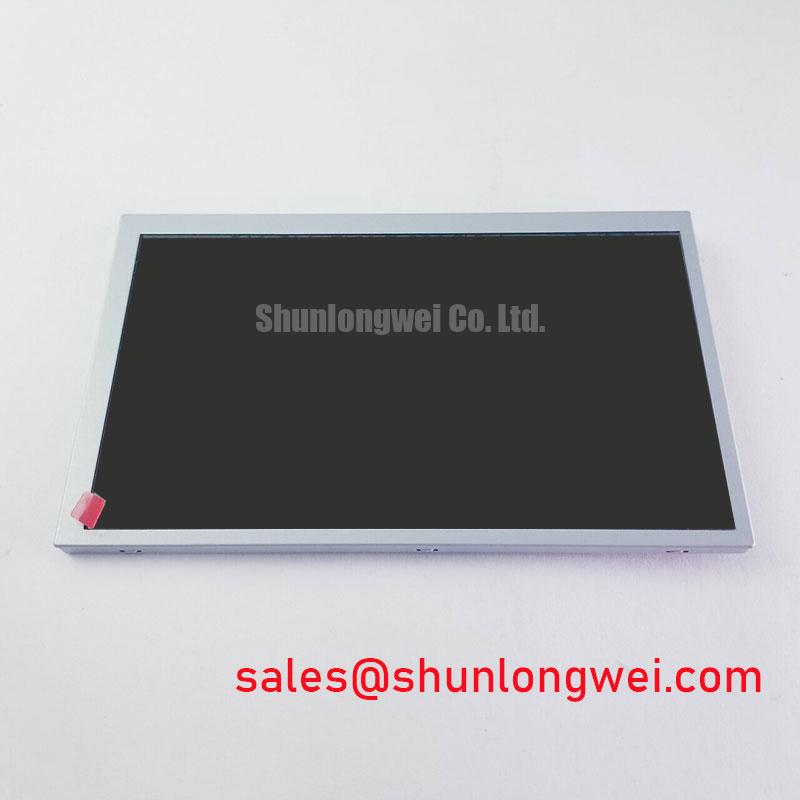

Panel Model AT080TN03 V.8
Panel Size 8.0 inch
Panel Type a-Si TFT-LCD, LCM
Resolution 800(RGB)×480, WVGA, 116PPI
Pixel Format RGB Vertical Stripe
Display Area 176.64(W)×99.36(H) mm
Bezel Opening 179.64(W)×102.96(H) mm
Outline Size 192.8(W)×116.9(H) ×6(D) mm
Surface Antiglare
Brightness 250 cd/m² (Typ.)
Contrast Ratio 300:1 (Typ.) (TM)
Viewing Angle 65/65/45/65 (Typ.)(CR≥10) Left / Right / Up / Down
Display Mode TN, Normally White, Transmissive
Best View on 6 o'clock
Response Time 15/20 (Typ.)(Tr/Td)
Display Colors 16.7M
Lamp Type WLED , 20K hours , With LED Driver
Touch Screen Without
Panel Weight 0.15Kgs
Application Digital Photo Frame Portable DVD Player
Signal Interface LVDS (1 ch, 8-bit) , 30 pins Connector
Input Voltage 3.3V (Typ.)
Environment Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C
