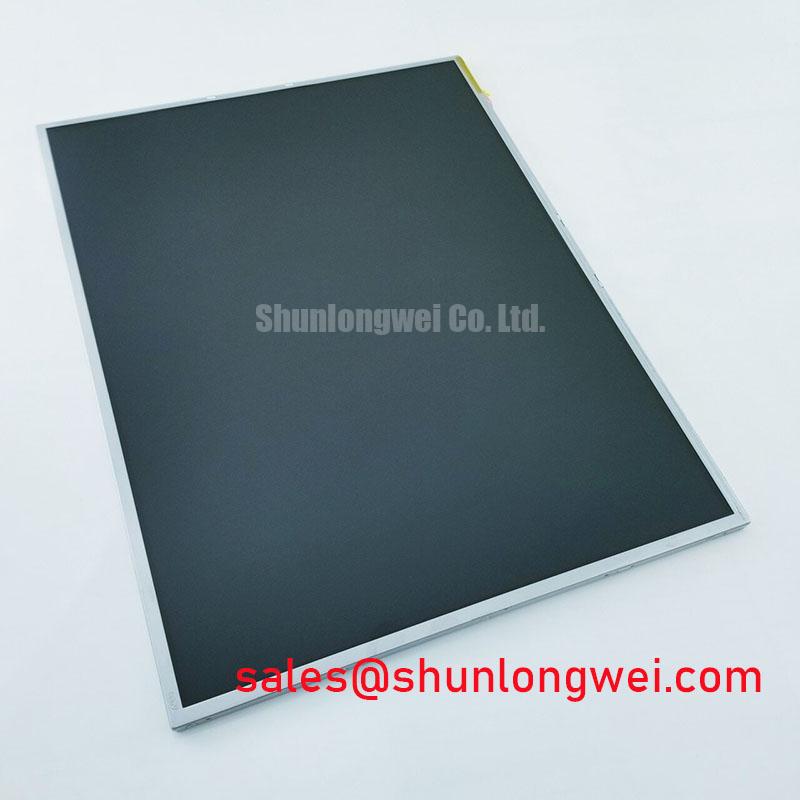

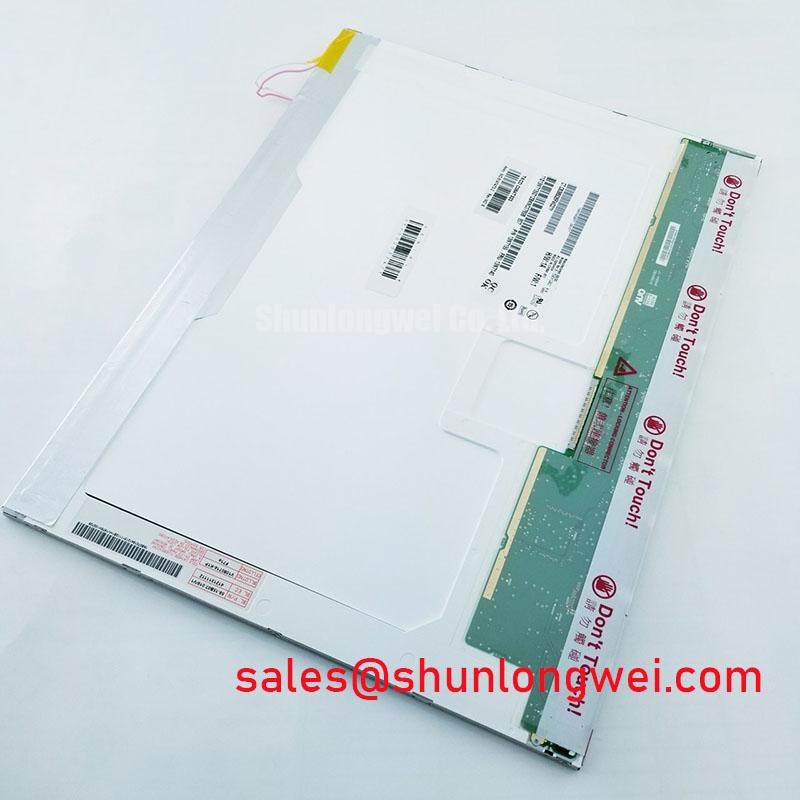

AUO B150XG02 V3 LCD Display

Manufacturer AUO

Model Name B150XG02 V3 (AUO0F07)

Screen Size 15.0 inch

Screen Type LCM,   a-Si TFT-LCD

Pixel Number 1024(RGB)×768   (XGA)  85PPI

Arrangement RGB Vertical Stripe

Active Area(mm) 304.128 × 228.096 (H×V)

Outline(mm) 317.3 × 253.75 × 6.4 (H×V×D)

Bezel Area(mm) 307.53 × 231.5 (H×V)

Treatment Hard coating (3H)

Luminance 180 cd/m² (Typ.)

Contrast Ratio 300 : 1 (Typ.) (TM)

Viewing Angle 40/40/10/30 (Min.)(CR≥10) Left / Right / Up / Down

Response 16/9 (Typ.)(Tr/Td) ms

Good View at 6 o'clock

Work Mode TN, Normally White, Transmissive

Color Depth 262K   42% NTSC

Backlight 1 pcs CCFL , No Driver

Outline Shape Wedge (PCBA Bent, T≥5.2mm)

Used for Laptop

Refresh Rate 60Hz

120Hz (60HZ Input) : Embedded MEMC Circuit

120Hz+120Hz : 120Hz Panel+120Hz Backlight

240Hz (60HZ Input) : Embedded MEMC Circuit

Touchscreen Without

Signal Type LVDS (1 ch, 6-bit) , Connector 30 pins

Voltage Supply 3.3V (Typ.)

Max. Ratings Storage Temp.: -25 ~ 65 °C    Operating Temp.: 0 ~ 50 °C

B150XG02 V3 inverter, B150XG02 V3 power supply, B150XG02 V3 electronic board, B150XG02 V3 VGA board, B150XG02 V3 touchscreen available.
