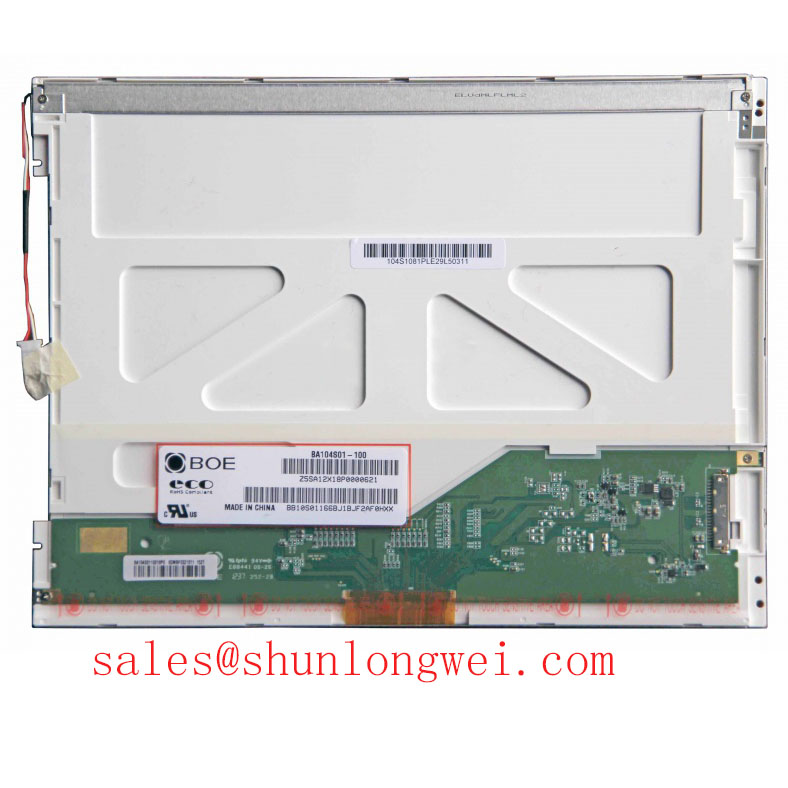

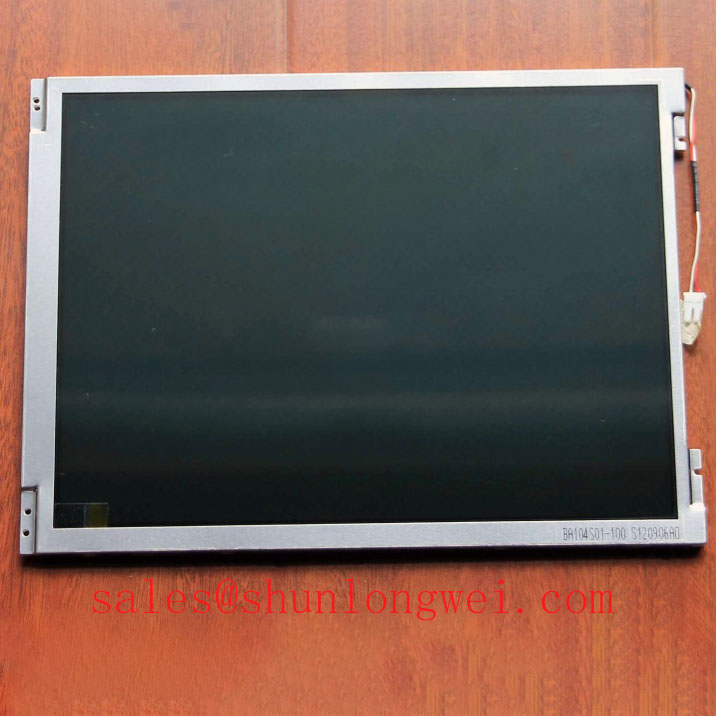

BOE BA104S01-100

BA104S01-100 BOE 10.4 inch LCM 800×600 500 800:1 70/70/60/70 262K/16.7M WLED LVDS

· Categories: LCD Display
· Manufacturer: BOE
· Price:
Price Range: US$ 50 - US$ 200 (Estimated)
Submit RFQ to Get Price
· Date Code: Please Verify on Quote
. Available Qty: 320
90-Day Warranty
Global Shipping
100% Tested
Email: [email protected]
Whatsapp: 0086 189 2465 1869

Content last revised on March 9, 2024

  • Brand: BOE
  • Model: P/N BA104S01-100
  • Diagonal Size: 10.4 inch
  • Panel Type: a-Si TFT-LCD, LCM (Liquid Crystal Module)
  • Resolution: 800(RGB)×600, SVGA, 96PPI Pixel Format, RGB Vertical Stripe
  • Active Area: 211.2(W)×158.4(H) mm
  • Bezel Opening: 215.0(W)×162.0(H) mm
  • Outline Size: 236(W)×176.9(H)×5.9(D) mm
  • Treatment: Clear
  • Luminance: 500 cd/m² (Typical)
  • Contrast Ratio: 800:1 (Typical) (TM)
  • Viewing Angle: 70/70/60/70 (Typical) (CR≥10) Left / Right / Up / Down
  • Response: 30 ms (Typical) (Tr+Td)
  • Good View at: 12 o'clock
  • Work Mode: TN (Twisted Nematic), Normally White, Transmissive
    • IPS Family: AAS, ADS, AHVA, FFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich
    • VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA
  • Color Depth: 262K/16.7M, 50% NTSC
  • Backlight: 6S6P WLED, 50K hours, No Driver
  • Mass: 288g (Typical)
  • Used for: Industrial Medical Imaging
  • Refresh Rate:
    • 60Hz
    • 120Hz (60HZ Input): Embedded MEMC Circuit
    • 120Hz+120Hz: 120Hz Panel+120Hz Backlight
    • 240Hz (60HZ Input): Embedded MEMC Circuit
  • Touchscreen: Without
  • Signal Type: LVDS (Low Voltage Differential Signaling), 1 ch (channel), 6/8-bit, 20 pins Connector
  • Voltage Supply: 3.3V (Typical)
  • Max. Ratings:
    • Storage Temperature: -30 ~ 80 °C
    • Operating Temperature: -20 ~ 70 °C
