Sell BA104S01-200 BOE LCD Display

#BOE, #BA104S01_200, #LCD_Display, #LCD, BA104S01-200 BOE 10.4 inch LCM 800×600 300 800:1 70/70/60/70 262K/16.2M WLED LVDS

· Categories: LCD Display

· Manufacturer: BOE

· Price: US$

· Date Code: 2023+

. Available Qty: 260

Pin It

Email: sales@shunlongwei.com

Whatsapp: 0086 189 2465 1869

Tags: 10.4 inch 800:1 800x600 ba104s01 boe LCM

-- OR --

BA104S01-200 Specification

Sell BA104S01-200, #BOE #BA104S01-200 Stock, BA104S01-200 BOE 10.4 inch LCM 800×600 300 800:1 70/70/60/70 262K/16.2M WLED LVDS, #LCD_Display, #LCD, #BA104S01_200

Email: sales@shunlongwei.com
URL: https://www.slw-ele.com/ba104s01-200.html

Brand: BOE

Model: P/N BA104S01-200

Compatible Model 1: Not specified

Diagonal Size: 10.4 inch

Panel Type: a-Si TFT-LCD, LCM (Liquid Crystal Module)

Resolution: 800(RGB)×600, SVGA, 96PPI Pixel Format, RGB Vertical Stripe

Active Area: 211.2(W)×158.4(H) mm

Bezel Opening: 215.0(W)×162.0(H) mm

Outline (mm): 236 × 176.9 × 5.9 (H×V×D)

Treatment: Clear

Luminance: 300 cd/m² (Typical)

Contrast Ratio: 800:1 (Typical) (TM)

Viewing Angle: 70/70/60/70 (Typical) (CR≥10) Left / Right / Up / Down

Response Time: 30 ms (Typical) (Tr+Td)

Good View at: 12 o'clock

Work Mode: TN (Twisted Nematic), Normally White, Transmissive

Color Depth: 262K/16.2M, 50% NTSC

Backlight: 6S4P WLED (White Light Emitting Diode), 30K hours, No Driver

Mass: 290g (Typical)

Used for: Industrial Medical Imaging

Refresh Rate: 60Hz

Touchscreen: Without

Signal Type: LVDS (Low Voltage Differential Signaling), 1 ch (channel), 6/8-bit, 20 pins Connector

Voltage Supply: 3.3V (Typical)

Max. Ratings:
Storage Temperature: -30 ~ 80 °C
Operating Temperature: -20 ~ 70 °C

Shunlongwei Co. ltd.

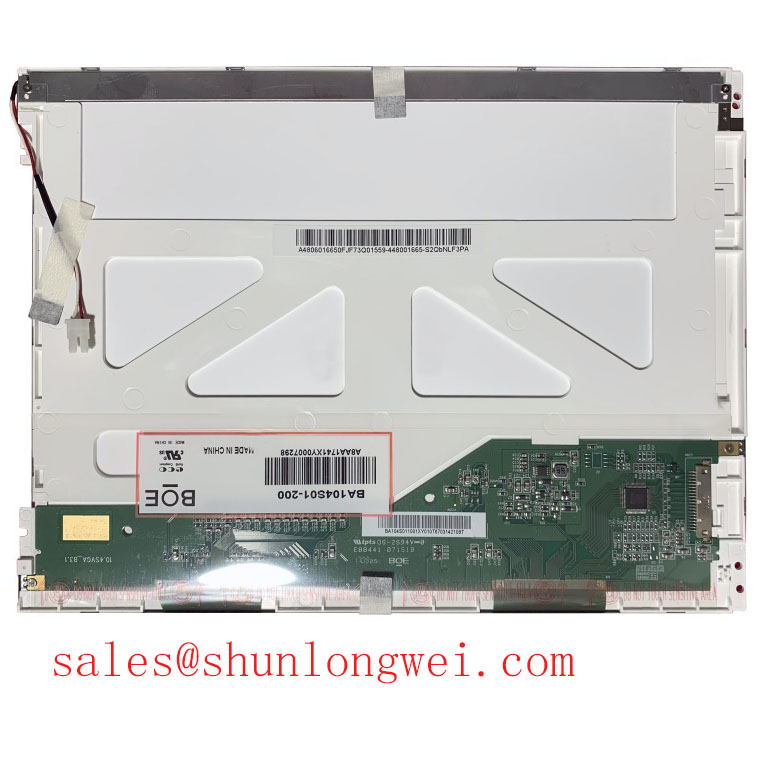

BOE BA104S01-200 LCD Display

Contact us for Price!

BA104S01-200 Specification
