Content last revised on December 9, 2023

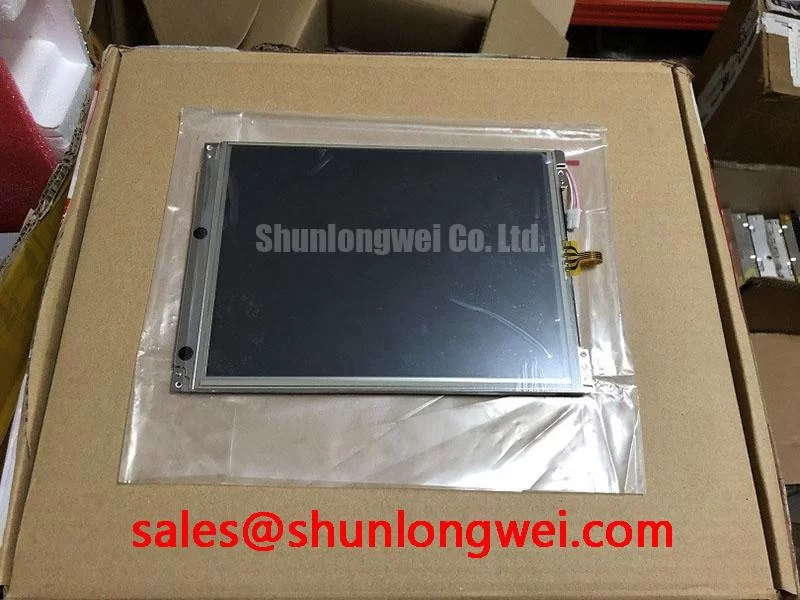

Brand CPT Model CLAA150XP01PE Diagonal Size 15.0 inch Type a-Si TFT-LCD, LCM Pixel Format 1024(RGB)×768 [XGA] 85PPI Configuration RGB Vertical Stripe Active Area 304.128(H)×228.096(V) mm Outline Dim .326.5(H)×253.5(V) ×11.5(D) mm Bezel Area 307.9(H)×231.3(V) mm Luminance 300 cd/m² (Typ.) Contrast Ratio700:1 (Typ.) (TM) View Direction 6 o'clock Response Time 2/6 (Typ.)(Tr/Td) Viewing Angle 75/75/70/70 (Typ.)(CR≥10) Left / Right / Up / Down Operating Mode TN, Normally White, Transmissive Support Color 16.2M 65% NTSC Light Source CCFL [2 pcs] , 50K hours , W/O Driver Weight 1.30Kgs (Typ.) Designed For Desktop Monitor Frame Rate 60Hz 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit Touch Panel Without Interface Type LVDS (1 ch, 8-bit) , 20 pins Connector Power Supply 3.3V (Typ.) Environment Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C CLAA150XP01PE inverter, CLAA150XP01PE power supply, CLAA150XP01PE electronic board, CLAA150XP01PE VGA board, CLAA150XP01PE touchscreen available.
