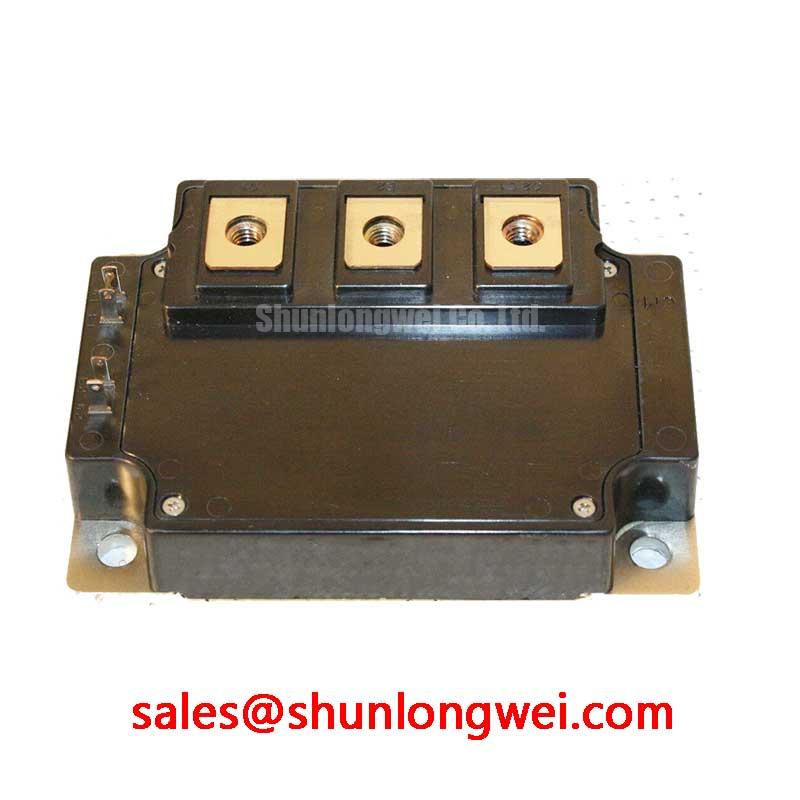

Mitsubishi CM300DU-24H | The Benchmark for Industrial Reliability in Power Conversion
The Mitsubishi CM300DU-24H is not just an IGBT module; it's a testament to industrial-grade endurance. This 1200V, 300A dual module has earned its place as a cornerstone component in high-power applications where uptime and resilience are paramount. Configured as a half-bridge topology, the CM300DU-24H provides a robust building block for three-phase inverters, motor controllers, and large-scale power supplies, delivering consistent performance in environments that punish lesser components.
Technical Deep Dive: The Engineering Behind Unmatched Durability
-
Proven Non-Punch Through (NPT) IGBT Technology: At the heart of the CM300DU-24H lies a classic Non-Punch Through (NPT) IGBT die. Unlike more recent, faster-switching technologies that prioritize minimal losses, NPT technology is engineered for ruggedness.
Application Value: This architecture provides a wider Safe Operating Area (SOA) and a superior short-circuit withstand time. For your system, this means greater tolerance to voltage spikes and fault conditions common in industrial settings, ultimately reducing field failures and simplifying the design of protection circuits. -

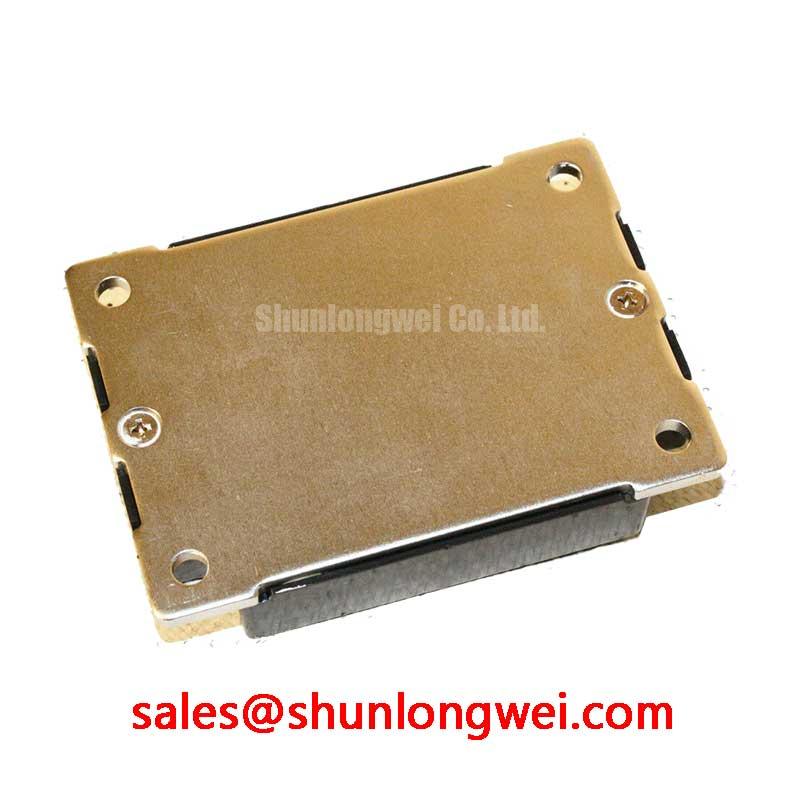

Industry-Standard Packaging with Superior Thermal Path: The module is housed in a standard package renowned for its mechanical strength and ease of assembly. It features an isolated copper baseplate, which creates a highly effective, low-resistance thermal path to the heatsink.
Application Value: Efficient heat dissipation is critical for reliability. This proven thermal design prevents hot spots on the IGBT and diode chips, ensuring the module operates within its specified temperature limits even under heavy cyclic loads. This leads directly to a longer operational lifespan and predictable system performance.
Application Scenarios Where the CM300DU-24H Excels
The true value of a component is revealed in its application. The Mitsubishi CM300DU-24H is the definitive choice for systems where failure is not an option:
- High-Power Motor Drives: For AC induction motors in manufacturing, pumps, and fans, the module's ability to handle high inrush currents and absorb regenerative energy makes it a reliable workhorse. Its resilience minimizes downtime in critical production lines.
- Welding Equipment: The harsh electrical environment of arc welding, with its rapid current pulses and potential for short-circuits, demands components that can withstand abuse. The robust SOA of the CM300DU-24H provides the necessary margin for survival, ensuring consistent weld quality.
- Uninterruptible Power Supplies (UPS): In data centers and medical facilities, the transition to battery power must be flawless. This module offers the steadfast switching performance required, guaranteeing power continuity when it matters most.
- Legacy System Repair and Retrofit: When repairing older industrial equipment, matching the original component's electrical and mechanical characteristics is crucial. The CM300DU-24H often serves as a direct, reliable replacement, extending the life of valuable capital equipment.
Key Technical Parameters
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (Vces) | 1200V |
| Continuous Collector Current (Ic) @ Tc=80°C | 300A |
| Collector-Emitter Saturation Voltage (Vce(sat)) @ Ic=300A | 2.7V (Typ.) |
| Package Type | Mitsubishi H-Series Standard Module |
For a complete list of parameters, please refer to the official CM300DU-24H Datasheet.
Product Comparison & Selection Advice
When selecting a power module, it's a game of trade-offs. How does the CM300DU-24H compare to a modern, 7th-generation Trench Field-Stop (TFS) IGBT?
- Mitsubishi CM300DU-24H: Your choice for maximum ruggedness and cost-effectiveness. Its higher collector-emitter saturation voltage (Vce(sat)) means slightly higher conduction losses, making it ideal for low-to-medium frequency applications (typically
