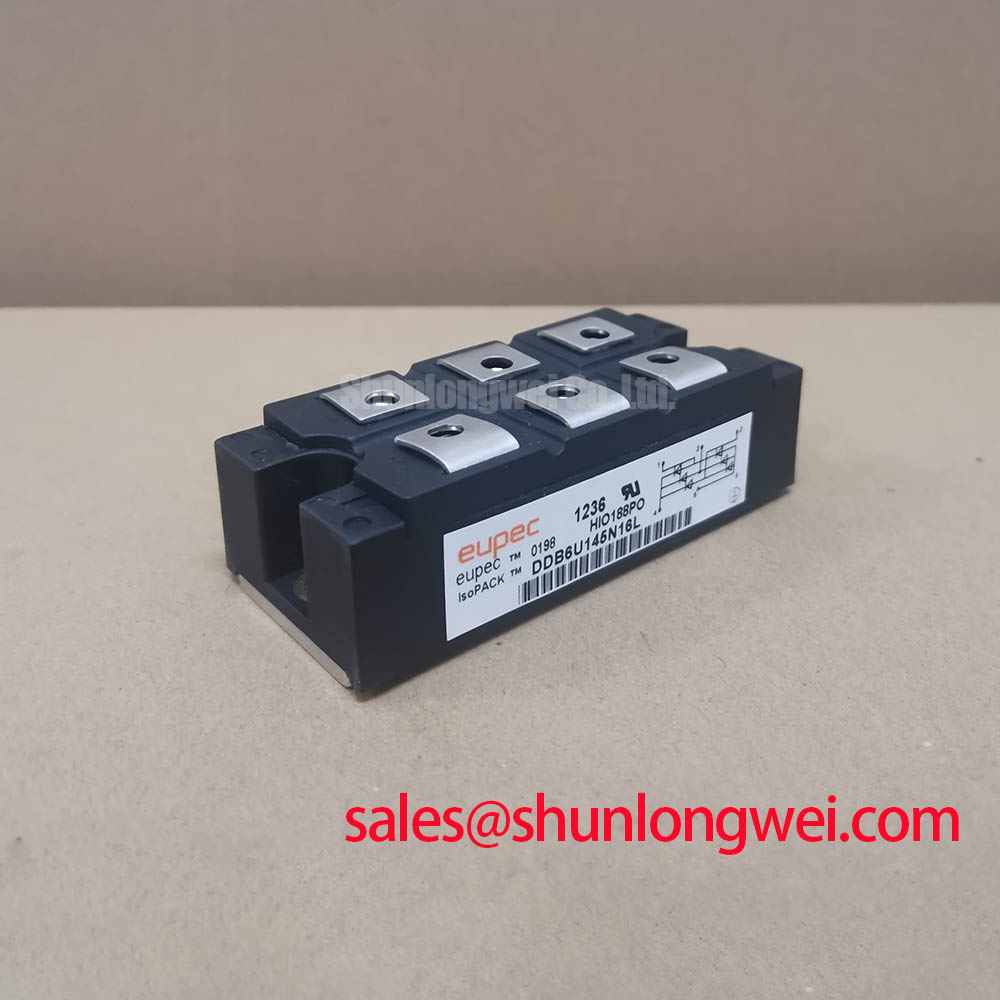

Infineon DDB6U145N16L IGBT Module

Infineon DDB6U145N16L | Robust 1600V Rectifier Bridge for High-Power Systems

The Infineon DDB6U145N16L is a high-reliability, three-phase uncontrolled rectifier bridge designed to form the bedrock of demanding power conversion systems. Engineered for simplicity and endurance, this module provides a straightforward yet powerful solution for converting AC mains voltage into a stable DC bus, setting the stage for efficient downstream power management by components like inverters and DC-DC converters.

• Brand: Infineon
• Model: DDB6U145N16L
• Core Function: 145A, 1600V Three-Phase Diode Rectifier Bridge
• Key Benefit: Provides a rugged, thermally efficient, and easy-to-integrate front-end AC-to-DC conversion for industrial applications.
• Typical Applications: AC Motor Drives, Uninterruptible Power Supplies (UPS), Welding Equipment, Industrial Power Supplies.

Technical Deep-Dive: Built for Industrial Reliability

The performance of any power system begins at its input stage. The DDB6U145N16L excels here by focusing on two critical areas that directly impact system longevity and ease of manufacturing.

• High Blocking Voltage (1600V)

  Principle: The module’s diodes are rated for a repetitive peak reverse voltage (VRRM) of 1600V. This provides a substantial safety margin for applications running on 380V, 480V, or even higher AC lines. Application Value: This high voltage rating makes the system inherently more resilient to grid fluctuations, transient voltage spikes, and line surges. For engineers designing equipment for deployment in environments with unstable power grids, using the Infineon DDB6U145N16L means enhanced system durability and a reduced likelihood of field failures due to overvoltage events.

• Industry-Standard Housing with Insulated Baseplate

  Principle: The DDB6U145N16L utilizes a standard industrial package with an integrated IGBT insulation layer (typically Aluminum Oxide, Al2O3) between the semiconductor elements and the copper baseplate. Application Value: This design drastically simplifies the assembly process. System builders can mount the module directly to a heatsink without needing fragile and often inconsistent thermal insulating pads. This not only saves assembly time and reduces bill-of-materials complexity but also ensures superior and repeatable thermal conductivity, leading to more effective heat dissipation and stable operating temperatures.

The Foundation of High-Performance Power Conversion

A stable DC bus is non-negotiable for precise power control. The DDB6U145N16L delivers this stability across a range of challenging applications by creating a reliable DC link that feeds the main power stage.

• AC Motor Drives: In a variable frequency drive (VFD), the quality of the DC bus directly affects the performance of the inverter. This module provides a stiff, reliable DC voltage, allowing the IGBT in the motor drive to switch cleanly and deliver precise torque and speed control with minimal ripple.
• Uninterruptible Power Supplies (UPS): For a UPS, the input rectifier must be unconditionally reliable. The DDB6U145N16L ensures a consistent DC supply for charging batteries and powering the inverter, forming the first line of defense against AC mains failure.
• Welding Equipment: The high-current and robust nature of this rectifier bridge makes it ideal for the input stage of inverter-based welders, which demand a resilient power source capable of handling the pulsating load of the welding arc.
• Industrial Battery Chargers: Efficiently converting AC input to a controlled DC voltage is the primary function of a high-power battery charger. This module provides the essential front-end rectification with low forward voltage drop, minimizing initial power loss and improving overall charging efficiency.

Key Technical Specifications

For complete details, please refer to the official DDB6U145N16L Datasheet.

Why Choose a Dedicated Rectifier Module?

Design engineers often face a choice: use a dedicated rectifier module like the DDB6U145N16L or an integrated Converter-Inverter-Brake (CIB) module. While CIB modules offer compactness, a dedicated bridge provides critical advantages in thermal management. By separating the rectifier stage from the inverter stage, the significant heat generated by the diodes does not directly impact the thermally sensitive IGBTs. This decoupling allows for more optimized and robust thermal design, potentially increasing the lifetime of the entire power converter. For systems where reliability and thermal performance are paramount, the DDB6U145N16L is a strategically superior choice.

Once your DC bus is established, you can Explore More IGBT Modules to complete your inverter design. For specific application advice, feel free to contact our technical team.
