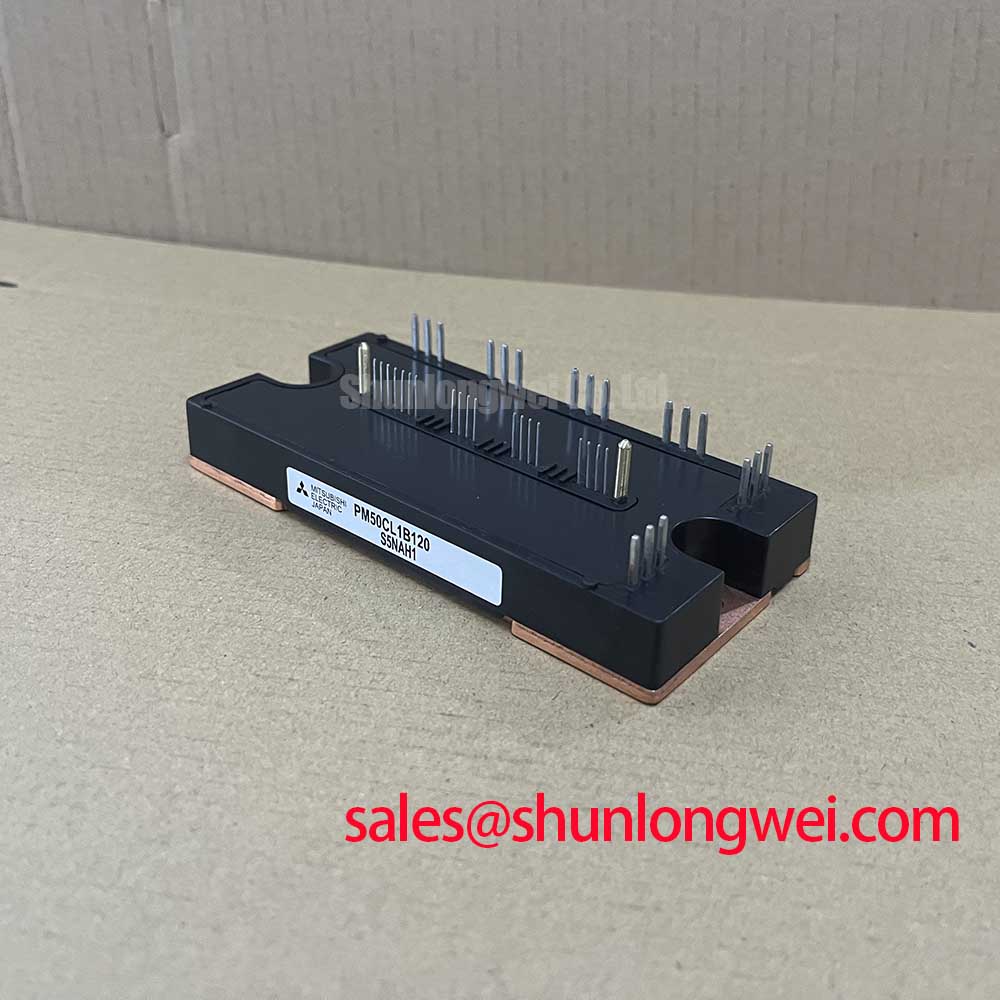

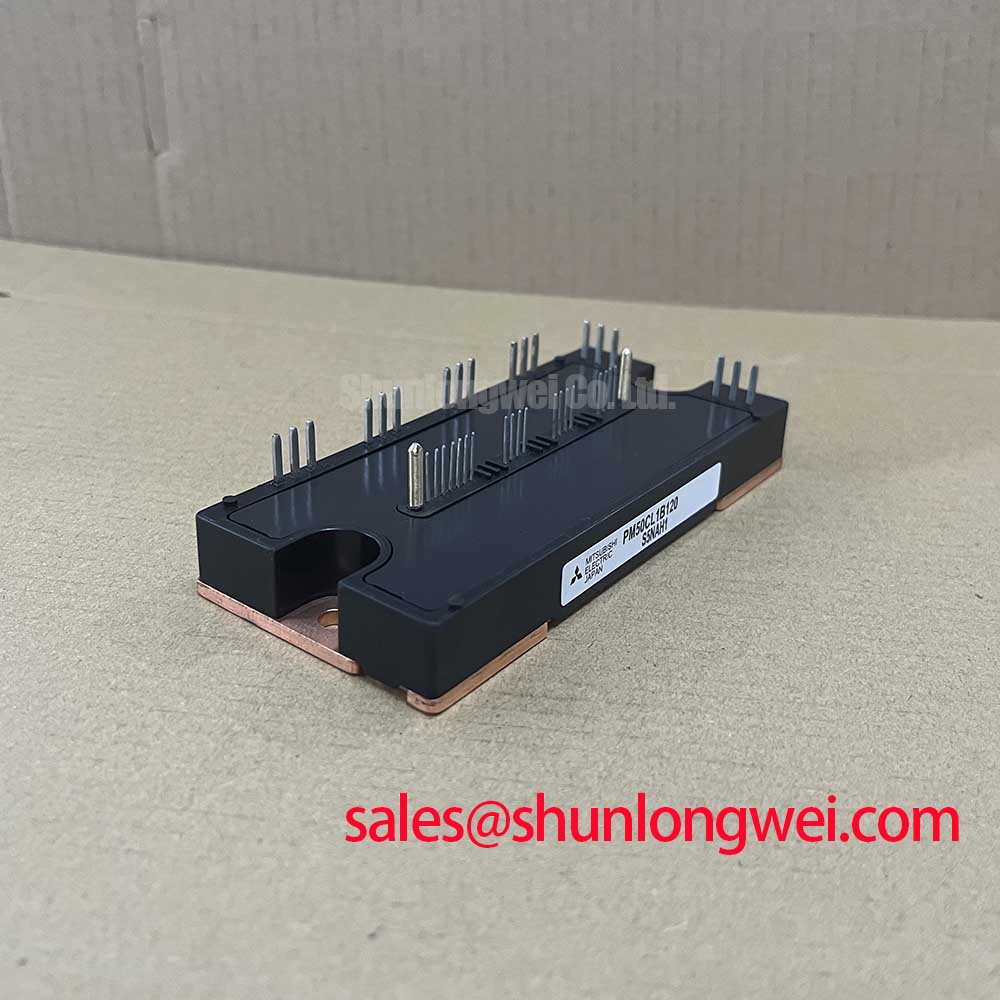

Mitsubishi PM50CL1B120 | Integrated IPM for High-Reliability Motor Control
The Mitsubishi PM50CL1B120 is a C-Series Intelligent Power Module (IPM) designed to streamline and fortify low-to-medium power motion control systems. It is not merely a component; it is an engineered subsystem that integrates six 1200V/50A IGBTs in a three-phase inverter configuration with the sophisticated gate drivers and protection circuits required for robust operation. This level of integration directly addresses the core engineering challenges of minimizing design complexity, improving system reliability, and accelerating time-to-market.
Key Design Advantages
- All-in-One Power Stage: Integrates a 1200V, 50A three-phase IGBT inverter bridge with optimized low-power gate drive circuitry.
- Comprehensive On-Board Protection: Features critical protection functions including Short-Circuit (SC), Over-Current (OC), Over-Temperature (OT), and control supply Under-Voltage (UV) lockout.
- Superior Thermal Performance: Built on an insulated metal baseplate, ensuring efficient heat dissipation and stable performance under demanding thermal loads.
- Simplified System Design: Drastically reduces PCB complexity and component count, leading to smaller, more reliable, and cost-effective end products.
Application Scenarios & Engineering Value
The PM50CL1B120 IPM excels in applications where precision, reliability, and a compact form factor are non-negotiable. Its architecture provides tangible benefits across several key domains:
- Industrial Servo Drives: In high-performance robotic servo drives and CNC machine tools, the module's integrated drivers and protection provide the fast, clean switching and fault tolerance necessary for precise position and torque control. The tight coupling of driver and IGBT minimizes parasitic inductance, reducing voltage overshoots and improving system stability.
- General Purpose Inverters: For small to medium-sized Variable Frequency Drives (VFDs), the PM50CL1B120 simplifies the entire design process. Engineers can bypass the complex and time-consuming task of designing, testing, and qualifying a discrete gate drive circuit, focusing instead on system-level firmware and control logic.
- Commercial HVAC Systems: The module’s robustness and integrated thermal management are ideal for compressor and fan motors in HVAC applications. The built-in protection prevents failures due to locked rotors or grid anomalies, enhancing the longevity of the entire system.
Key Parameter Overview
This table provides a high-level summary of the Mitsubishi PM50CL1B120's critical electrical characteristics for initial design assessment. For comprehensive design-in data, always consult the official product datasheet.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCES) | 1200 V |
| Collector Current (IC) | 50 A |
| Collector-Emitter Saturation Voltage (VCE(sat)) (Typ. @ IC=50A) | 2.2 V |
| Isolation Voltage (Viso) (AC, 1 min.) | 2500 Vrms |
| Maximum Junction Temperature (Tj(max)) | 150 °C |
| Short-Circuit Withstand Time (tsc) | ≥ 10 µs |
Technical Deep Dive: What Sets the PM50CL1B120 Apart
The value of an IPM extends beyond its listed specifications. It lies in the synergy between its integrated components. The PM50CL1B120 leverages Mitsubishi's CSTBT™ (Carrier Stored Trench-Gate Bipolar Transistor) technology, which provides an excellent balance between low conduction losses (VCE(sat)) and reduced switching losses. This is fundamental to achieving high efficiency in motor drive applications.
Furthermore, the integrated protection is not just a feature—it's a system safeguard. The gate driver is perfectly matched to the IGBT's characteristics, and the protection circuits are calibrated to react within microseconds. This prevents the common modes of IGBT failure that can occur with poorly matched discrete solutions, ensuring a significantly higher level of field reliability.
Expert Q&A: Engineering with the PM50CL1B120
What is the primary benefit of using this IPM over a discrete IGBT solution?While cost is a factor, the chief advantage is reliability and reduced design risk. An IPM like the PM50CL1B120 is a pre-validated subsystem where the driver and protection are optimized for the IGBTs. This eliminates guesswork in gate drive design, reduces EMI issues from long trace routes, and provides guaranteed protection performance, significantly accelerating the development cycle. For a deeper comparison, explore our guide on IPM vs. discrete IGBTs.
How should I manage the thermal interface for this module?Effective thermal management is crucial for all power modules. The PM50CL1B120's isolated metal baseplate must be mounted to a heatsink with a high-quality Thermal Interface Material (TIM). Ensure proper mounting torque is applied evenly across the module to achieve a low thermal resistance path and prevent mechanical stress on the package. The low-profile package is designed for easy integration with standard heatsink profiles.
For detailed application notes, pricing, or to discuss how the PM50CL1B120 can enhance your next project, please contact our technical team.
