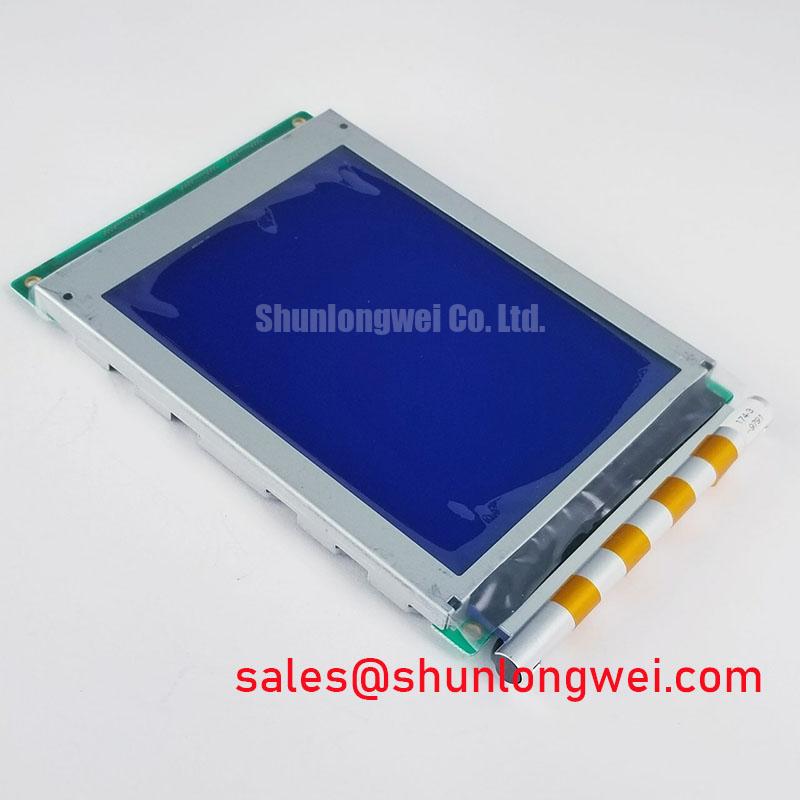

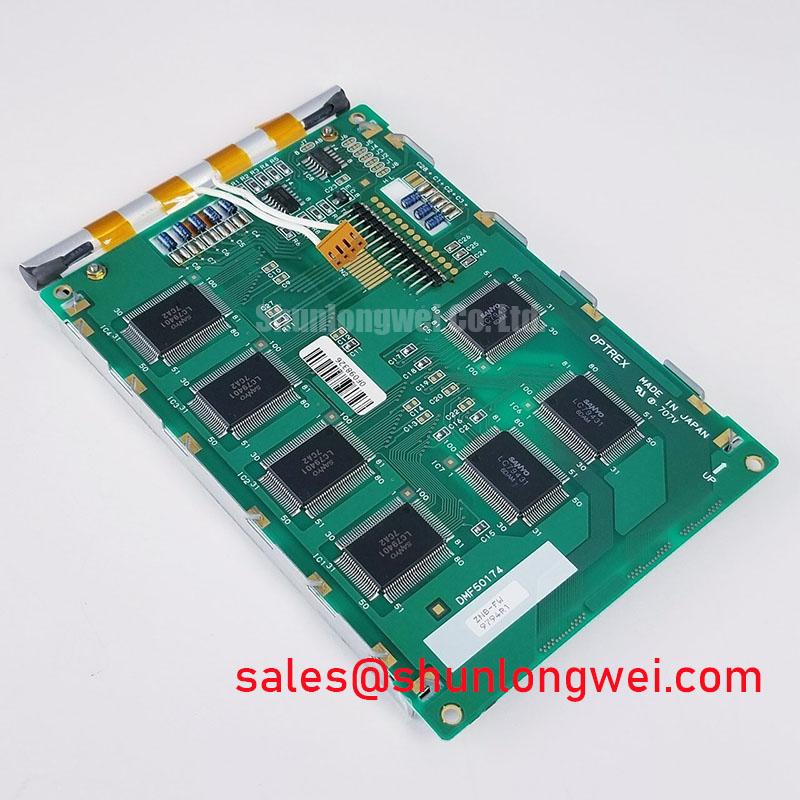

OPTREX DMF-50174ZNB LCD Display

Brand OPTREX

Model DMF-50174ZNB

Diagonal Size 5.7 inch

Type STN-LCD, LCM

Pixel Format 320×240  [QVGA]  70PPI

Configuration Rectangle

Active Area 115.17(H)×86.37(V) mm

Outline Dim 174(H)×115(V) mm

Bezel Area 122.0(H)×92.0(V) mm

Contrast Ratio 4:1 (Typ.) (TM)

Response Time100/360 (Typ.)(Tr/Td)

Operating ModeSTN

Support Color Monochrome

Light Source CCFL , W/O Driver

Weight 300g (Max.)

Designed For Industrial

Frame Rate 70Hz

120Hz (60HZ Input) : Embedded MEMC Circuit

120Hz+120Hz : 120Hz Panel+120Hz Backlight

240Hz (60HZ Input) : Embedded MEMC Circuit

Touch Panel Without

Interface Type Parallel Data (4-bit) , 14 pins Connector

Power Supply 5.0V (Typ.)

Environment Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
