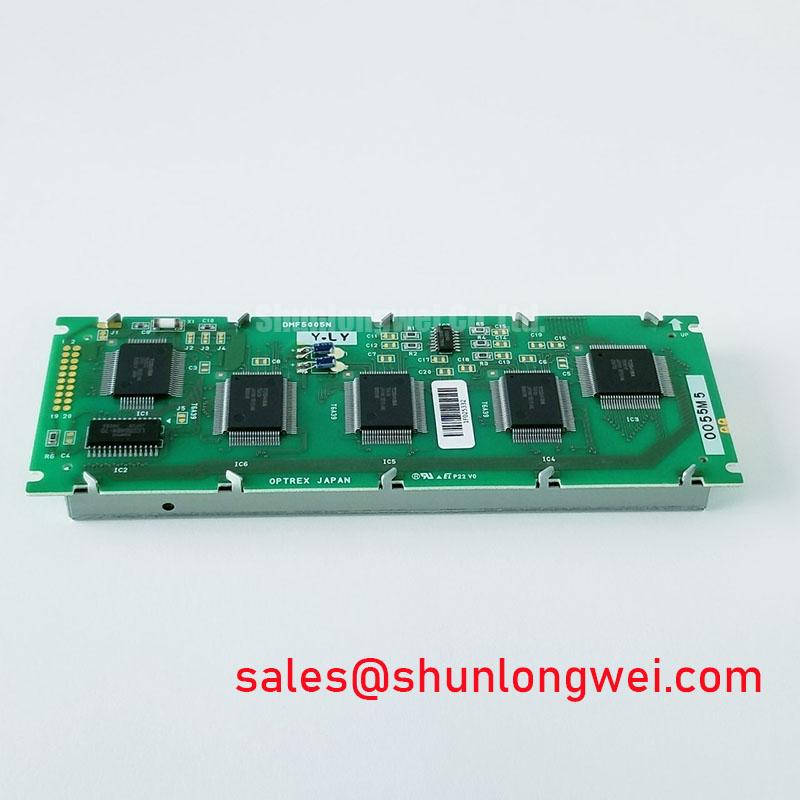

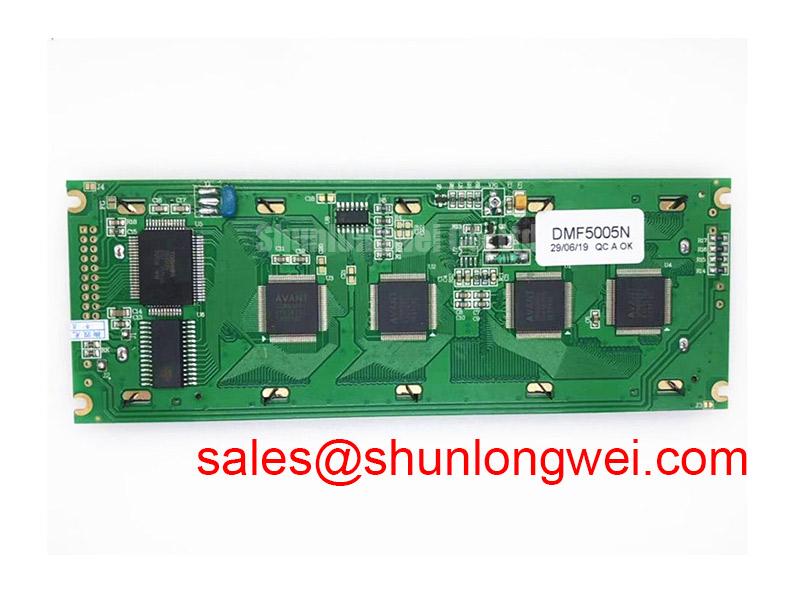

Sell DMF5005N-EB OPTREX LCD Display

#OPTREX, #DMF5005N_EB, #LCD_Display, #LCD, OPTREX 5.2inch LCM 240×64 65 7:1 34/32/36/35 Monochrome EL CPU;

· Categories: LCD Display

· Manufacturer: OPTREX

· Price: US$

· Date Code: 2021+

. Available Qty: 196

Pin It

Email: sales@shunlongwei.com

Whatsapp: 0086 189 2465 1869

Tags:

-- OR --

DMF5005N-EB Specification

Sell DMF5005N-EB, #OPTREX #DMF5005N-EB Stock, OPTREX 5.2inch LCM 240×64 65 7:1 34/32/36/35 Monochrome EL CPU;, #LCD_Display, #LCD, #DMF5005N_EB

Email: sales@shunlongwei.com
URL: https://www.slw-ele.com/dmf5005n-eb.html

Panel Brand OPTREX

Panel Model DMF5005N-EB

Panel Size 5.2 inch

Panel Type STN-LCD, LCM

Resolution 240×64, 47PPI

Pixel Format Rectangle

Display Area 127.16(W)×33.88(H) mm

Bezel Opening 132.0(W)×39.0(H) mm

Outline Size 180(W)×65(H) ×12(D) mm

Brightness 65 cd/m² (Typ.)

Contrast Ratio 7:1 (Typ.) (TM)

Viewing Angle 34/32/36/35 (Typ.)(CR≥2) Left / Right / Up / Down

Display Mode STN, Transflective

Best View on 6 o'clock

Response Time 160/160 (Typ.)(Tr/Td)

Display Colors Monochrome

Lamp Type EL , 2K hours

Frequency 70Hz

120Hz (60HZ Input) : Embedded MEMC Circuit

120Hz+120Hz : 120Hz Panel+120Hz Backlight

240Hz (60HZ Input) : Embedded MEMC Circuit

Touch Screen Without

Panel Weight 170g (Max.)

Application Industrial

Signal Interface 8-bit parallel , 22 pins Pad

Input Voltage 5.0V (Typ.)(VCC)

Environment Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
