DMF5005NYJ-LY: High-Contrast Monochrome LCD for Demanding Industrial HMI
Product Overview and Key Highlights
Engineered for Clarity and Integration in Industrial Controls

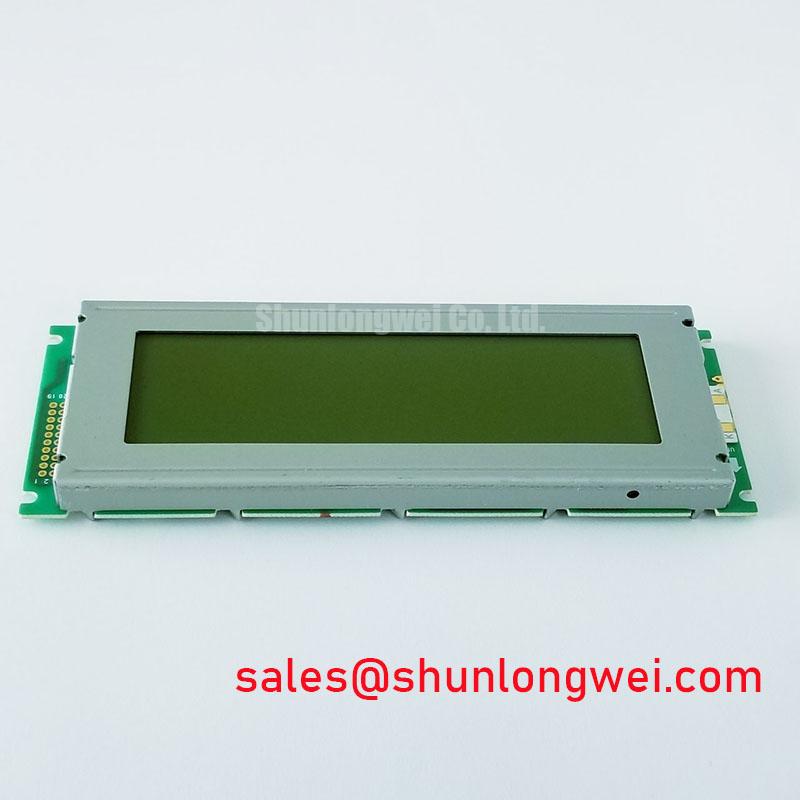

The DMF5005NYJ-LY is a Film STN (FSTN) monochrome LCD module engineered for superior contrast and readability in industrial instrumentation and control panels. With its 240 x 64 dot matrix resolution and built-in controller, this display provides a streamlined solution for presenting critical operational data. Key specifications include: 240x64 resolution | FSTN Negative, Transmissive Mode | Integrated RA8835 Controller. Its primary benefits are excellent visual performance and simplified system integration. For engineers questioning how to drive this display, the integrated RA8835 controller significantly reduces development time by handling display logic internally. Best Fit: The DMF5005NYJ-LY is the optimal choice for new or legacy industrial systems requiring a compact, high-contrast monochrome display with a parallel interface.
Key Parameter Overview
Decoding the Specs for Industrial HMI Design
The technical specifications of the DMF5005NYJ-LY are tailored for integration into industrial equipment where clarity and reliability are paramount. The following table breaks down its performance into functional groups.
| Display Characteristics | |
|---|---|
| Display Type | FSTN LCD (Film Super-Twisted Nematic) |
| Display Mode | Negative, Transmissive |
| Resolution | 240 x 64 Dots |
| Backlight | LED (Yellow-Green) |
| Mechanical & Electrical Specifications | |
| Outline Dimension (W x H x D) | 180.0 x 65.0 x 13.5 mm |
| Viewing Area (W x H) | 133.0 x 39.0 mm |
| Dot Size (W x H) | 0.49 x 0.49 mm |
| Controller IC | RA8835 or Equivalent |
| Interface | 8-bit Parallel (6800-family) |
Application Scenarios & Value
Delivering Readability in High-Density Information Displays
The DMF5005NYJ-LY is ideally suited for applications where clear, unambiguous data presentation is crucial. Its 240x64 resolution provides sufficient screen real estate for displaying multiple lines of text, status icons, and simple graphical elements, a common requirement in devices like test and measurement equipment, rack-mounted servers, and industrial automation controllers. The key engineering challenge in these systems is often presenting dense information without overwhelming the operator. The FSTN Negative mode of the DMF5005NYJ-LY directly addresses this by providing a dark background with bright pixels, creating a high-contrast output that reduces eye strain and improves readability, even from a distance. Think of the contrast ratio as the display's "signal-to-noise" for the human eye; a higher ratio means the desired information (the lit pixels) stands out more clearly against the background, a critical factor for industrial display legibility. For systems that require a similar form factor but with a different resolution, the KCG057QV1DB-G000 offers a 320x240 quarter-VGA (QVGA) resolution in a compact package.
Industry Insights & Strategic Advantage
Leveraging Proven Technology for Long-Term Product Stability
In an era dominated by full-color, high-resolution displays, the strategic value of a monochrome module like the DMF5005NYJ-LY lies in its stability, reliability, and ease of implementation. The underlying FSTN technology and the integrated TFT-LCD controller, the RA8835, are mature and well-documented platforms. This translates into a significant strategic advantage for OEMs designing products with long life cycles, such as industrial machinery, medical devices, or telecom infrastructure. These industries often require service and replacement parts for 10-15 years or more. Choosing a display built on proven technology minimizes the risks associated with rapid component obsolescence common with consumer-grade electronics. This focus on long-term availability aligns with the core principles of designing for low Total Cost of Ownership (TCO), where reliability and serviceability are just as important as the initial unit price. The display's parallel interface further supports this by ensuring compatibility with a wide range of microcontrollers, from legacy 8-bit MCUs to modern 32-bit processors, protecting the investment in existing software and hardware architectures.
Frequently Asked Questions (FAQ)
Technical Inquiries for the DMF5005NYJ-LY
What is the benefit of the integrated RA8835 controller?
The built-in RA8835 (or equivalent) controller is a major advantage for system integration. It offloads the host processor from the task of constantly refreshing the display's 240x64 pixels. The controller manages RAM and character generation, simplifying the software driver and freeing up MCU resources for core application tasks. This is like having a dedicated graphics co-processor for the display.
What does 'FSTN Negative, Transmissive' mean for my application?
'FSTN' (Film Super-Twisted Nematic) technology provides higher contrast and a wider viewing cone compared to older STN types. 'Negative' mode means the display shows light characters on a dark background, which is often preferred for perceived sharpness. 'Transmissive' indicates it requires a backlight (the integrated yellow-green LED) to be visible, making it ideal for indoor and low-light industrial environments.
How does the 8-bit parallel interface impact my design?
The 8-bit parallel interface provides a high data throughput compared to serial interfaces like SPI or I2C, allowing for fast screen updates. This is beneficial for applications that need to display dynamically changing data or simple animations. While it requires more I/O pins on the microcontroller, its straightforward protocol simplifies hardware and software design, a key factor in speeding up time-to-market for industrial HMIs.
For engineering inquiries or to discuss how the DMF5005NYJ-LY can be integrated into your specific application, please contact our technical support team for detailed guidance and documentation.
