Kyocera KCG057QV1DB-G000 5.7" QVGA Resilient Display
Introduction and Key Features

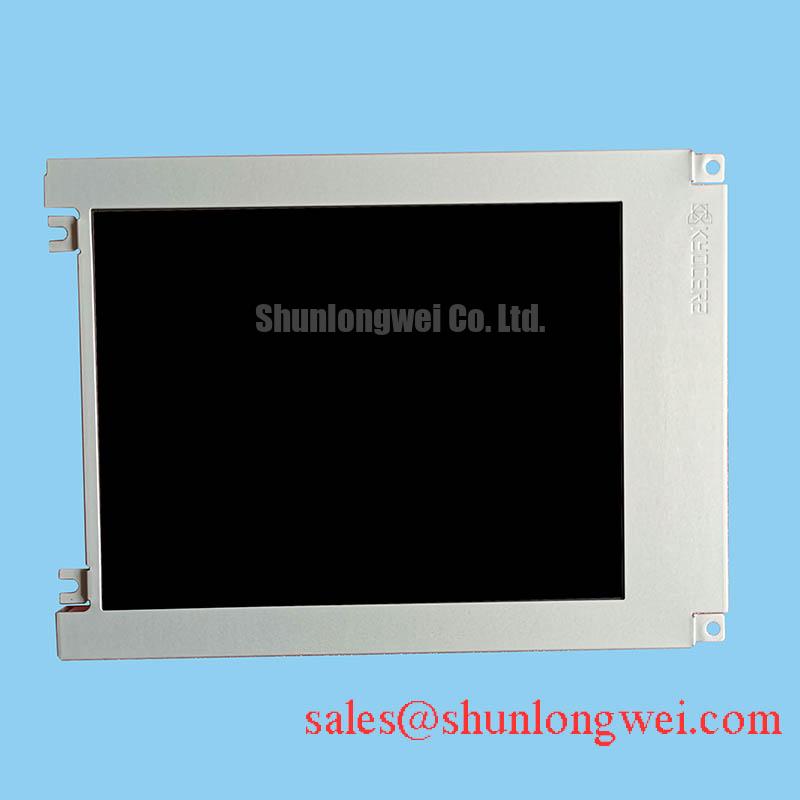

The Kyocera KCG057QV1DB-G000 is a Color STN display engineered for consistent readability and operational integrity across challenging thermal and ambient light conditions. What is the KCG057QV1DB-G000's primary resilience feature? Its transflective screen ensures readability in bright ambient light, even without a backlight, directly addressing the need for versatile HMI solutions. This 5.7-inch module delivers a clear visual interface where reliability is a critical design parameter.
- Top Specs: 320x240 Resolution | -10°C to +60°C Op. Temp | 40:1 Contrast Ratio
- Key Benefits: Dual-mode visibility (transflective). Extended operational temperature range.
Industry Insights & Strategic Advantage
Strategic Advantage in Demanding Environments
In sectors like industrial automation and portable field instrumentation, display failure or poor readability can compromise safety and operational efficiency. The KCG057QV1DB-G000 directly addresses these risks. Its ability to function across a wide thermal range (-10°C to +60°C) allows for deployment in environments without climate control, from factory floors to outdoor-covered terminals. Furthermore, its transflective nature supports the industry-wide push for lower power consumption and improved total cost of ownership, as detailed in the debate over industrial vs. consumer displays. This technology leverages ambient light to illuminate the screen, reducing reliance on the backlight and thereby extending the operational life of battery-powered devices.
Technical Deep Dive
Engineering for Durability and Clarity
The core of the KCG057QV1DB-G000's resilience lies in its CSTN (Color Super-Twisted Nematic) transflective panel technology. Unlike standard transmissive screens that can wash out in bright light, this panel reflects ambient light back through the liquid crystal layer. This is analogous to how a reflective road sign works—it becomes more visible as more light hits it. This dual-mode operation ensures data is legible in direct sunlight and, with the CCFL backlight activated, in low-light conditions. The module's mechanical design is also validated against vibration, making it a robust choice for systems that are not stationary, aligning with principles for engineering displays for heavy machinery.
Application Scenarios & Value
Deployments Where Uptime is Paramount
The feature set of the Kyocera KCG057QV1DB-G000 makes it particularly suitable for applications where consistent performance under fluctuating environmental conditions is crucial. Its robust thermal and optical characteristics provide significant value in:
- Portable Test and Measurement Equipment: Field technicians benefit from a display that is readable in various lighting scenarios without constantly draining the battery.
- Industrial Control Panels: Offers a reliable human-machine interface (HMI) for process control systems on factory floors, which often experience temperature swings and high ambient light.
- Medical Monitoring Devices: Provides clear, dependable readouts for patient monitoring systems that may be moved between different environments within a facility.
- Point-of-Sale (POS) Terminals: Ensures transaction information is visible to both operator and customer in diverse retail settings, including outdoor kiosks.
For control panels in variable lighting where power is constrained, its transflective screen makes it a superior choice over purely transmissive displays.
Success Stories / Deployment Snippets
Field Report: Reliability in a Portable Asset Monitor
A manufacturer of portable asset monitoring systems for the logistics industry selected the KCG057QV1DB-G000 for their next-generation handheld device. The primary challenge was ensuring their field agents could read diagnostic data in bright sunlight on loading docks as well as in dimly lit warehouses. The transflective technology allowed for a "sunlight mode" that turned off the power-intensive backlight outdoors, significantly extending the device's shift life. The display's verified tolerance for vibration also proved essential, as the handheld units were frequently dropped or subjected to jostling in transport vehicles, demonstrating its real-world durability.
Intra-Series Comparison & Positioning
Positioning within Kyocera's Display Portfolio
The KCG057QV1DB-G000 is a foundational 5.7-inch QVGA (320x240) offering that prioritizes environmental resilience and low-power readability over pixel density. It serves as a workhorse for applications where clarity and durability in varied lighting are the primary engineering goals. For systems that require a larger active area and higher resolution for more complex graphical interfaces, designers might evaluate options like the KCG075VG2BH-G00, a 7.5-inch VGA (640x480) display from Kyocera's portfolio. The KCG057QV1DB-G000's specific value is its balanced performance in a standard industrial form factor, making it an excellent baseline for ruggedized HMI designs.
Key Parameter Overview
Engineering Specifications for Resilient Designs
The following parameters are central to the KCG057QV1DB-G000's performance in demanding applications. The engineering significance of each specification highlights its direct impact on system design and reliability. You can also download the complete datasheet for full electrical and timing characteristics.
| Parameter | Value | Engineering Significance |
|---|---|---|
| Display Technology | CSTN Transflective | Enables readability in both high ambient light (backlight off) and dark conditions (backlight on), enhancing versatility and power efficiency. |
| Operating Temperature Range | -10°C to +60°C | Defines the ambient thermal conditions for guaranteed stable operation, crucial for non-climate-controlled industrial or field applications. |
| Storage Temperature Range | -20°C to +70°C | Specifies the non-operational temperature limits, providing a key reliability metric for logistics, transport, and storage of the end product. |
| Contrast Ratio | 40:1 (Typical) | Measures the luminance difference between the brightest white and darkest black. A higher Contrast Ratio makes text and graphics sharper and easier to distinguish. |
| Viewing Direction | 12 o'clock | Indicates the optimal vertical viewing angle for maximum image quality. This parameter is critical for ergonomics in fixed-mount HMI design. |
| Backlight Type | 1x CCFL | Provides illumination for low-light environments. The single Cold Cathode Fluorescent Lamp is a mature and reliable lighting technology. |
Frequently Asked Questions (FAQ)
Technical and Integration Inquiries
1. What is the key advantage of a transflective display like the KCG057QV1DB-G000?
Its primary advantage is dual-mode readability. It uses ambient light for visibility in bright conditions, which saves significant power, and uses its internal backlight for visibility in dark conditions, offering versatility that purely transmissive or reflective screens cannot.
2. How does the -10°C to +60°C operating temperature range benefit my design?
This wide range allows your product to be deployed in environments without requiring an internal heater or complex cooling system, simplifying the mechanical design and reducing the bill of materials for equipment used in factories, outdoor kiosks, or vehicles.
3. Is the KCG057QV1DB-G000 suitable for devices that experience vibration?
Yes, the module is designed and tested to withstand specific levels of vibration as outlined in its datasheet. This makes it a suitable HMI component for portable equipment, industrial machinery, and transportation control systems where mechanical robustness is essential.
4. What does a "12 o'clock" viewing direction mean for installation?
It means the display provides the best image contrast and color fidelity when viewed from slightly above the center of the screen. This should inform the physical placement of the display in a control panel to ensure it aligns with the typical operator's line of sight.
5. What type of interface does the KCG057QV1DB-G000 use?
It utilizes a parallel digital RGB interface, supporting both 6-bit (64 colors) and 8-bit (256 colors) modes. This is a common interface for industrial displays, compatible with a wide range of microcontrollers and display driver ICs.
Design Considerations for System Integration
When integrating the KCG057QV1DB-G000, engineers should focus on optimizing the dual-use nature of its transflective panel. The firmware could include an ambient light sensor to automatically switch off the CCFL backlight when external lighting is sufficient, maximizing power savings in mobile applications. For fixed installations, careful consideration of the 12 o'clock viewing angle during mechanical design will ensure the best possible user experience and data legibility. Future optimizations could involve pairing this type of robust display with more advanced power management ICs to further enhance the overall system's energy efficiency and operational lifespan in the field.
