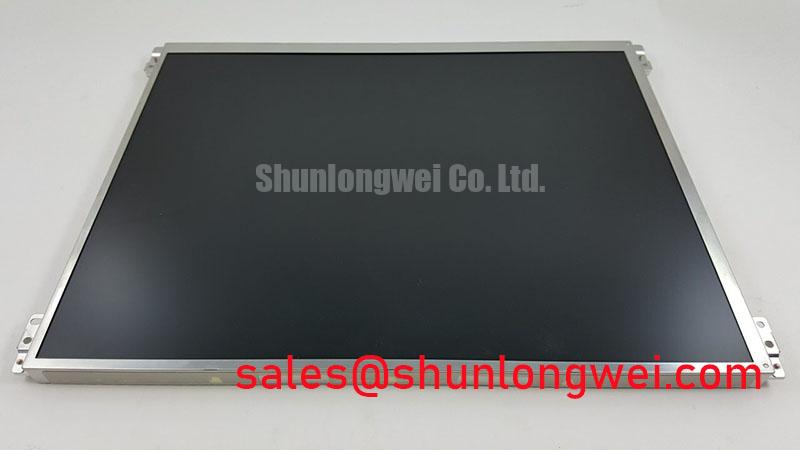

Toshiba LTM15C423S: A Proven 15-inch XGA Display for Industrial HMI Systems
Introduction & Core Specifications
Engineered for Longevity in Established Industrial Applications
The Toshiba LTM15C423S is a 15.0-inch a-Si TFT-LCD panel engineered for consistent performance in legacy industrial, medical, and point-of-sale systems. Delivering proven reliability, it provides a direct-fit solution for maintaining the operational life of existing human-machine interfaces (HMIs) and embedded displays. With its standard XGA resolution and robust construction, this panel ensures clear, readable visuals for critical control and monitoring tasks.
- Top Specs: 1024x768 XGA | 200 cd/m² Brightness | 250:1 Contrast Ratio | LVDS Interface
- Key Benefits: Seamless integration into existing designs. Reliable performance under standard industrial conditions.
- Core Question Answered: This display is an optimal choice for engineers needing to replace a 15" XGA panel in equipment designed around CCFL backlight technology without undertaking a major system redesign. What is the primary benefit of its standard interface? Its 2-channel, 6/8-bit LVDS interface ensures compatibility with a wide range of established industrial motherboards and controllers.
Application Scenarios & Value
Maintaining System Integrity in Long-Lifecycle Equipment
The LTM15C423S is best suited for deployment as a service or replacement component in industrial equipment where visual clarity and component consistency are paramount. Its specifications are tailored for environments where wholesale system upgrades are either cost-prohibitive or technically infeasible. The key value of the LTM15C423S lies in its ability to extend the lifecycle of critical assets.
Consider a CNC milling machine from the early 2000s with an integrated control panel. The original display fails, but the machine's control logic and mechanics are perfectly functional. The primary challenge for the maintenance engineer is finding a replacement display that matches the original's physical footprint, mounting points, and electronic interface. The LTM15C423S, with its 336 x 249 mm frame and standard 30-pin LVDS connector, is designed for precisely this scenario. Its 1024x768 resolution and 200 nits brightness provide sufficient clarity for the complex graphical user interfaces found in such machine tools, ensuring that operator efficiency and safety are maintained without a costly and time-consuming system retrofit. For applications requiring a different form factor or higher brightness, other specialized industrial panels such as the G121SN01 V4 may be suitable.
Key Parameter Overview
Defining Performance for Industrial Environments
The technical specifications of the Toshiba LTM15C423S are foundational to its role in industrial applications, balancing performance with reliability for long-term operation.
| Feature Category | Specification | Significance |
|---|---|---|
| Display Characteristics | 15.0-inch a-Si TFT-LCD, XGA 1024(RGB)×768 | Provides ample screen real estate and sufficient detail for complex industrial GUIs and data readouts. |
| Optical Performance | Brightness: 200 cd/m² (Typ.), Contrast Ratio: 250:1 (Typ.) | Ensures clear visibility in typical indoor industrial lighting conditions. |
| Interface & Power | LVDS (2 ch, 6/8-bit), 30-pin Connector, 3.3V Supply | Standardized interface simplifies integration with legacy single-board computers and display controllers. |
| Mechanical & Environmental | Dimensions: 336(W) × 249(H) × 13.5(D) mm, Weight: 1.10 Kgs (Typ.) | Robust, standard form factor for seamless mechanical replacement in existing enclosures. |
| Backlight System | CCFL (Cold Cathode Fluorescent Lamp) | Compatible with existing inverter power supplies designed for CCFL technology. |
| Operating Conditions | Temperature: 0 ~ 50 °C; Storage: -20 ~ 60 °C | Suitable for deployment in controlled factory floor and operational environments. |
Technical Deep Dive
Understanding the Impact of CCFL Backlight and LVDS Interface
The LTM15C423S utilizes two technologies that are cornerstones of its value in legacy systems: a CCFL backlight and an LVDS interface. While modern displays have largely moved to LED backlights, the CCFL system in this model is a critical feature for drop-in compatibility. It allows the panel to connect directly to the high-voltage inverters already present in older equipment, bypassing the need for electrical re-engineering. Think of it like retaining a specific type of fuel nozzle for a classic car; changing the nozzle would require modifying the entire fuel system. Similarly, the CCFL backlight ensures that the existing power infrastructure for the display remains untouched, dramatically reducing repair time and complexity.
Furthermore, the Low-Voltage Differential Signaling (LVDS) interface is a robust standard known for its high noise immunity—a crucial attribute in electrically noisy industrial settings. The 2-channel configuration supports the full color depth of the panel (up to 16.7 million colors), ensuring that graphical interfaces are rendered accurately. This combination of established, reliable technologies makes the LTM15C423S a stable and predictable component for maintaining the operational readiness of vital industrial machinery.
Frequently Asked Questions (FAQ)
What are the primary considerations when integrating the LTM15C423S as a replacement part?
When using this panel as a replacement, engineers should verify three main points: the physical dimensions (336 x 249 x 13.5 mm) for mechanical fit, the 30-pin LVDS connector pinout for electrical compatibility, and the power requirements of the existing CCFL inverter to ensure it matches the panel's needs.
How does the 250:1 contrast ratio affect usability in an industrial setting?
A 250:1 contrast ratio is sufficient for creating clearly distinguishable text and graphics in controlled indoor lighting. It allows operators to easily differentiate between states in a user interface (e.g., on/off, active/inactive) and read numerical data without ambiguity, which is essential for safe and efficient machine operation.
For inquiries regarding the LTM15C423S or to discuss the specific requirements of your system, please contact our technical support team for further information.
