Panel Brand OPTREX

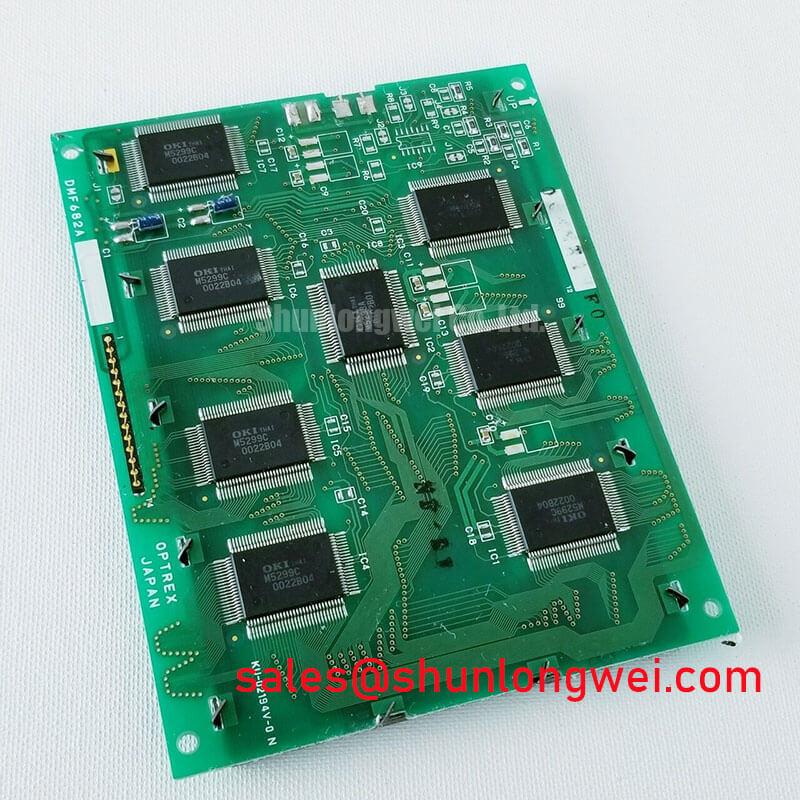

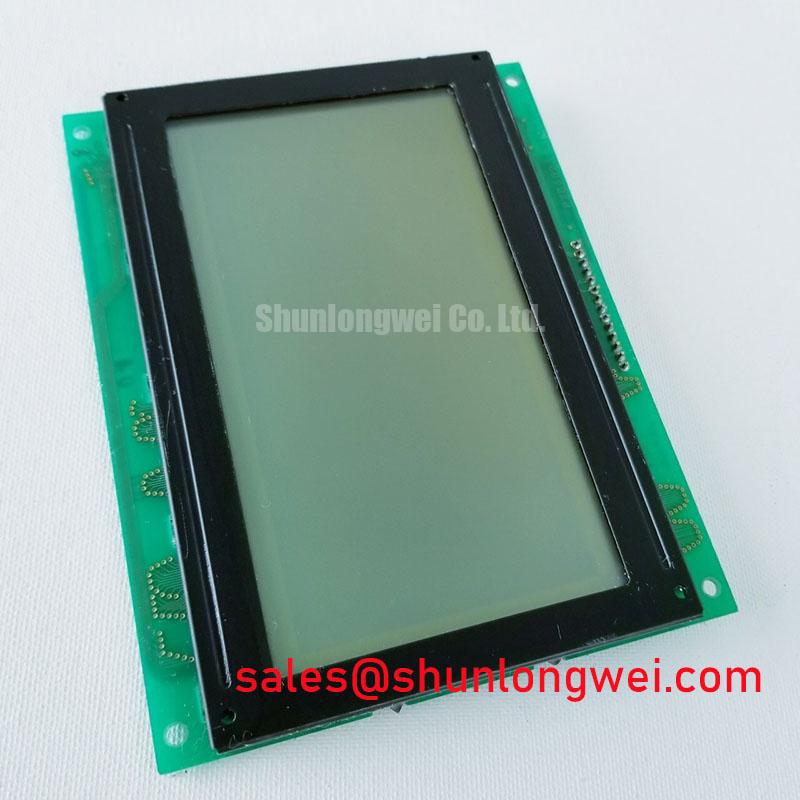

Panel Model DMF682ANY-EB
Panel Size 5.3 inch
Panel Type STN-LCD, LCM
Resolution 256×128, 54PPI
Pixel Format Rectangle
Display Area 120.28(W)×60.12(H) mm
Bezel Opening 127.0(W)×70.0(H) mm
Outline Size 147(W)×116(H) mm
Contrast Ratio 7:1 (Typ.) (TM) 7:1 (Typ.) (RF)
Display Mode STN, Transflective
Best View on 6 o'clock
Response Time 140/180 (Typ.)(Tr/Td)
Display Colors Monochrome
Lamp TypeEL , 2K hours , Without Driver
Frequency 70Hz
Touch Screen Without
Panel Weight 160g (Max.)
Application Industrial
Signal Interface Parallel Data (4-bit) , 16 pins
Input Voltage 5.0V (Typ.)
Environment Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
