EL640.480-AG1: Extreme Environment TFEL Display for Uncompromising Clarity
Introduction to a Mission-Ready Display

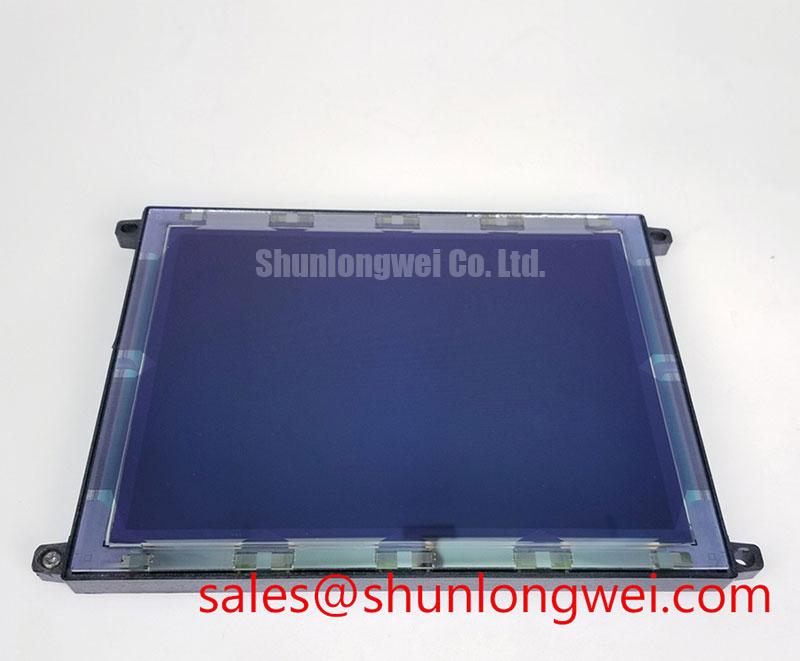

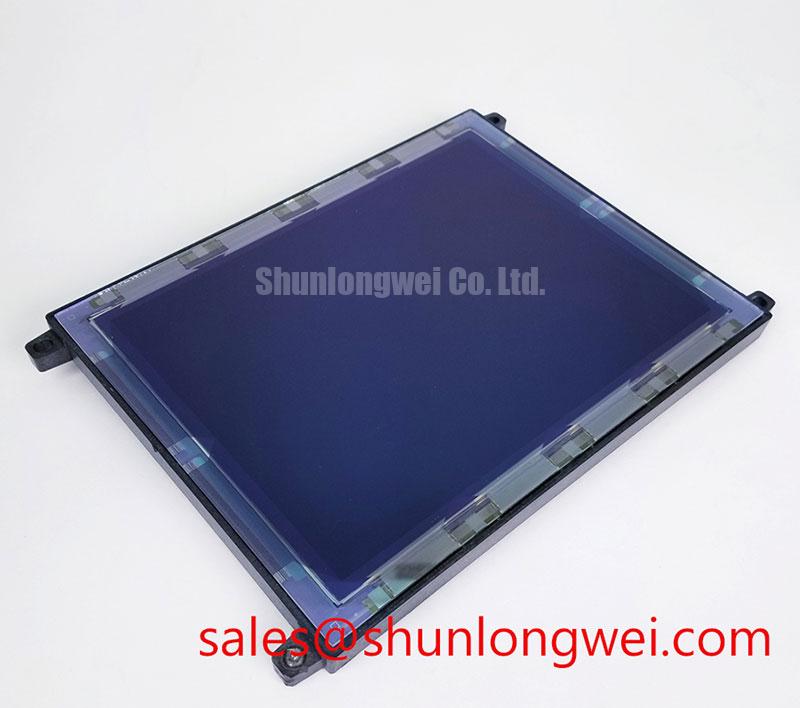

The EL640.480-AG1 is an 8.1-inch TFEL display engineered for absolute reliability in applications where conventional displays fail. With its core specifications of 640x480 VGA | < 1 ms Response Time | -40 to +85°C Operating Temperature (ET Model), it delivers unparalleled visual performance. Key benefits include instantaneous image stability across extreme temperatures and exceptional shock and vibration resistance. This display directly addresses the need for a non-LCD solution that guarantees readability and operational longevity in harsh industrial, medical, and defense environments. For systems requiring unwavering performance from freezing cockpits to high-vibration industrial machinery, the EL640.480-AG1 provides a robust, field-proven solution.
Key Parameter Overview
Decoding the Specs for Environmental Resilience
The technical specifications of the EL640.480-AG1 underscore its suitability for extreme conditions. Unlike liquid crystal-based displays that suffer from performance degradation at temperature extremes, this Thin Film Electroluminescent (TFEL) panel maintains consistent brightness, contrast, and response time across its entire operating range. The sub-millisecond response time is particularly critical in applications like avionics and industrial automation, where instantaneous data updates are essential for operator control and safety.
| Parameter | Specification | Engineering Value |
|---|---|---|
| Display Technology | Thin Film Electroluminescence (TFEL) | Solid-state design provides intrinsic resistance to shock (100 g), vibration, and humidity. |
| Resolution | 640 x 480 (VGA) | Standard resolution ensures compatibility with a wide range of industrial video controllers. |
| Active Area | 165.1 x 123.8 mm | Provides a clear 8.1-inch diagonal viewing area for critical data visualization. |
| Luminance | 55 cd/m² (Typical @ 120 Hz) | Delivers clear, readable imagery for indoor and shaded outdoor environments. |
| Response Time | < 1 ms | Eliminates motion blur and ghosting, crucial for displaying rapidly changing data. |
| Viewing Angle | > 179° | Allows for accurate off-axis viewing from virtually any direction without color or contrast shift. |
| Operating Temperature | -5°C to +55°C (Standard) / -40°C to +85°C (ET Model) | Ensures immediate, reliable operation in environments from cold storage to desert heat without heaters. |
| MTBF | > 50,000 hours | Indicates a long operational life, reducing total cost of ownership in long-term deployments. |
Download the EL640.480-AG1 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in High-Stress Environments
The true value of the EL640.480-AG1 is realized in applications where failure is not an option. Consider the human-machine interface (HMI) on heavy construction equipment or in an aircraft cockpit. These environments are characterized by extreme temperature swings, constant vibration, and high shock loads. A standard LCD panel's liquid crystals would slow down in the cold, causing severe ghosting, and could be damaged by sustained vibration. The EL640.480-AG1's solid-state TFEL technology completely bypasses these failure modes. Its ability to turn on instantly at -40°C without a heater simplifies system design, reduces power consumption, and eliminates a common point of failure. This inherent ruggedness makes it a prime candidate for avionics, military ground vehicles, marine systems, and industrial automation control panels where data must be clearly legible 100% of the time. For applications that require a different form factor but similar ruggedness, the LB064V02-B1 may be a suitable consideration.
Frequently Asked Questions (FAQ)
Diving into Performance and Integration
What is the primary advantage of TFEL technology over industrial TFT-LCDs?
The core advantage is its solid-state nature, which provides superior environmental stability. TFEL displays like the EL640.480-AG1 maintain consistent response time (<1ms) and contrast across their entire, very wide operating temperature range, a feat impossible for liquid-crystal-based technologies.
How does the 179-degree viewing angle impact usability in a vehicle or control room?
A near-perfect viewing angle means the display can be read accurately without color distortion or loss of contrast, regardless of the operator's position. In a cramped cockpit or a control room where multiple operators view a single screen from different sightlines, this ensures every user sees the exact same critical information.
Is the monochrome yellow color a disadvantage for modern interfaces?
For its target applications, the high-contrast monochrome output is a distinct advantage. It offers exceptional clarity and reduces eye strain, particularly in high-ambient light or night conditions. What is an electroluminescent display? It's a technology that generates its own light, creating a very high contrast ratio (typically 33:1 at 500 lux for this model) that makes the yellow pixels "pop" against the black background, ensuring maximum readability for critical data.
What interface is used, and how does it integrate with existing systems?
The EL640.480-AG1 typically uses a common 8-bit FPD-type parallel interface. This standard is compatible with a wide array of commercial and industrial single-board computers and video controller chips, simplifying the integration process for system designers upgrading from older displays or developing new ruggedized systems.
Technical Deep Dive
The Engineering Behind Extreme Reliability

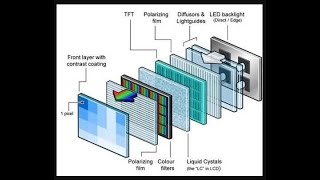

The exceptional durability of the EL640.480-AG1 is rooted in its fundamental construction. Unlike TFT-LCD panels, which rely on a liquid crystal layer sandwiched between glass and sensitive polarizing films, a TFEL display is a completely solid-state device. It consists of layers of thin-film materials deposited on a glass substrate. When a voltage is applied, a phosphor layer emits light directly, creating the image. This process is analogous to how a light bulb works—it either emits light or it doesn't—which is why the response time is nearly instantaneous. This monolithic structure is inherently resistant to the mechanical stresses of shock and vibration that can cause delamination or pooling in liquid crystal layers. Furthermore, since there is no liquid component, its performance is not dependent on temperature-sensitive viscosity changes, allowing for consistent operation in conditions that would render an LCD useless.
Strategic Outlook
For engineering leaders and procurement managers overseeing long-lifecycle projects in sectors like defense, aerospace, and heavy industry, the EL640.480-AG1 represents a strategic investment in reliability. The high initial MTBF of over 50,000 hours, combined with the display's resilience to environmental factors, translates to a significantly lower total cost of ownership by minimizing field failures, maintenance, and costly system downtime. As industries push for greater automation and data visualization in increasingly demanding environments, the value of components that guarantee operational continuity cannot be overstated. Selecting a display technology like TFEL is a decision that prioritizes system uptime and long-term performance over the limitations of conventional display solutions.
