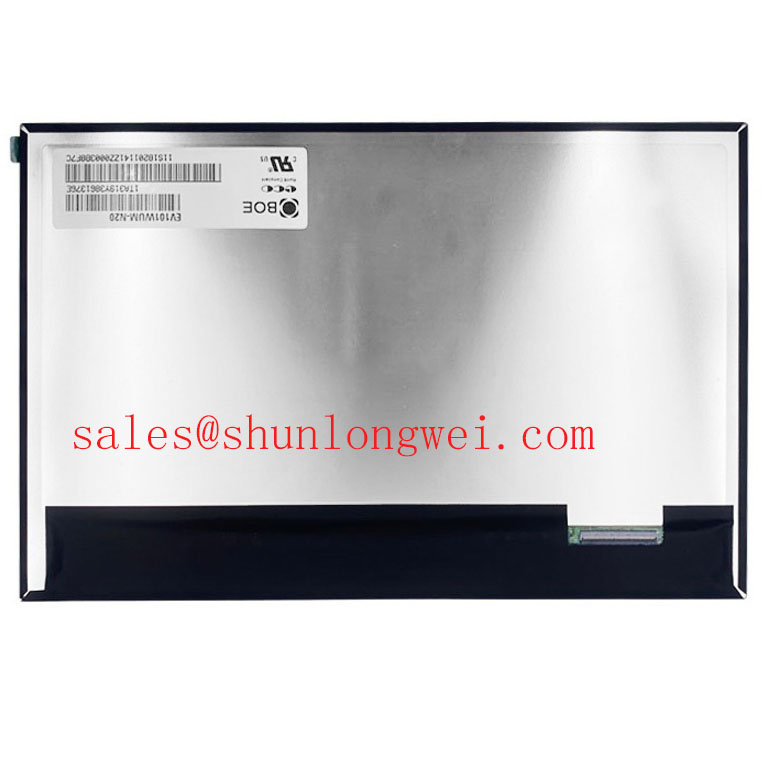

BOE EV101WUM-N20

EV101WUM-N20 BOE 10.1 inch LCM 1920×1200 600 900:1 80/80/80/80 16.7M WLED LVDS

· Categories: LCD Display
· Manufacturer: BOE
· Price:
Price Range: US$ 50 - US$ 200 (Estimated)
Submit RFQ to Get Price
· Date Code: Please Verify on Quote
. Available Qty: 305
90-Day Warranty
Global Shipping
100% Tested
Email: [email protected]
Whatsapp: 0086 189 2465 1869

Content last revised on March 9, 2024

  • Brand: BOE
  • Model: P/N EV101WUM-N20
  • Diagonal Size: 10.1 inches
  • Panel Type: a-Si TFT-LCD, LCM (Liquid Crystal Module)
  • Resolution: 1920(RGB)×1200, WUXGA, 224PPI
  • Pixel Format: RGB Vertical Stripe
  • Active Area: 216.806(W)×135.504(H) mm
  • Outline Dimensions: 228.5(H)×149.3(V) mm
  • Treatment: Not specified
  • Luminance: 600 cd/m² (Typ.)
  • Contrast Ratio: 900:1 (Typ.) (TM)
  • View Direction: Symmetry
  • Response Time: 30 ms (Typ.)(Tr+Td)
  • Viewing Angle: 80/80/80/80 (Typ.)(CR≥10) Left / Right / Up / Down
  • Operating Mode: ADS (Advanced Super Dimension Switch), Normally Black, Transmissive
  • Support Color: 16.7 million, 77% DCI-P3
  • Light Source: WLED (White Light Emitting Diode), Without Driver
  • Weight: Not specified
  • Designed For: Medical Imaging
  • Frame Rate: 60Hz (Supports higher frame rates with embedded MEMC circuit)
  • Touch Panel: Without
  • Interface Type: LVDS (2 ch, 8-bit), 45 pins Connector
  • Power Supply: 3.3V (Typ.)
  • Operating Temperature: -20 ~ 70 °C
  • Storage Temperature: -30 ~ 85 °C
