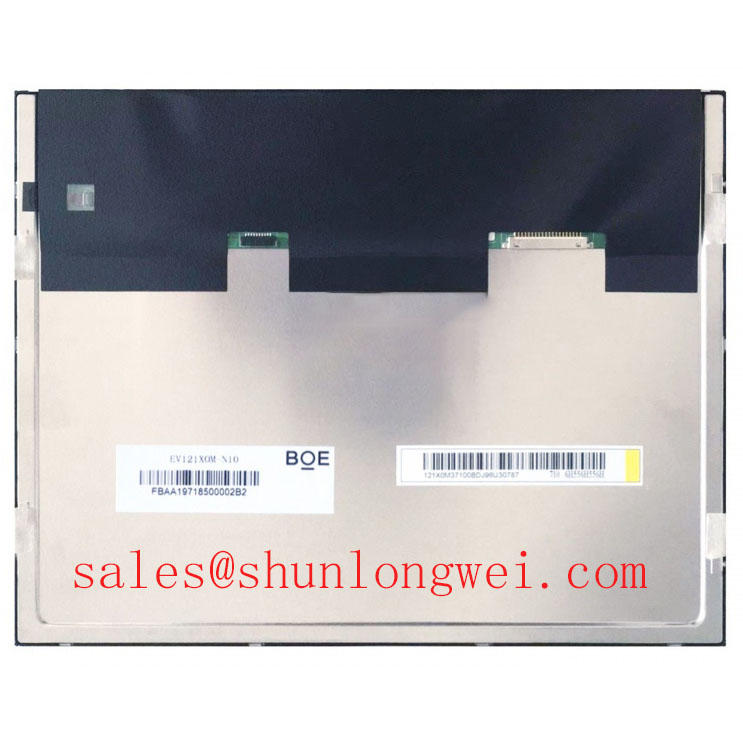

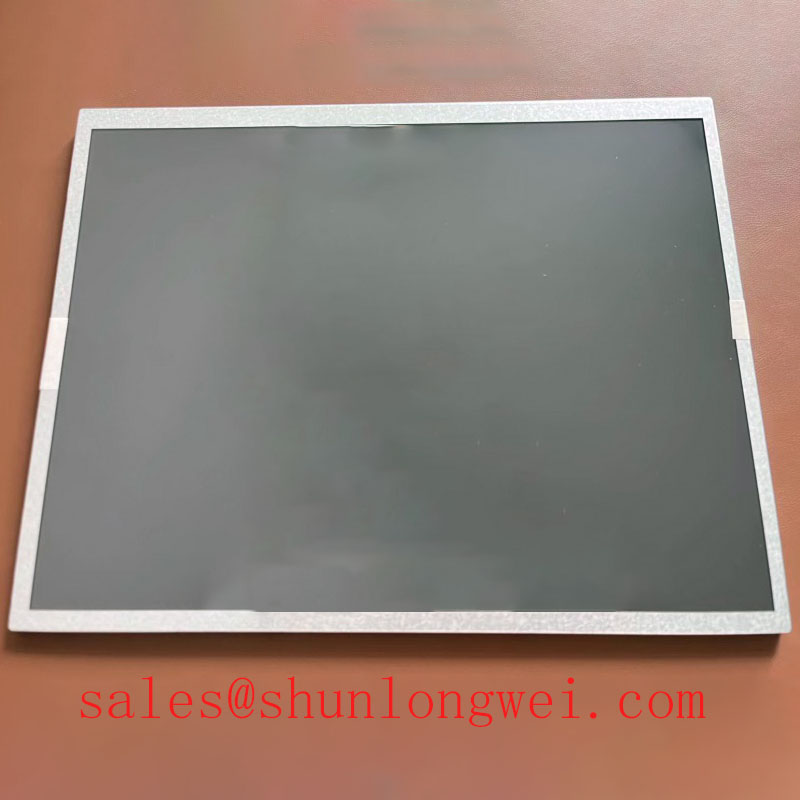

The specifications for the BOE display with the model P/NEV121X0M-N10:
- General Information:
- Brand: BOE
- Model: P/NEV121X0M-N10
- Diagonal Size: 12.1 inch
- Panel Type: a-Si TFT-LCD, LCM
- Resolution: 1024(RGB)×768, XGA, 105PPI
- Pixel Format: RGB Vertical Stripe
- Active Area: 245.76(W)×184.32(H) mm
- Bezel Opening: 249(W)×187.5(H) mm
- Outline Dimensions: 260.5(H)×204(V)×9.2(D) mm
- Display Characteristics:
- Luminance: 500 cd/m² (Typ.)
- Contrast Ratio: 1200:1 (Typ.) (TM)
- View Direction: Symmetry
- Response Time: 25 (Typ.)(Tr+Td) ms
- Viewing Angle: 88/88/88/88 (Typ.)(CR≥10) Left / Right / Up / Down
- Operating Mode: ADS, Normally Black, Transmissive
- Support Color: 16.7M, 72% NTSC
- Light Source: WLED, 50K hours, With LED Driver
- Weight and Application:
- Weight: 520g (Max.)
- Designed For: Industrial Medical Imaging
- Frame Rate and Touch Panel:
- Frame Rate: 60Hz
- Touch Panel: Without
- Interface Type and Power Supply:
- Interface Type: LVDS (1 ch, 8-bit), 20 pins Connector
- Power Supply: 3.3V (Typ.)
- Environmental Conditions:
- Operating Temperature: -20 ~ 70 °C
- Storage Temperature: -30 ~ 80 °C
