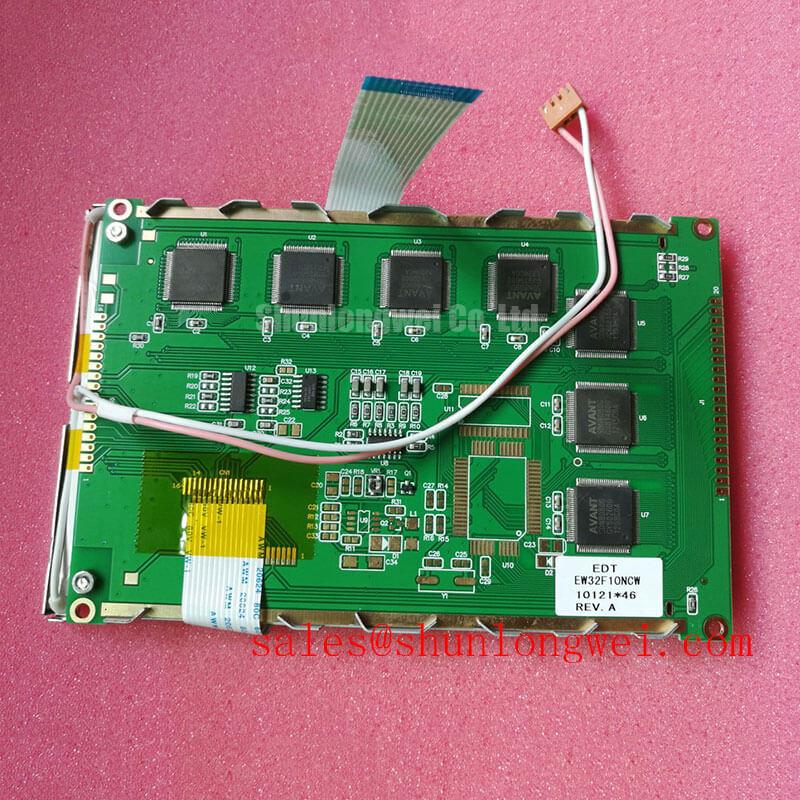

EW32F10NCW: High-Brightness 4.8" TFT Display for Demanding Industrial Applications
Product Overview: Uncompromising Clarity and Environmental Resilience
The EW32F10NCW is a 4.8-inch transmissive TFT-LCD module engineered for exceptional optical performance and resilience in challenging operational environments. It delivers a compelling combination of high brightness and wide temperature tolerance, making it a prime candidate for next-generation industrial HMIs and portable instrumentation. With key specifications of 480x272 Resolution | 800 cd/m² Brightness | -30°C to +80°C Operating Temperature, this display provides both superior image quality and steadfast reliability. Its design directly addresses the need for clear data visualization under fluctuating ambient light and extreme temperatures. For portable industrial instruments requiring robust performance and daylight readability, the EW32F10NCW is a definitive choice.
Application Scenarios & Value
System-Level Benefits in Field Instrumentation and Control Panels
The EW32F10NCW excels in applications where readability and durability are non-negotiable. Consider its deployment in a portable diagnostic tool for field service engineers. The high luminance of 800 cd/m² ensures that critical data remains sharp and legible, even when viewed under direct sunlight, eliminating the need for shading and improving technician efficiency. What is the key benefit of its 800 nit brightness? Clear image readability even in high ambient light. This capability is crucial for accurate readings in outdoor settings, from telecom infrastructure maintenance to agricultural equipment monitoring.
Furthermore, its expansive operating temperature range of -30°C to +80°C guarantees consistent performance across diverse climates, from refrigerated warehouses to sun-exposed vehicle cabs. This thermal robustness reduces the need for costly and complex environmental control systems within the device housing, simplifying the overall system design and lowering the total cost of ownership. The display's resilience makes it a reliable component for industrial control panels, outdoor payment terminals, and marine electronics where environmental extremes are a constant factor.
Key Parameter Overview
Decoding the Specifications for Environmental Robustness
The technical specifications of the EW32F10NCW are directly aligned with the demands of industrial-grade applications. Each parameter is a testament to its design focus on reliability and optical clarity under stress.
| Specification | Value | Engineering Value & Interpretation |
|---|---|---|
| Screen Size (Diagonal) | 4.8 inches | Provides a compact yet effective viewing area for data-rich interfaces without compromising portability. |
| Resolution | 480 (RGB) × 272 [WQVGA] | Delivers sufficient pixel density for clear rendering of graphical user interfaces, text, and measurement readouts. |
| Luminance | 800 cd/m² (Typ.) | This high brightness level is the cornerstone of its sunlight-readable performance, ensuring visibility in challenging high-ambient-light conditions. |
| Contrast Ratio | 800:1 (Typ.) | A strong contrast ratio complements the high brightness, producing deep blacks and vibrant colors for a sharp, well-defined image. |
| Operating Temperature | -30°C to +80°C | This wide range is critical for devices deployed outdoors or in unconditioned industrial spaces, guaranteeing operational reliability from freezing to scorching conditions. |
| Interface | CMOS (1 ch, 8-bit) + SPI | Offers a flexible and widely supported interface, simplifying integration with a variety of microcontrollers and system-on-chips. |
Frequently Asked Questions (FAQ)
How does the -30°C to +80°C operating temperature range impact system design for outdoor devices?
This extensive temperature range significantly simplifies thermal management. It often eliminates the need for internal heaters in cold climates or active cooling fans in hot environments for devices within this operational scope. This leads to a more robust, lower-power, and cost-effective final product with fewer potential points of failure.
Is the 800 cd/m² brightness sufficient for direct sunlight applications?
Yes, a luminance of 800 cd/m² (or nits) is considered a strong benchmark for sunlight readability in many industrial and commercial applications. While direct, glaring sunlight is the ultimate challenge, this brightness level ensures the display remains functional and legible in most outdoor daytime conditions, a critical requirement for any portable field equipment.
What is the advantage of the CMOS + SPI interface combination?
This dual-interface approach provides design flexibility. The parallel CMOS interface is well-suited for high-speed data transfer required for updating the display image, while the serial SPI interface is often used for efficient initialization and configuration of the display controller. This allows engineers to optimize data bus usage on their host processor.
Application Vignette
Enhancing Reliability in a Handheld Environmental Meter
An engineering team developing a next-generation handheld environmental meter faced a critical challenge: ensuring the device was usable for field technicians working in any location, from arctic research stations to desert utility sites. The display needed to provide instant, clear readings without fail. The EW32F10NCW was selected as the core visual interface. Its -30°C operational floor meant the LCD would not freeze or lag during cold-weather testing, a common failure point for lesser displays. Concurrently, its +80°C ceiling provided ample thermal headroom for operation inside a vehicle dashboard mount on a hot day. The 800-nit brightness directly translated to faster job completion times, as technicians could read measurements at a glance without repositioning themselves to avoid sun glare, improving both safety and operational efficiency.
Engineering Perspective
For design engineers developing compact, rugged devices for variable environments, the EW32F10NCW offers a well-defined solution that prioritizes core performance metrics over superfluous features. Its specifications reflect a clear understanding of industrial field requirements, where reliability and clarity directly impact usability and project outcomes. To evaluate this display for your specific application or to discuss integration requirements, we encourage you to request a quote or contact our technical support team for further details.
