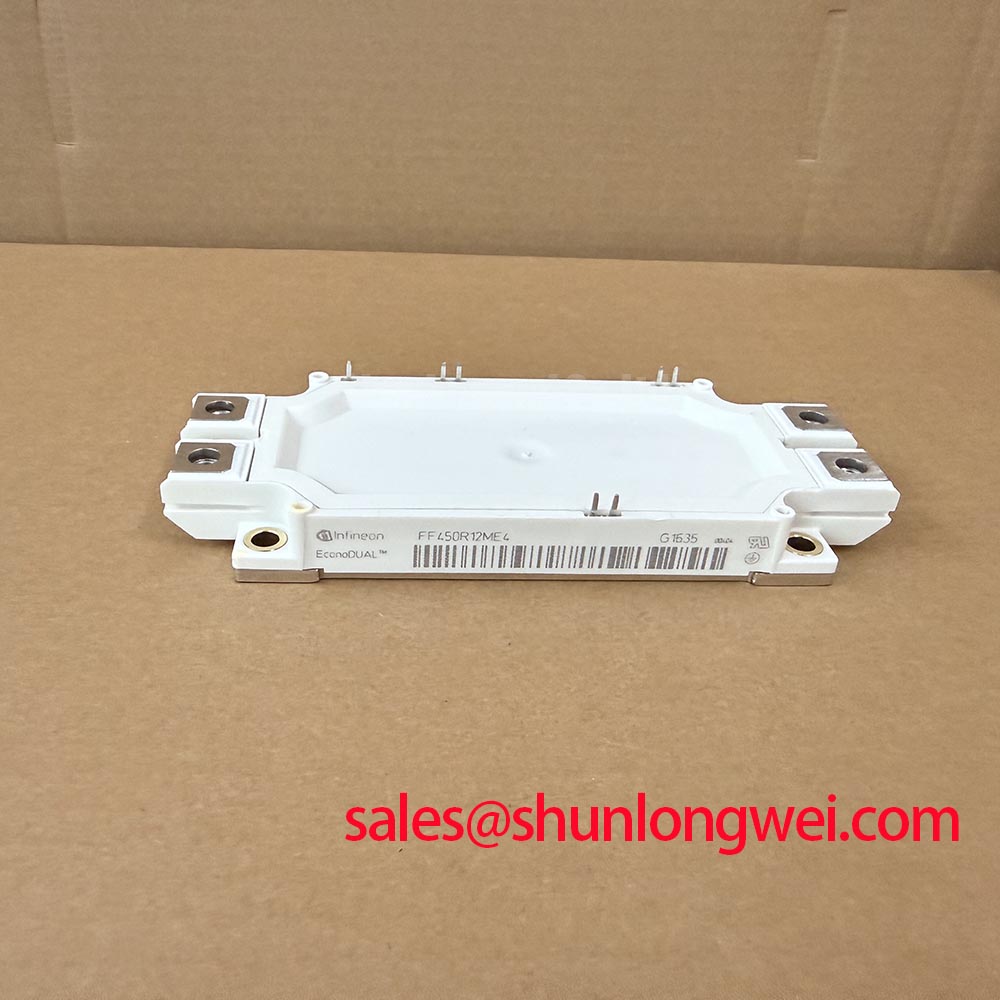

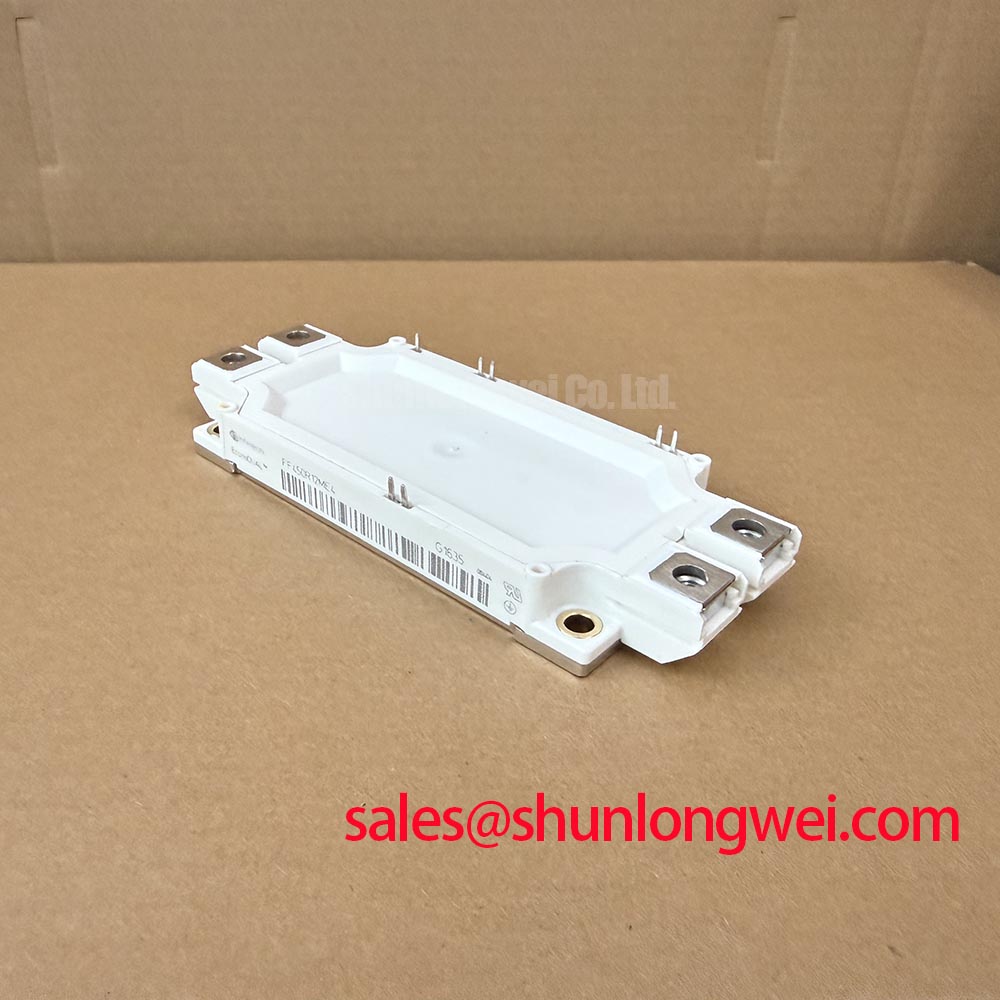

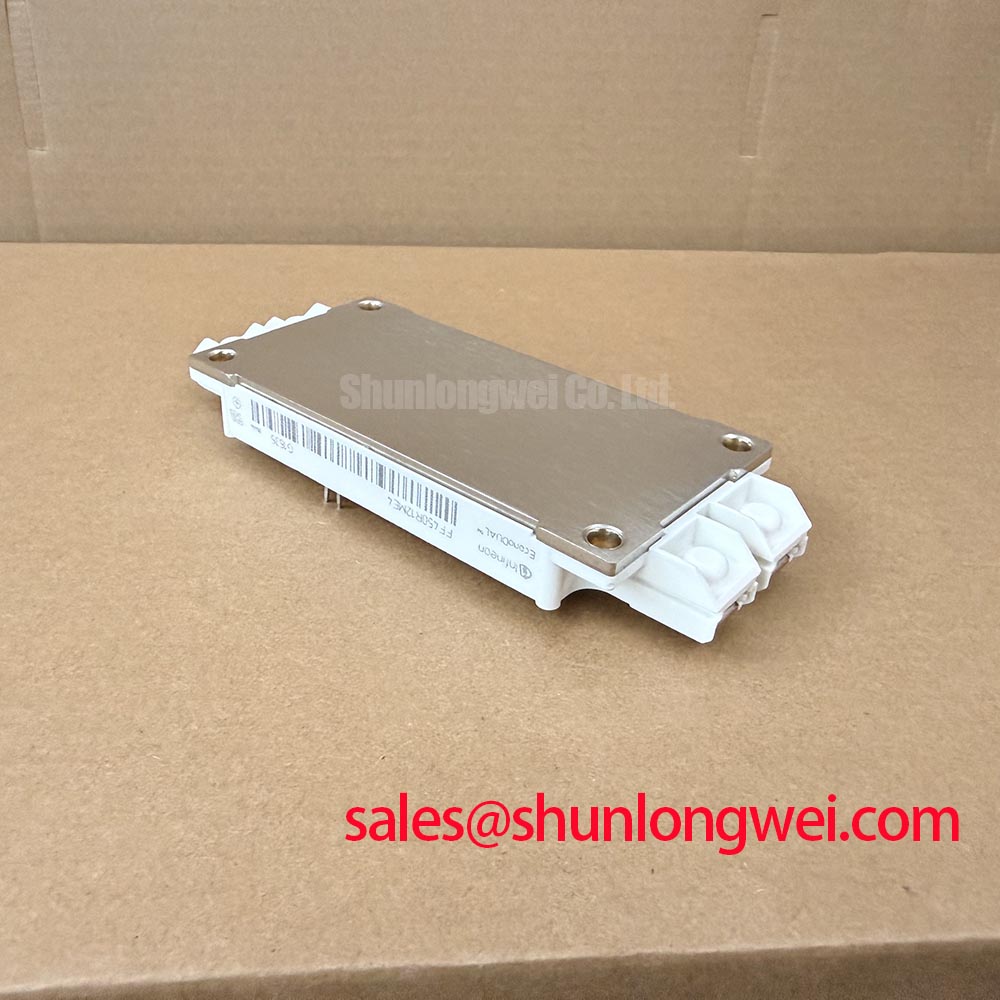

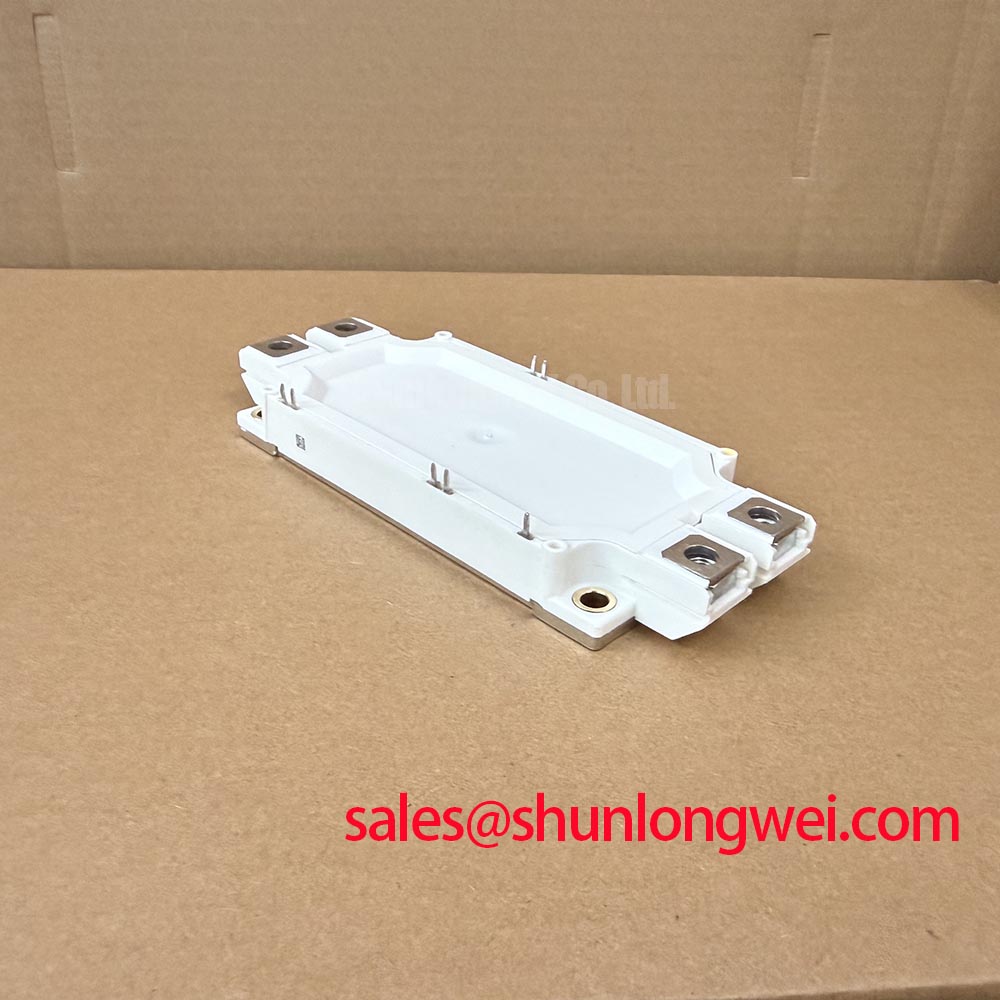

FF450R12ME4 IGBT Module: Powering High-Efficiency Industrial & Renewable Energy Systems
Looking for a robust, high-current IGBT module for your next-generation inverter or industrial drive? The FF450R12ME4 from Infineon Technologies is engineered for demanding industrial, renewable, and transportation applications, delivering superior performance, reliability, and efficiency. Discover why this power module is favored by engineers worldwide for high-power conversion.
FF450R12ME4: Product Highlights & Technical Specifications
The FF450R12ME4 is a state-of-the-art IGBT module from Infineon, a global leader in semiconductor technology. It's part of the EconoDUAL™ 3 series, renowned for its high current capacity, ruggedness, and advanced features. Key specifications include:
- Collector-Emitter Voltage (V_CES): 1200V
- Collector Current (I_C): 450A
- Configuration: Dual IGBT (half-bridge) with fast anti-parallel freewheeling diodes
- Package: EconoDUAL™ 3
- Isolation Voltage: 4000V AC (1 minute)
- Low Saturation Voltage (V_CE(sat)): ~1.7V (typical)
- Operating Junction Temperature: -40°C to +150°C
- Integrated NTC Thermistor: For intelligent temperature monitoring
- Optimized for Low Switching and Conduction Losses: Suitable for high-efficiency power conversion
These features make the FF450R12ME4 a top choice for systems that demand high reliability and performance in harsh environments, ensuring your power electronics operate smoothly.
Real-World Industry Applications of the FF450R12ME4
The FF450R12ME4's high power density and advanced protection features make it popular in several key sectors:
1. Renewable Energy (Wind and Solar Inverters)
This IGBT module is widely used in central and string inverters for solar and wind farms. It provides efficient and reliable DC/AC conversion for grid integration, maximizing energy yield and ensuring stable power output.
2. Industrial Motor Drives
Variable frequency drives (VFDs) and servo drives in heavy industry, such as steel mills, mining, and large-scale manufacturing, rely on the FF450R12ME4 for its high current capacity and fast switching capabilities.
3. Rail and Transportation
Traction inverters for electric trains, trams, and e-buses benefit from the module’s rugged EconoDUAL™ 3 package, high surge current tolerance, and long service life, crucial for reliable electric vehicle power.
4. Uninterruptible Power Supplies (UPS)
Critical infrastructure applications, including data centers and hospitals, utilize this Infineon module in high-power UPS systems for stable, efficient backup power, safeguarding essential operations.
5. Welding Equipment
High-current welding inverters take advantage of the FF450R12ME4’s robust switching and thermal performance for precision and durability in demanding industrial welding tasks.
Explore more IGBT module applications in renewables and industry here.
Technical Advantages & Unique Features of FF450R12ME4
The FF450R12ME4 stands out due to several key technical advantages:
- EconoDUAL™ 3 Package: Offers reduced stray inductance, reliable press-fit contacts, and easy integration for compact, maintenance-friendly system designs.
- Low Thermal Resistance: Advanced baseplate and internal layout ensure efficient heat dissipation, supporting high continuous load and extending module lifespan.
- Integrated NTC Thermistor: Enables real-time temperature monitoring for advanced system protection and predictive maintenance, enhancing overall system reliability.
- High Short Circuit Withstand Capability: Enhances system robustness against faults and transient overloads, a critical feature for demanding industrial environments.
- Infineon’s 4th Generation IGBT Technology: Delivers improved efficiency, lower switching losses, and superior ruggedness compared to previous generations, leading to higher system performance.
These advantages position the FF450R12ME4 at the forefront of the industry, competing with innovations from global leaders like Mitsubishi, Fuji Electric, and ON Semiconductor, all focused on increasing efficiency and reliability in high-power modules.
FF450R12ME4: Comparison with Similar IGBT Modules
How does the FF450R12ME4 compare with other leading options in the market?
- Mitsubishi CM450DU-24F: 1200V, 450A. A robust alternative, but Infineon's EconoDUAL™ 3 often offers easier system integration and superior thermal management.
- Fuji 2MBI450U4H-120: 1200V, 450A. Both modules are widely used in industrial inverters, but the FF450R12ME4 is often preferred for its lower V_CE(sat) and advanced package design, leading to higher efficiency.
- Semikron SKM450GB123D: 1200V, 450A. Comparable specifications, but Infineon's FF450R12ME4 typically features enhanced switching performance and integrated NTC, providing better overall system control and protection.
Compare IGBT modules for industrial and renewable applications in detail.
Conclusion & Procurement Guide for the FF450R12ME4
The FF450R12ME4 IGBT module from Infineon is a top-tier solution for high-power industrial drives, renewables, and transportation systems. Its combination of high current capability, rugged design, and advanced thermal management make it a reliable choice for today’s most demanding power conversion needs.
