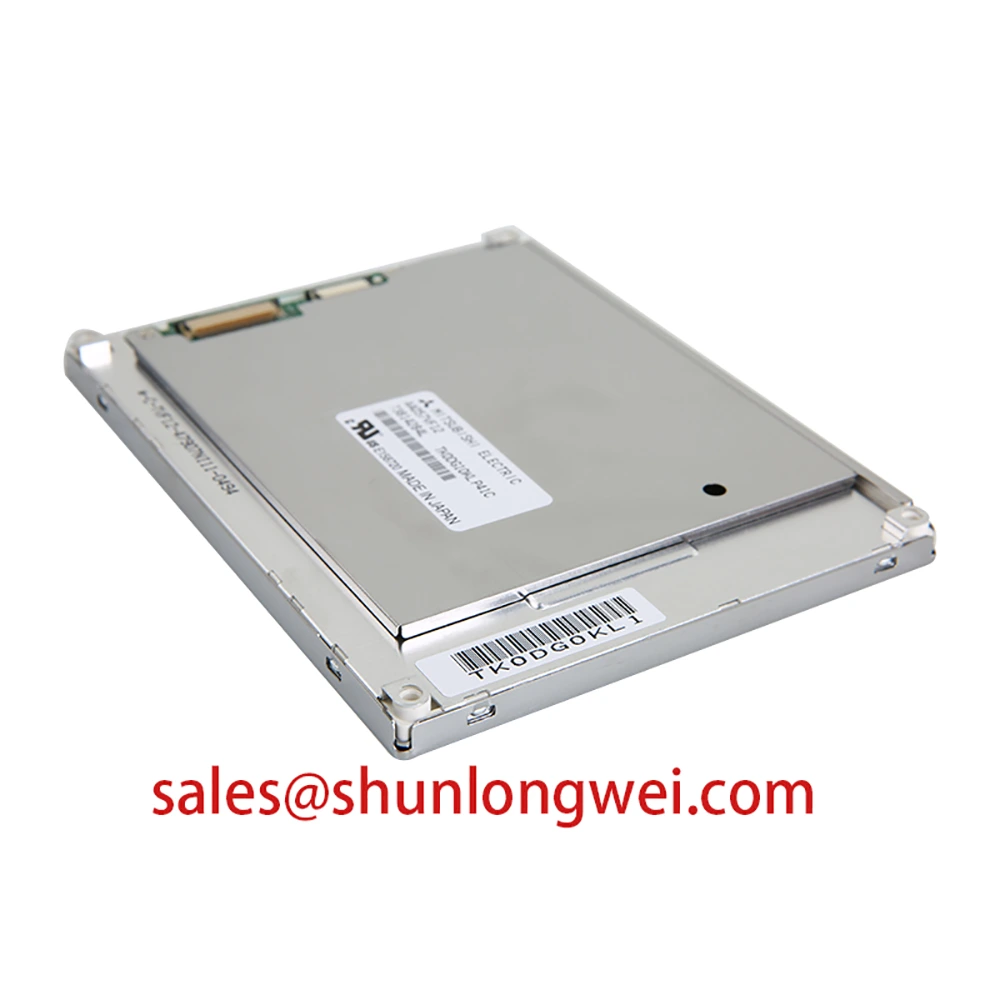

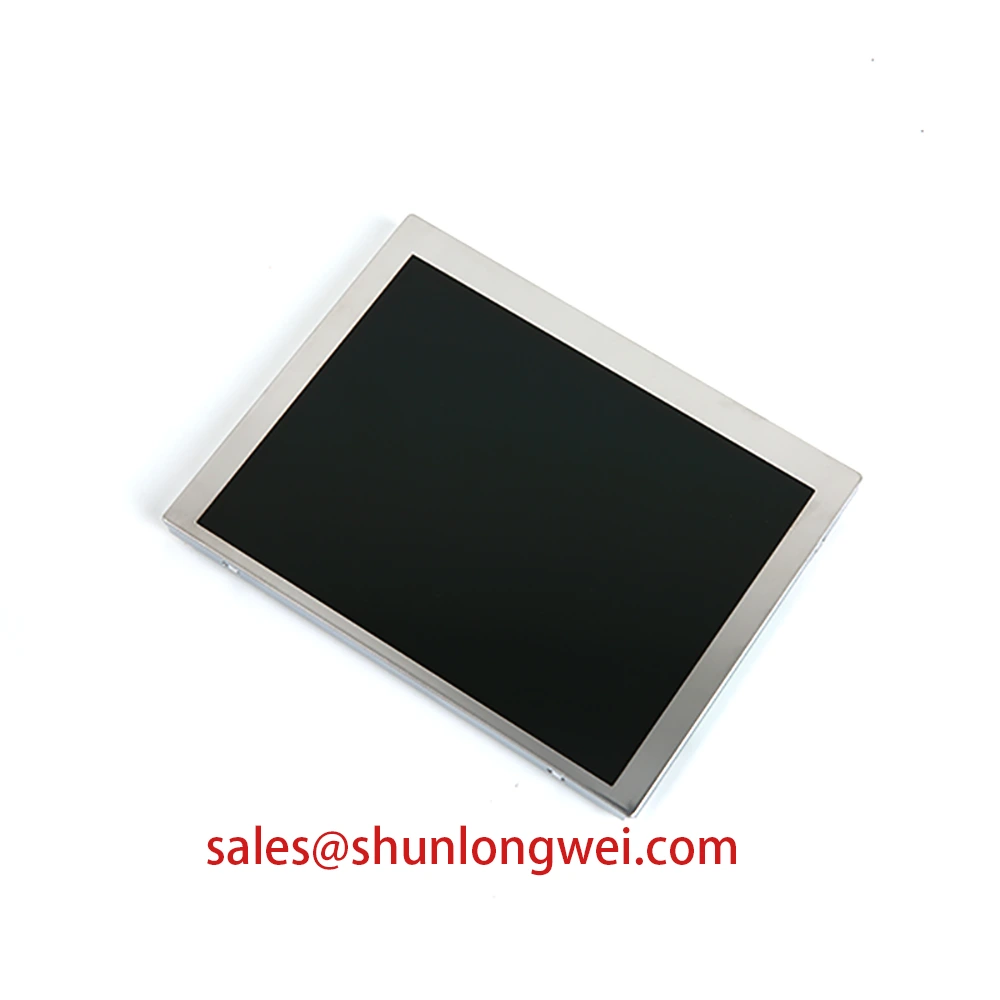

Model P/N: G057VCE-TH1
Diagonal Size: 5.7 inch
Panel Type: a-Si TFT-LCD (Amorphous Silicon Thin-Film Transistor Liquid Crystal Display)
Resolution: 640 (RGB) × 480, VGA
Pixel Format: RGB Vertical Stripe
Active Area: 115.2 (W) × 86.4 (H) mm
Bezel Opening: 118.2 (W) × 89.4 (H) mm
Outline Dimensions: 144 (W) × 104.6 (H) × 12.8 (D) mm
Treatment: Antiglare, Hard coating (3H)
Luminance: 450 cd/m² (Typical)
Contrast Ratio: 800:1 (Typical) (TM)
View Direction: Symmetry
Response Time: 13ms (Typical) (Tr) / 12ms (Typical) (Td)
Viewing Angle: 88/88/88/88 (Typical) (CR≥10) Left / Right / Up / Down
Operating Mode: VA (Vertical Alignment), Normally Black, Transmissive
Support Color: 262K (74% DCI-P3)
Light Source: WLED (White Light Emitting Diode), 50,000 hours, With LED Driver
Weight: 151±8g
Designed For: Industrial Applications
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: Parallel RGB (1 ch, 6-bit), 40 pins Connector
Power Supply: 3.3V (Typical)
Environment:
Operating Temperature: -30 ~ 85 °C
Storage Temperature: -40 ~ 85 °C
