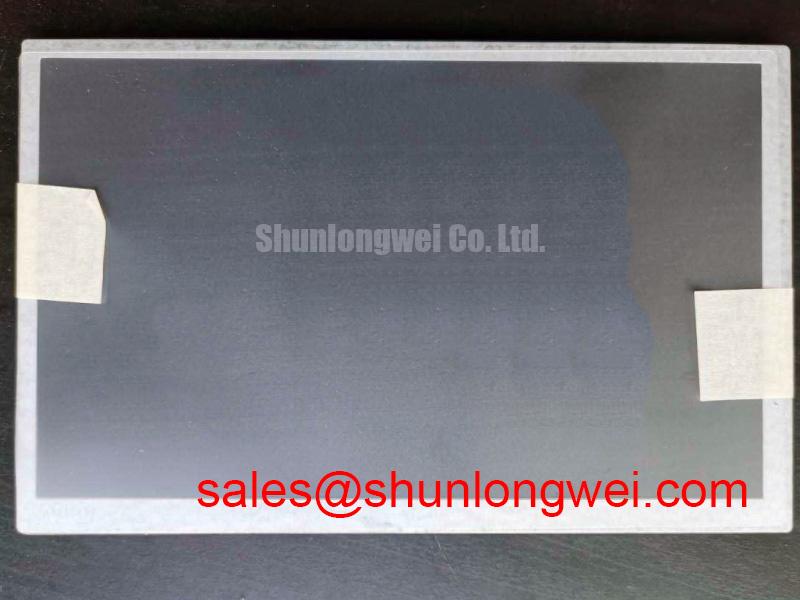

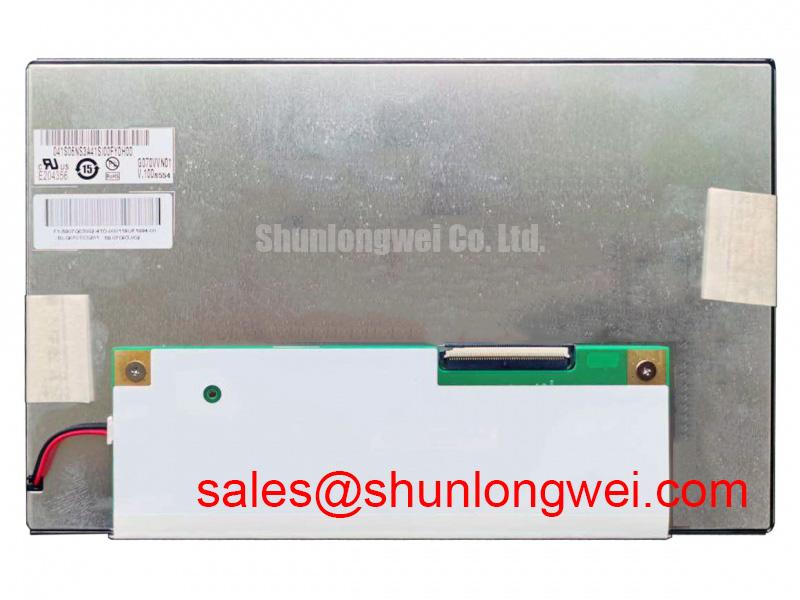

AUO G070VVN01.1 | Industrial 7-inch LCD with Superior Wide Viewing Angles
The AUO G070VVN01.1 is not just another 7-inch display; it is a purpose-built solution for industrial applications where visual clarity, reliability, and viewing flexibility are non-negotiable. Engineered by AU Optronics, this WVGA (800x480) TFT-LCD module delivers consistent performance across a wide range of operating conditions, making it a trusted choice for Human Machine Interfaces (HMI), medical devices, and sophisticated test equipment.
Technical Deep Dive: Where the G070VVN01.1 Excels
- Advanced Wide Viewing Angle Technology: The standout feature of the AUO G070VVN01.1 is its symmetrical 80/80/80/80 viewing cone. In practical terms, this eliminates the frustrating color inversion and contrast shifts common in lower-grade TN panels. Operators can view critical data from virtually any angle—top, bottom, left, or right—without misinterpretation. This feature is fundamental for applications requiring multi-person viewing or unconventional mounting orientations, ensuring data integrity is always maintained.
- Industrial-Grade Environmental Hardiness: This display is engineered to thrive where consumer-grade panels fail. A wide operating temperature range of -20°C to +70°C guarantees stable operation in environments from refrigerated storage to sun-exposed vehicle cabins. Paired with a long-life WLED backlight rated for 20,000 hours, the G070VVN01.1 is designed for longevity, significantly reducing maintenance cycles and the total cost of ownership.
Multi-Dimension Application Scenarios & Value
- Human Machine Interfaces (HMI) & Process Control: In a busy factory setting, operators are constantly moving. The wide viewing angle performance ensures that machine status, alarms, and process values are clearly legible from a distance or an oblique angle, preventing costly operational errors.
- Medical Monitoring & Diagnostic Systems: For patient monitoring or diagnostic readouts, color accuracy and high contrast are paramount. The 800:1 contrast ratio of the AUO G070VVN01.1 provides sharp, clear differentiation between data points, empowering clinicians to make confident decisions without being restricted to a narrow viewing position.
- Portable Test and Measurement Instruments: Field technicians rely on equipment that works flawlessly in any condition. The robust construction and wide temperature tolerance of this industrial LCD module ensure that it delivers a reliable user interface whether used in a controlled lab or for on-site diagnostics.
- Vehicle Information & Fleet Management Displays: The durability and consistent brightness of the G070VVN01.1 make it ideal for in-cab displays. The Low-Voltage Differential Signaling (LVDS) interface provides excellent noise immunity, crucial in the electromagnetically noisy environment of a vehicle.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | AUO |
| Model | G070VVN01.1 |
| Screen Size | 7.0 inch |
| Resolution | 800(RGB)×480, WVGA |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Brightness | 600 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Signal Interface | LVDS (1 ch, 6-bit), 20 pins |
| Backlight | WLED, 20K hours (Typ.) |
Frequently Asked Questions (FAQ)
- What makes the G070VVN01.1 a better choice than a consumer tablet display?
While consumer displays may offer higher resolution, they lack the essential features for industrial deployment. The G070VVN01.1 guarantees its specifications across a wide temperature range, features a long-term available form factor, and is built with components designed for 24/7 operation, ensuring system reliability and a lower total cost of ownership. - How does the LVDS interface benefit my design?
The LVDS interface simplifies system integration by reducing the number of wires needed compared to older parallel TTL interfaces. This results in lower electromagnetic interference (EMI), which makes achieving system-level EMC certification easier and allows for longer cable runs between the display and the controller board.
For demanding projects that require a balance of visual performance, ruggedness, and long-term reliability, the AUO G070VVN01.1 is an exceptional choice. To discuss your specific application needs or to request a sample, please contact our technical support team. We can help you integrate this high-performance display into your next design.
