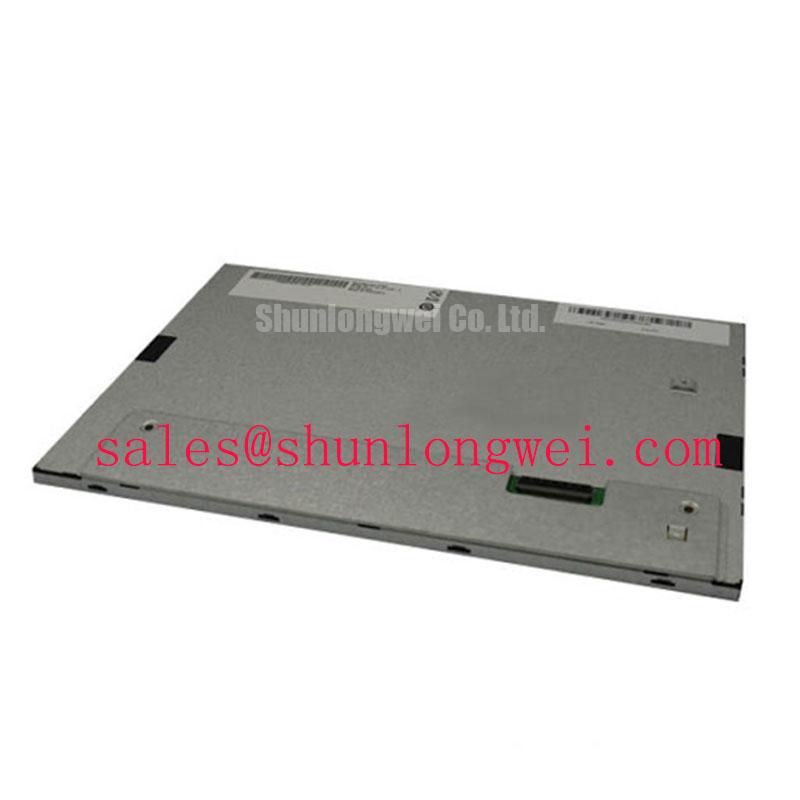

AUO G101EAN02.2 LCD Display

G101EAN02.2 AUO 10.1 inch LCM 1280×800 500 800:1 89/89/89/89 16.7M WLED LVDS;

· Categories: LCD Display
· Manufacturer: AUO
· Price: US$
· Date Code: 2024+
. Available Qty: 621
Like
Tweet
Pin It
4k
Email: sales@shunlongwei.com
Whatsapp: 0086 189 2465 1869

Contact us To Buy Now!

G101EAN02.2 Specification

Manufacturer AUO

Model Name G101EAN02.2

Screen Size 10.1 inch

Screen Type LCM ,   a-Si TFT-LCD

Pixel Number 1280(RGB)×800   (WXGA)  149PPI

Arrangement RGB Vertical Stripe

Active Area(mm) 216.96 × 135.6 (H×V)

Outline(mm) 227.72 × 147.8 × 4.8 (H×V×D)

Treatment Hard coating

Luminance 500 cd/m² (Typ.)

Contrast Ratio 800 : 1 (Typ.) (TM)

Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down

Response29 (Typ.)(Tr+Td) ms

Good View at Symmetry

Work Mode AHVA, Normally Black, Transmissive

Color Depth16.7M   50% NTSC

Backlight WLED , 50K hours , With LED Driver

Used for Industrial

Refresh Rate 60Hz

Touchscreen Without

Signal Type LVDS (1 ch, 8-bit) , 40 pins Connector

Voltage Supply 3.3V (Typ.)

Max. Ratings Storage Temp.: -20 ~ 70 °C    Operating Temp.: -20 ~ 70 °C
