Content last revised on October 12, 2024

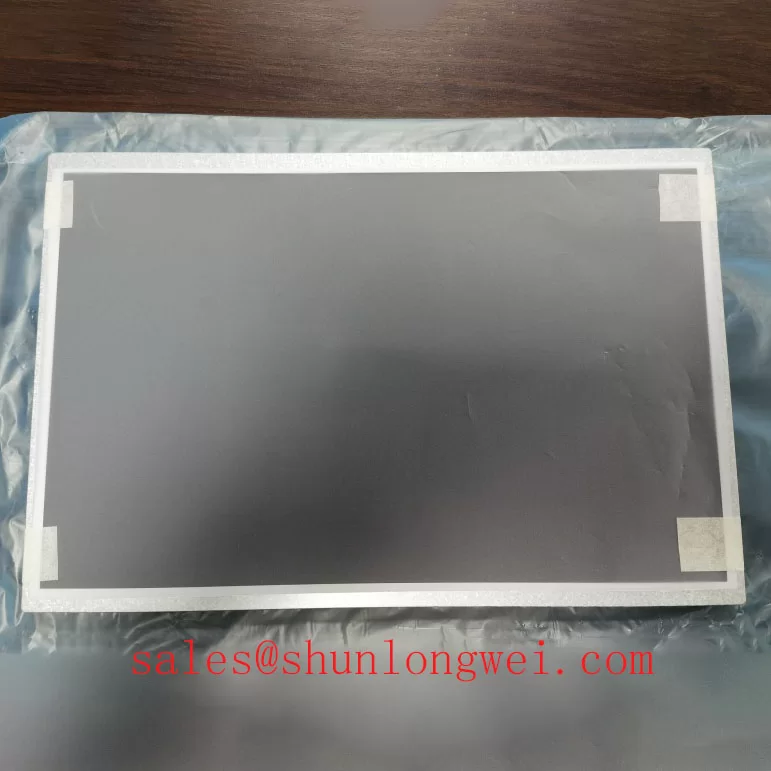

- Brand: Innolux
- Model: P/NG121ICE-LH1
- Diagonal Size: 12.1"
- Panel Type: a-Si TFT-LCD, LCM
- Resolution: 1280(RGB)×800, WXGA, 124PPI
- Pixel Format: RGB Vertical Stripe
- Active Area: 261.12(W)×163.2(H) mm
- Bezel Opening: 264.12(W)×166.2(H) mm
- Outline Size: 278(W)×184(H)×10.5(D) mm
- Brightness: 1000 cd/m² (Typical)
- Viewing Angle: 88/88/88/88 (Left / Right / Up / Down, Typical, CR≥10)
- Best View on: Symmetry
- Display Colors: 262K/16.7M, 72% NTSC
- Frequency:
- 60Hz
- 120Hz (60HZ Input) with Embedded MEMC Circuit
- 120Hz+120Hz : 120Hz Panel+120Hz Backlight
- 240Hz (60HZ Input) with Embedded MEMC Circuit
- Weight: 470/490g (Typ./Max.)
- Surface Treatment: Antiglare, Hard coating (3H)
- Contrast Ratio: 1000:1 (Typical, TM)
- Display Mode: AAS, Normally Black, Transmissive
- Response Time: 12/8 ms (Typical, Tr/Td)
- Lamp Type: WLED, 50K hours, With LED Driver
- Touch Screen: Without
- Application: Industrial Outdoor High Brightness
- Signal Interface: LVDS (1 ch, 6/8-bit), 30 pins Connector
- Input Voltage: 3.3V (Typical)
- Environment:
- Operating Temp.: -30 ~ 80 °C
- Storage Temp.: -30 ~ 85 °C
