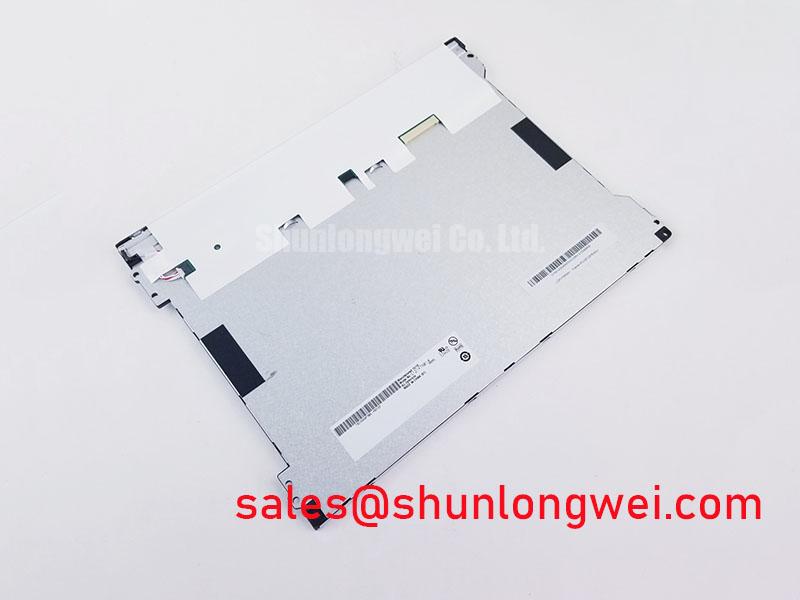

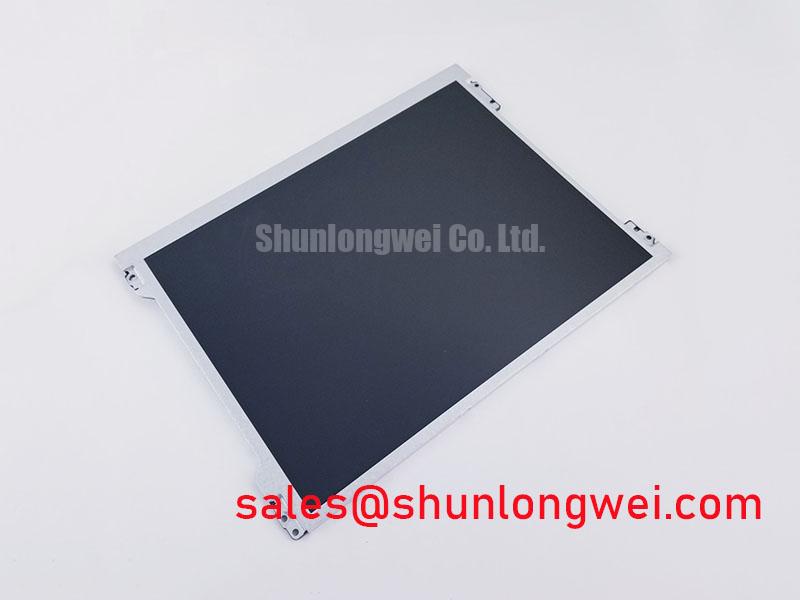

AUO G121XTN01.0 | Robust 12.1-inch XGA Industrial LCD Display
The AUO G121XTN01.0 is an industry-standard 12.1-inch TFT-LCD panel engineered for longevity, reliability, and consistent performance in demanding environments. It represents a cornerstone solution for system designers who require a proven, cost-effective display for Human-Machine Interfaces (HMIs), control systems, and specialized instrumentation. This panel prioritizes operational stability over superfluous features, making it a pragmatic choice for long-lifecycle industrial and medical applications.
Product Highlights Overview
- Classic XGA Resolution: The 1024x768 pixel format provides ample screen real estate for detailed schematics, complex control menus, and clear data visualization without requiring significant processing overhead.
- Industrial-Grade Temperature Range: With an operating temperature range of -20°C to 70°C, the G121XTN01.0 is built to withstand the thermal challenges of factory floors, unconditioned enclosures, and outdoor-adjacent equipment.
- Extended Backlight Longevity: The WLED backlight system is rated for 50,000 hours of operation, ensuring a low total cost of ownership and minimizing the need for maintenance and replacement cycles.
- Standardized LVDS Interface: Equipped with a 1-channel, 6-bit LVDS interface, this display ensures seamless integration with a wide array of industrial motherboards and single-board computers, simplifying system design and development.
- Enhanced Readability: An anti-glare surface treatment minimizes specular reflections from overhead lighting, improving operator focus and reducing eye strain in typical industrial settings.
Key Parameter Snapshot
For engineers requiring immediate technical data for system evaluation, the following table summarizes the core specifications of the AUO G121XTN01.0. For complete details, you can Download the G121XTN01.0 Datasheet.
| Parameter | Specification |
|---|---|
| Manufacturer | AUO |
| Screen Size | 12.1 inches |
| Resolution | 1024(RGB)×768, XGA |
| Technology | a-Si TFT-LCD |
| Brightness | 300 cd/m² (Typ.) |
| Viewing Angle (L/R/U/D) | 80/80/60/70 (Typ.) |
| Interface Type | LVDS (1 ch, 6-bit) |
| Operating Temperature | -20 ~ 70 °C |
| Backlight Lifetime | 50,000 hours (Min.) |
Application Scenarios & Engineering Value
The AUO G121XTN01.0 is not just a component; it's a solution engineered to solve specific challenges across various sectors. Its robust design makes it an ideal choice for a range of industrial LCD displays.
- Industrial Automation HMIs: On the factory floor, reliability is paramount. The wide operating temperature and 50K-hour backlight life ensure that control panels for CNC machines, PLCs, and production line monitoring systems remain operational shift after shift, year after year.
- Medical Diagnostic Equipment: For non-diagnostic viewing applications in medical devices, the G121XTN01.0 offers a stable, long-term supply platform. Its proven reliability is critical for equipment that undergoes extensive and costly certification processes.
- Test & Measurement Instruments: The standard XGA resolution and LVDS interface make it a straightforward drop-in solution for oscilloscopes, spectrum analyzers, and other benchtop instruments where data clarity and component consistency are key design requirements.
Technical Deep Dive: The Engineering Behind the Specs
Understanding the technology behind the numbers reveals why the G121XTN01.0 is a trusted workhorse in the industry.
The panel is built upon Amorphous Silicon (a-Si TFT) technology. While newer technologies exist, a-Si is a mature, highly refined process known for its exceptional reliability and cost-effectiveness. For industrial applications where operational uptime is more critical than cutting-edge pixel response times, a-Si provides the perfect balance of performance and ruggedness. This is a core principle discussed in the engineer's guide to TFT LCDs.
Furthermore, the WLED backlight system is a significant advantage. Unlike older CCFL backlights, WLEDs offer superior energy efficiency, which translates to lower power consumption and reduced heat generation within the system enclosure. This simplifies thermal management and contributes directly to the panel’s impressive 50,000-hour lifespan, a key factor in calculating the long-term reliability of any HMI.
Frequently Asked Questions (FAQ)
1. The datasheet specifies a 6 o'clock viewing direction. What are the practical implications?
This indicates the panel's contrast and color are optimized for viewing from a straight-on or slightly below-center position. The horizontal viewing angles (80° left/right) are excellent for side-to-side visibility. However, for applications requiring optimal image quality when viewed from a sharp upward angle, a panel with IPS technology may be a more suitable choice. For most fixed-mount HMI applications, the G121XTN01.0's viewing characteristics are perfectly adequate.
2. Does this display require an external LED driver?
Yes. The G121XTN01.0 is a display panel that includes the TFT glass and the WLED backlight unit. It requires a separate, external LED driver board to supply the necessary voltage and current to the backlight. The LVDS interface handles the video signal only. This modular approach is standard for industrial displays and allows for greater flexibility in system design.
For expert guidance on selecting the right display and integration components for your specific project, please contact our technical team for a consultation.
