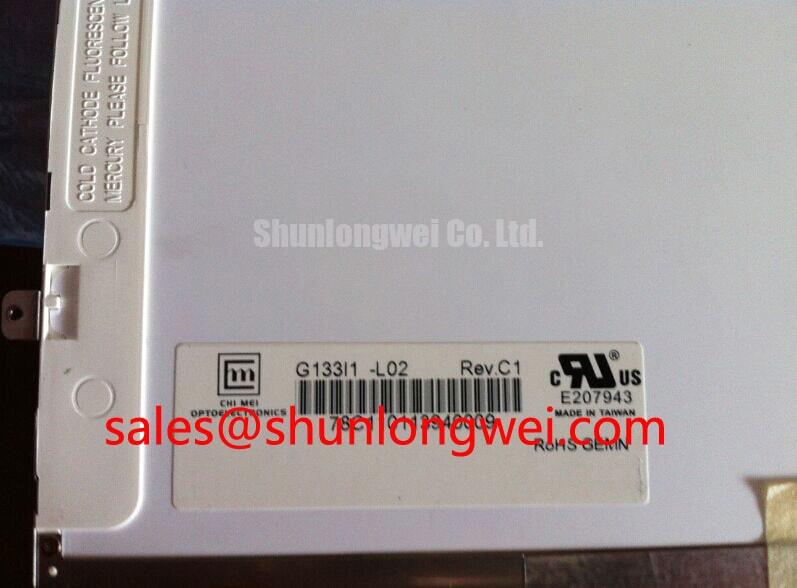

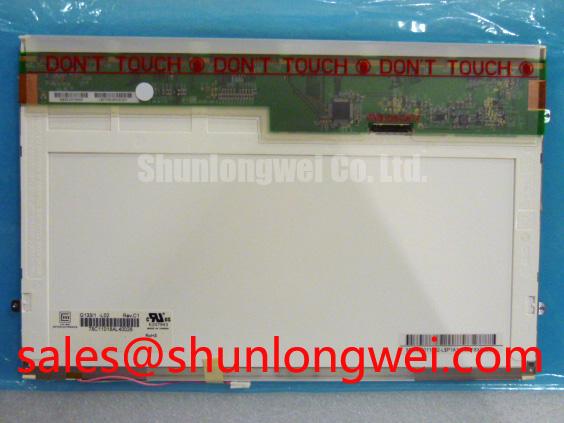

G133I1-L02: 13.3-inch WXGA TFT Display Engineered for Extreme Temperature Environments
Introduction and Key Highlights
The Innolux G133I1-L02 is a 13.3-inch WXGA color TFT-LCD module engineered for exceptional operational reliability in fluctuating and extreme temperature environments. This display delivers a robust solution for system designers requiring consistent performance where standard panels would fail. With key specifications of 13.3” WXGA (1280x800) | -30 to +80°C Operating Temp. | 400 cd/m² Brightness | 700:1 Contrast Ratio, it provides tangible engineering benefits including enhanced system uptime and superior data legibility. For engineers questioning if a display can handle unconditioned outdoor or industrial settings, the G133I1-L02's certified wide temperature range provides the definitive answer. For industrial Human-Machine Interface (HMI) systems deployed in environments with extreme temperature swings, the G133I1-L02 is a benchmark for operational reliability.
Application Scenarios & Value
System-Level Reliability in Demanding Operational Environments
The G133I1-L02 is designed for applications where environmental control is either impossible or cost-prohibitive. Its primary value lies in delivering unwavering performance across a vast thermal spectrum. What defines the G133I1-L02's core value? Its ability to operate reliably across a -30°C to +80°C temperature range.
Consider the challenge of designing an HMI for an outdoor logistics terminal or a control panel on heavy agricultural machinery. In these scenarios, the display faces sub-zero temperatures in winter and direct sun exposure in summer. The G133I1-L02's -30°C cold-start capability directly mitigates the risk of screen freezing, slow response, or backlight failure, a common issue for lesser-grade panels. Similarly, its +80°C tolerance prevents image distortion or blackouts under high heat loads. This wide operational window simplifies the overall system design by reducing the need for auxiliary heaters or cooling fans, thereby lowering power consumption, cost, and potential points of failure.
Furthermore, the Super MVA technology provides symmetrical 80-degree viewing angles (U/D/L/R). This is critical in applications like industrial control rooms or on-vehicle systems where operators must view the screen from off-axis positions. The combination of environmental resilience and excellent optical performance makes it an ideal component for industrial PCs (IPCs), marine electronics, and outdoor kiosks. For systems requiring a similar level of robustness in a more compact form factor, the related G121I1-L01 offers a 12.1-inch solution.
Key Parameter Overview
Decoding the Specifications for Environmental Resilience
The technical specifications of the G133I1-L02 confirm its suitability for demanding industrial applications. The parameters are functionally grouped below to provide a clear overview for system integration and performance evaluation.
| Functional Area | Parameter | Value | Engineering Insight |
| Optical Characteristics | Screen Size | 13.3 inch | Provides ample area for detailed graphical user interfaces. |
| Resolution | 1280 (RGB) x 800 (WXGA) | Offers clear, sharp imagery suitable for data-rich HMIs. | |
| Luminance | 400 cd/m² (Typ.) | Ensures readability in typical indoor industrial and moderately bright outdoor conditions. | |
| Contrast Ratio | 700:1 (Typ.) | Delivers deep blacks and bright whites, crucial for distinguishing fine details on-screen. Think of it as the difference between seeing washed-out gray text and crisp, black text on a white background. | |
| Electrical Interface | Interface Type | LVDS (1 ch, 6-bit) | A robust, common interface that simplifies connection to most industrial motherboards and single-board computers. |
| Supply Voltage | 3.3V (Typ.) | Standard logic voltage simplifies power supply design. | |
| Environmental Resilience | Operating Temperature | -30 ~ 80 °C | A key differentiator; enables deployment in unconditioned environments without external thermal management. |
| Storage Temperature | -30 ~ 80 °C | Guarantees component integrity during transport and storage in harsh conditions. |
Download the G133I1-L02 datasheet for detailed specifications and performance curves.
Industry Insights & Strategic Advantage
Meeting the Demands of Modern Industrial and Outdoor Systems
The deployment of advanced automation and IoT technologies is pushing sophisticated electronics into environments previously considered too harsh. The G133I1-L02 directly addresses this trend. Unlike consumer-grade displays that often fail outside a narrow 0-50°C window, this module's industrial specification provides a strategic advantage by significantly increasing the reliability and operational envelope of the end product. This resilience translates to a lower total cost of ownership (TCO), as it minimizes field failures, service calls, and the associated reputational damage. By selecting a component engineered for these conditions from the outset, designers can build systems that are inherently more robust and competitive in the demanding industrial marketplace.
Frequently Asked Technical Questions
What is the practical benefit of the G133I1-L02's -30°C to +80°C operating temperature range?
This range allows the display to function reliably in outdoor settings year-round and in unheated/uncooled industrial locations, such as warehouses, factory floors, or in-vehicle cabins. It eliminates the need for costly and complex external heating or cooling systems, directly improving the overall system's reliability and reducing its power budget.
How does the Super MVA technology's 80/80/80/80 viewing angle affect HMI design flexibility?
The wide and symmetric viewing angles ensure that the display's colors and contrast remain consistent regardless of the viewing position. This allows engineers to mount the HMI in locations that are not directly in front of the operator—such as high on a machine or at an angle on a control console—without sacrificing image quality or data legibility for users.
Does the standard LVDS interface on the G133I1-L02 simplify integration with an Industrial PC (IPC)?
Yes, absolutely. LVDS (Low-Voltage Differential Signaling) is a well-established and widely adopted standard on IPC motherboards and single-board computers. Its presence on the G133I1-L02 ensures a high degree of plug-and-play compatibility, which significantly reduces development time, simplifies cabling, and enhances electrical noise immunity compared to older parallel interfaces.
Design & Integration Support
For engineering teams evaluating the G133I1-L02 for new or existing designs, we recommend a thorough review of the official datasheet to ensure all system-level requirements are met. Our team is available to provide additional documentation and support to help streamline your design and procurement process.
