Content last revised on November 1, 2024
Brand AUO

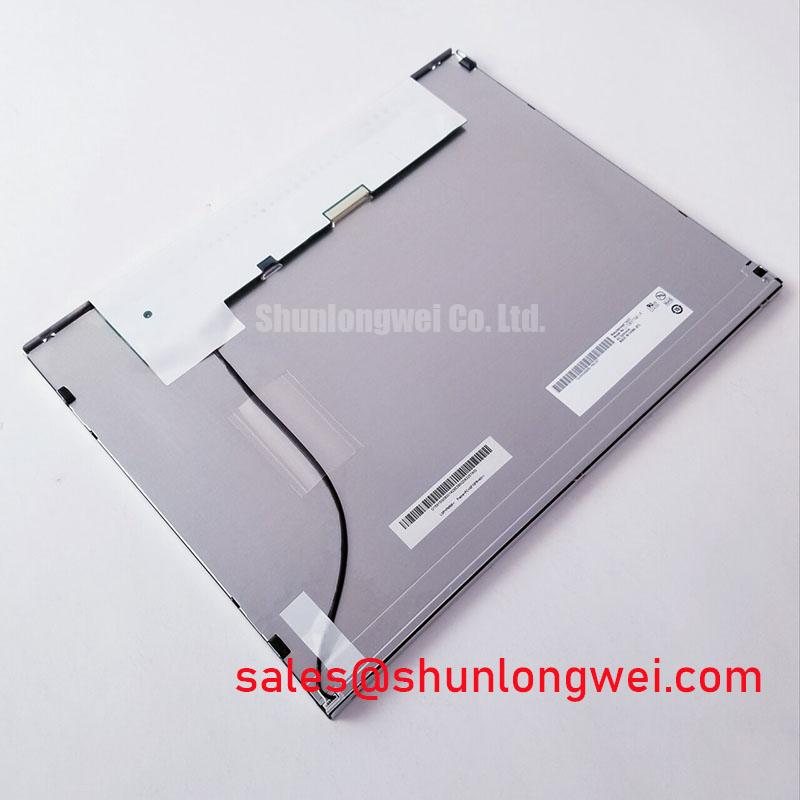

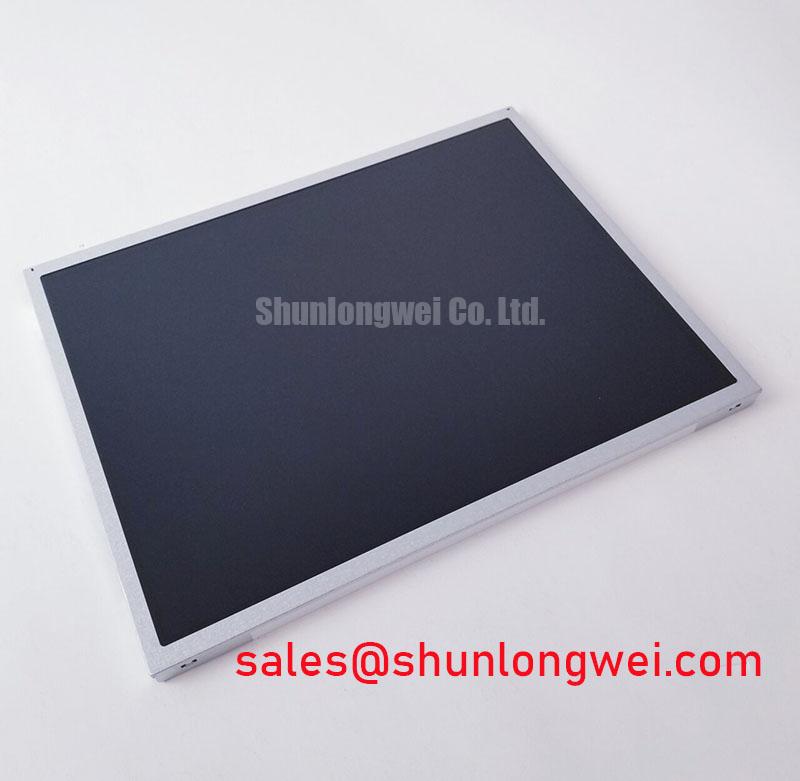

Model G150XTN03.7
Diagonal Size 15.0 inch
Type a-Si TFT-LCD, LCM
Pixel Format 1024(RGB)×768 [XGA] 85PPI
Configuration RGB Vertical Stripe
Active Area 304.128(H)×228.096(V) mm
Outline Dim 326.5(H)×253.5(V) ×10(D) mm
Bezel Area 313.55(H)×237.25(V) mm
Treatment Antiglare, Hard coating (3H)
Luminance 250 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Response Time 6/2 (Typ.)(Tr/Td)
Viewing Angle 45/45/20/40 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode TN, Normally White, Transmissive
Support Color 262K/16.2M 60% NTSC
Light Source WLED , 50K hours , With LED Driver
Weight1.02Kgs (Max.)
Designed For Industrial
Frame Rate 60Hz
Touch Panel Without
Interface Type eDP (1 Lane) , eDP1.2 , 30 pins Connector
Power Supply 3.3V (Typ.)
Environment Operating Temperature: 0 ~ 65 °C ; Storage Temperature: -20 ~ 65 °C
