Content last revised on June 27, 2023

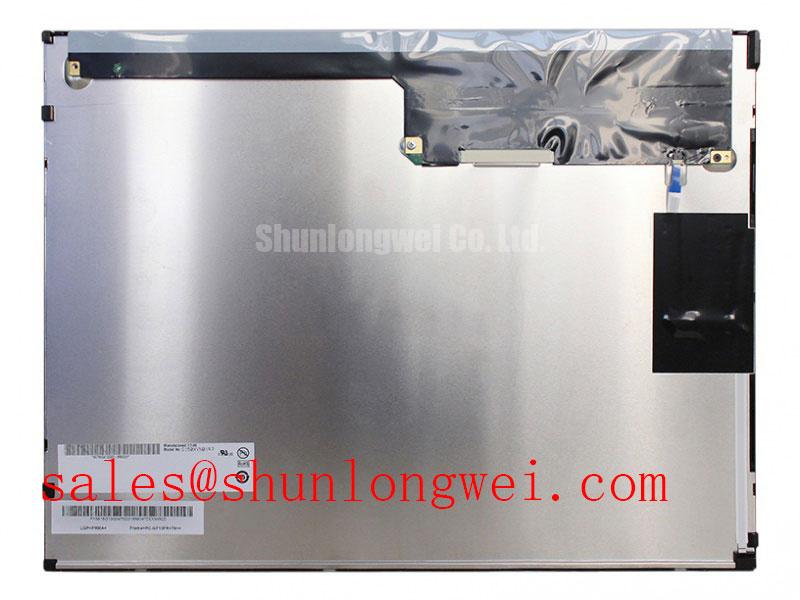

Panel Brand AUO Panel Model G150XVN01.0 Panel Size 15.0"Panel Type a-Si TFT-LCD, LCM Resolution 1024(RGB)×768, XGA, 85PPI Pixel Format RGB Vertical Stripe Display Area 304.128(W)×228.096(H) mm Bezel Opening 307.2(W)×231.1(H) mm Outline Size 326.5(W)×253.5(H) ×10.1(D) mm Surface Antiglare, Hard coating (3H) Brightness 300 cd/m² (Typ.) Contrast Ratio 1500:1 (Typ.) (TM) Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down Display Mode MVA, Normally Black, Transmissive IPS Family: AAS, ADS, AHVA, FFS, IPS, New Mode2, PLS, SFT, Vistarich VA Family: ASV, HVA, MVA, PVA, SVA, UV²A, VA Best View on Symmetry Response Time 20/15 (Typ.)(Tr/Td) Display Colors 262K/16.2M 72% NTSC Lamp Type WLED , 50K hours , With LED Driver Frequency 60Hz Touch Screen Without Panel Weight 950g (Max.)ApplicationIndustrial Signal Interface LVDS (1 ch, 6/8-bit) , 30 pins Connector Input Voltage 3.3V (Typ.) Environment Operating Temp.: -10 ~ 70 °C ; Storage Temp.: -30 ~ 70 °C G150XVN01.0 inverter, G150XVN01.0 power supply, G150XVN01.0 electronic board, G150XVN01.0 VGA board, G150XVN01.0 touchscreen available.
