Content last revised on October 7, 2024

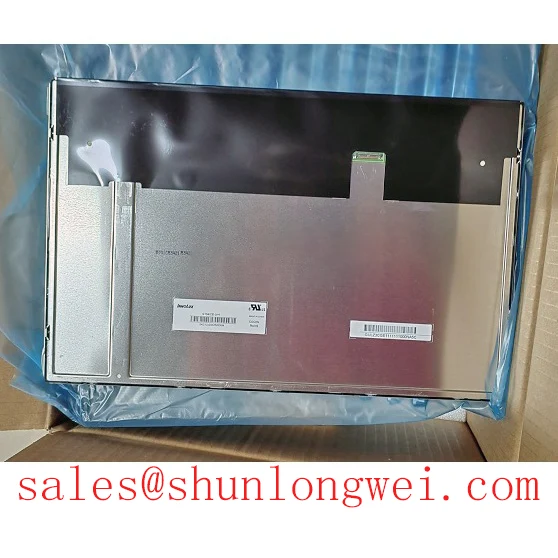

Brand: Innolux
Model: P/NG154ICE-LH1
Diagonal Size: 15.4 inch
Panel Type: a-Si TFT-LCD, LCM
Resolution: 1280(RGB)×800, WXGA, 98PPI
Pixel Format: RGB Vertical Stripe
Active Area: 331.2(W)×207(H) mm
Bezel Opening: 334.5(W)×210.3(H) mm
Outline Dimension: 352.5(W)×230.5(H)×10(D) mm
Luminance: 450 cd/m² (Typical)
View Direction: Symmetry
Viewing Angle: 89/89/89/89 (Left / Right / Up / Down, Typical, CR≥10)
Support Color: 262K/16.7M, 72% NTSC
Weight: 771/809g (Typ./Max.)
Frame Rate: 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit
Treatment: Antiglare, Hard coating (3H)
Contrast Ratio: 700:1 (Typical, TM)
Response Time: 13/12 ms (Typical, Tr/Td)
Operating Mode: AAS, Normally Black, Transmissive
Light Source: WLED, 50K hours, With LED Driver
Designed For: Industrial
Touch Panel: Without
Interface Type: LVDS (1 ch, 8-bit) 30 pins Connector
Power Supply: 3.3V (Typical)
Environment:
Operating Temperature: -30 ~ 80 °C
Storage Temperature: -30 ~ 80 °C
