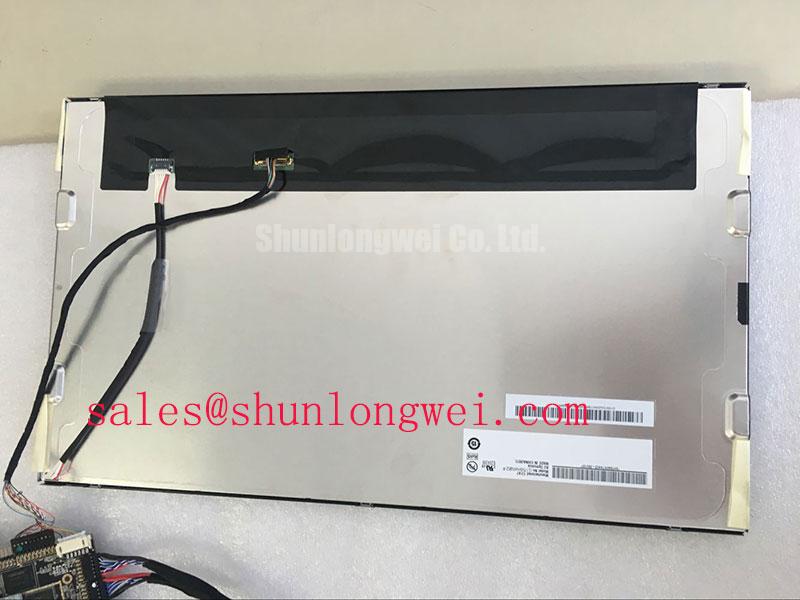

Panel Brand AUO Panel Model G156HAN02.0 Panel Size 15.6" Panel Type a-Si TFT-LCD , LCM Resolution 1920(RGB)×1080, FHD, 141PPI Pixel Format RGB Vertical Stripe Display Area 344.16(W)×193.59(H) mm Bezel Opening 347.06(W)×196.49(H) mm Outline Size 363.8(W)×215.9(H) ×9.3(D) mm Surface Antiglare, Hard coating (3H) Brightness 500 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (TM) Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Display Mode AHVA, Normally Black, Transmissive Best View on Symmetry Response Time 25 (Typ.)(Tr+Td) Display Colors 16.2M 98% sRGB Lamp Type WLED , 50K hours , With LED Driver Frequency 60Hz Touch Screen Without Weight 600/660g (Typ./Max.) Application Signal Interface eDP (2 Lanes) , 30 pins Connector Input Voltage 3.3V (Typ.) Environment Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -20 ~ 70 °C G156HAN02.0 inverter, G156HAN02.0 power supply, G156HAN02.0 electronic board, G156HAN02.0 VGA board, G156HAN02.0 touchscreen available.
