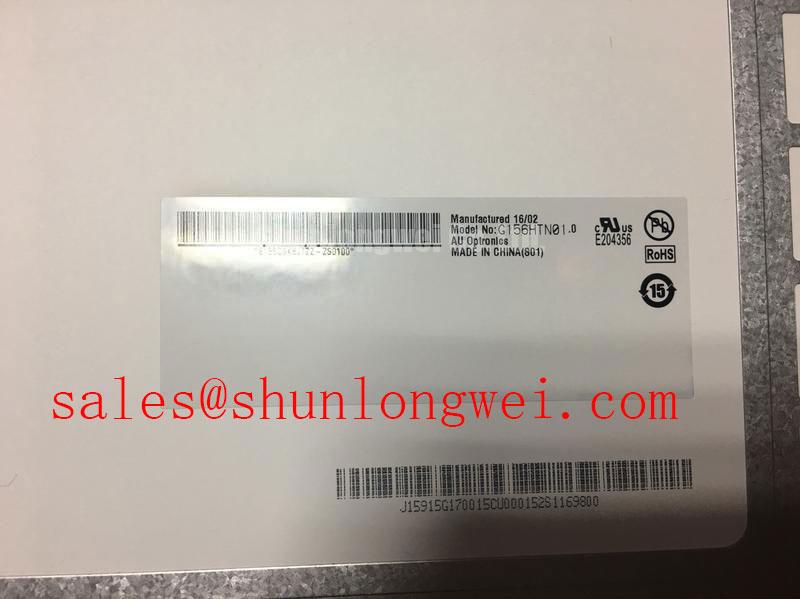

Manufacturer AUO Model Name G156HTN01.0 Screen Size 15.6 inch Screen TypeLCM, a-Si TFT-LCD Pixel Number 1920(RGB)×1080 (FHD) 141PPI Arrangement RGB Vertical Stripe Active Area(mm) 344.16 × 193.59 (H×V) Outline(mm) 359.5 × 224.3 × 3.55 (H×V×D) Treatment Antiglare (Haze 25%) Luminance 300 cd/m² (Typ.) Contrast Ratio 700 : 1 (Typ.) (TM) Viewing Angle 80/80/70/70 (Typ.)(CR≥10) Left / Right / Up / Down Response 6/3 (Typ.)(Tr/Td) ms Good View at 6 o'clock Work Mode TN, Normally White, Transmissive Color Depth 262K 60% NTSC Backlight WLED , 15K hours , With LED Driver Mass 400g (Max.)Used forIndustrial Refresh Rate 60Hz 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit Touchscreen Without Signal Type eDP (2 Lanes) , Connector 30 pins Voltage Supply 3.3V (Typ.) Max. Ratings Storage Temp.: -20 ~ 60 °C Operating Temp.: -10 ~ 60 °C G156HTN01.0 inverter, G156HTN01.0 power supply, G156HTN01.0 electronic board, G156HTN01.0 VGA board, G156HTN01.0 touchscreen available.
