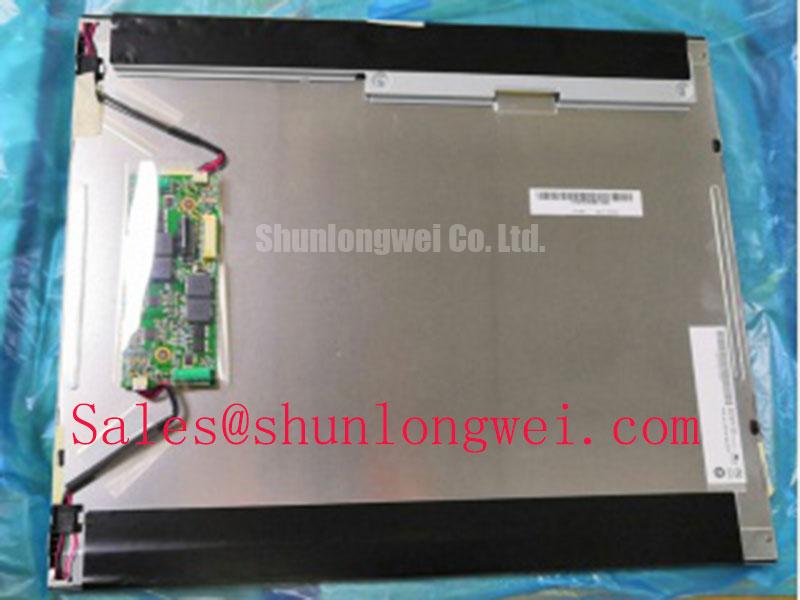

Manufacturer AUO Model Name G190EAN01.001 Screen Size 19.0 inch Screen Type LCM, a-Si TFT-LCD Pixel Number 1280(RGB)×1024 (SXGA) 86PPI Arrangement RGB Vertical Stripe Active Area(mm) 376.32 × 301.056 (H×V) Outline(mm) 396 × 324 × 17.5 (H×V×D) Bezel Area(mm) 380.32 × 305.06 (H×V) Treatment Antiglare Luminance 300 cd/m² (Typ.) Contrast Ratio 1000 : 1 (Typ.) (TM) Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down Response 13/12 (Typ.)(Tr/Td) ms Good View at Symmetry Work Mode AHVA, Normally Black, Transmissive Color Depth16.7M 72% NTSC Backlight 9S6P WLED , 50K hours , With LED Driver Mass1.55Kgs (Typ.)Used forIndustrial Refresh Rate 60Hz 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit Touchscreen Without Signal Type LVDS (2 ch, 8-bit) , 30 pins Connector Voltage Supply 5.0V (Typ.) Max. Ratings Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C G190EAN01.001 inverter, G190EAN01.001 power supply, G190EAN01.001 electronic board, G190EAN01.001 VGA board, G190EAN01.001 touchscreen available.
