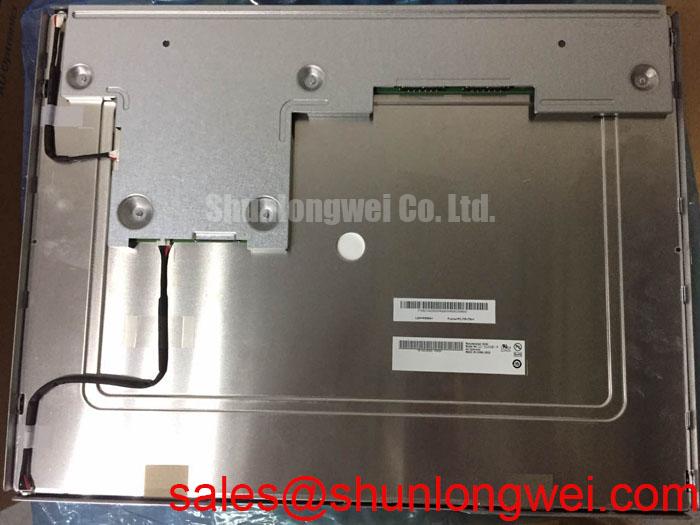

AUO G213QAN01.0 | High-Resolution 800-Nit AHVA Display for Demanding Visuals
The AUO G213QAN01.0 is a specialized 21.3-inch industrial LCD panel engineered for applications where visual precision, clarity, and reliability are non-negotiable. With its unique 4:3 aspect ratio and QXGA resolution, this display delivers exceptional detail, while the high-brightness backlight ensures performance in challenging ambient light conditions. It stands as a premier solution for medical imaging, high-end instrumentation, and specialized control systems.
- Display Technology: 21.3" AHVA (Advanced Hyper-Viewing Angle) TFT-LCD
- Native Resolution: 2048 x 1536 (QXGA)
- Exceptional Brightness: 800 cd/m² for sunlight readability
- Superior Contrast: 2000:1 for deep blacks and detailed grayscale
- Core Applications: Medical diagnostics, marine bridge systems, avionics, outdoor kiosks
Technical Deep Dive: Precision and Performance
The value of the AUO G213QAN01.0 lies in its purpose-built features that directly address critical operational challenges.
-
QXGA Resolution on an AHVA Panel
The Technology: The display combines a high-density 2048x1536 pixel matrix with AUO's AHVA technology, an IPS-type architecture. This ensures not only sharp, pixel-perfect images but also maintains color and contrast integrity across wide viewing angles (89/89/89/89).
Application Value: For a radiologist, this means consistent and accurate grayscale representation of X-rays or CT scans from any viewing position, minimizing diagnostic ambiguity. In a multi-person control room, all operators see the same critical data without color shift or distortion. -
800-Nit Brightness & Robust Backlight
The Technology: A powerful WLED backlight system generates a luminance of 800 nits, coupled with an anti-glare surface treatment. This system is designed for longevity, with a rated lifetime of 50,000 hours.
Application Value: This solves the critical problem of screen washout in high ambient light. It makes the AUO G213QAN01.0 ideal for outdoor payment terminals or marine displays on a sunlit bridge. The long backlight life translates directly to a lower total cost of ownership and reduced maintenance cycles in 24/7 industrial environments.
Application Scenarios & Value Proposition
The technical strengths of the G213QAN01.0 translate into tangible benefits across several demanding industries.
- Medical Diagnostic Displays: The high resolution, superior contrast ratio, and stable grayscale performance make it a perfect fit for primary diagnostic workstations, ensuring compliance with medical imaging standards.
- Avionics & Marine Systems: Its high brightness cuts through cockpit or bridge glare, while the wide viewing angles ensure co-pilots or navigators can cross-reference information accurately. The rugged construction withstands the vibrations and temperature swings common in these environments.
- Industrial Automation & Process Control: In a factory HMI, the clarity of the QXGA display allows for more complex schematics and data points to be shown without clutter. Its durability ensures long-term operational stability, a key requirement for minimizing line downtime. Proper ESD protection is crucial in these settings, and this display is built with that in mind.
Key Technical Parameters
For engineers and system integrators, the following specifications are critical for design-in decisions. For complete details, please review the official datasheet.
| Parameter | Value |
|---|---|
| Model Name | G213QAN01.0 |
| Screen Size | 21.3 inch |
| Resolution | 2048(RGB) × 1536 [QXGA] |
| Brightness | 800 cd/m² (Typ.) |
| Contrast Ratio | 2000:1 (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Interface Type | LVDS (2 ch, 8-bit) |
| Backlight | WLED, 50K hours, with LED Driver |
| Operating Temperature | 0 ~ 60 °C |
Download G213QAN01.0 Datasheet
Frequently Asked Questions
- Is the 4:3 aspect ratio still relevant?
Absolutely. While 16:9 is common in consumer markets, the 4:3 aspect ratio of the G213QAN01.0 is often preferred for legacy system upgrades and for applications like medical imaging and air traffic control, where a more squarish viewing area is optimal for displaying specific data formats. - How does this panel handle reflections?
The combination of a high-brightness backlight and an anti-glare (AG) surface coating is highly effective. The AG coating diffuses ambient light to reduce mirror-like reflections, while the 800-nit brightness ensures the display's own image overpowers any remaining glare. - Does this module meet environmental standards?
Yes, the AUO G213QAN01.0 is manufactured to meet global environmental regulations, including RoHS compliance.
Integrating a high-performance display like the AUO G213QAN01.0 can significantly enhance the functionality and reliability of your system. To discuss your specific project requirements or for volume pricing, please contact our technical team for a consultation. You can also explore our full range of industrial LCDs for other specialized solutions.
