Content last revised on June 28, 2023

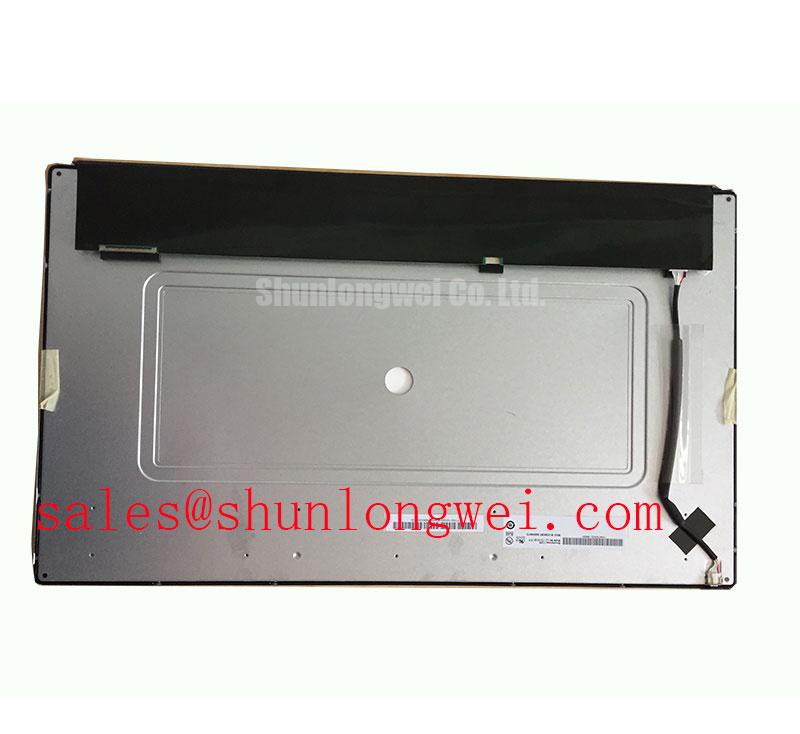

Brand AUOM odel G215HAN01.5 Diagonal Size 21.5 inch Type a-Si TFT-LCD, LCM Pixel Format 1920(RGB)×1080 [FHD] 102PPI Configuration RGB Vertical Stripe Active Area 476.064(H)×267.786(V) mm Outline Dim 497.6(H)×292.2(V) ×11(D) mm Bezel Area 479.8(H)×271.3(V) mm Treatment Antiglare, Hard coating (3H) Luminance 500 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (TM) View Direction Symmetry Response Time 12/10 (Typ.)(Tr/Td) Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down Operating Mode AHVA, Normally Black, Transmissive Support Color 16.7M 72% NTSC Light Source WLED , 30K hours , W/O Driver Weight 1.74Kgs (Typ.)Designed ForIndustrial Medical Imaging Frame Rate 60HzTouch PanelWithout Interface Type LVDS (2 ch, 8-bit) , 30 pins Connector Power Supply 5.0V (Typ.) Environment Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C G215HAN01.5 inverter, G215HAN01.5 power supply, G215HAN01.5 electronic board, G215HAN01.5 VGA board, G215HAN01.5 touchscreen available.
