Content last revised on June 27, 2023
Panel Brand AUO

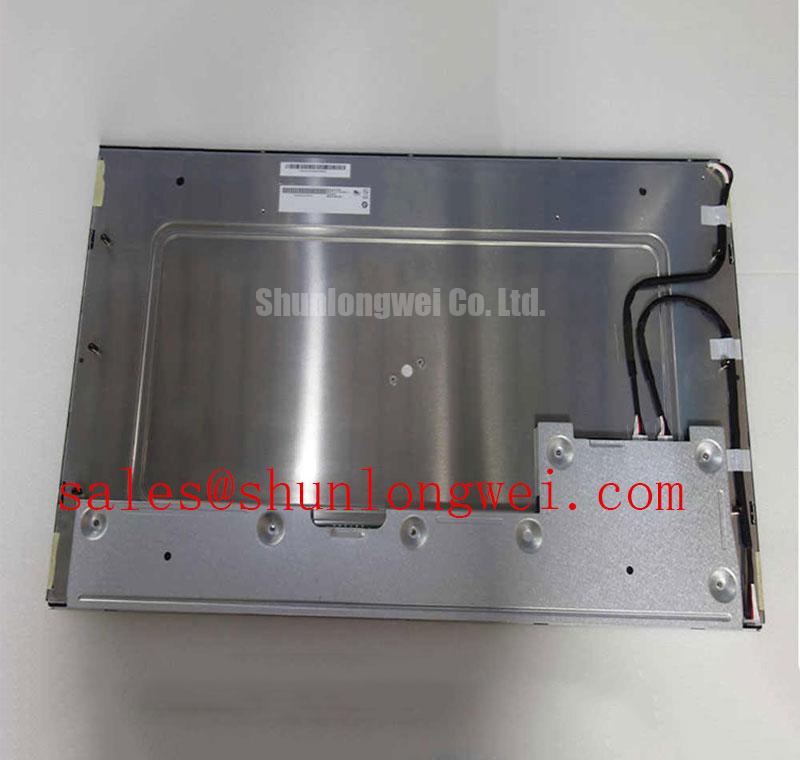

Panel Model G270HAN01.2
Panel Size 27.0"Panel
Type a-Si TFT-LCD, LCM
Resolution 1920(RGB)×1080, FHD, 81PPI
Pixel Format RGB Vertical Stripe
Display Area 597.888(W)×336.312(H) mm
Bezel Opening 601.49(W)×339.91(H) mm
Outline Size 611.48(W)×355.81(H) ×13.3(D) mm
Surface Antiglare
Brightness 400 cd/m² (Typ.)Contrast Ratio1000:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
Display Mode AHVA, Normally Black, Transmissive
Best View on Symmetry
Response Time 14 (Typ.)(Tr+Td)
Display Colors 16.7M 72% NTSC
Lamp Type 22S4P WLED , 50K hours , Without Driver
Frequency 60HzTouch
Screen Without
Panel Weight 2.87Kgs (Typ.)ApplicationIndustrial
Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage 5.0V (Typ.)
Environment Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
