Content last revised on March 3, 2025
Manufacturer AUO

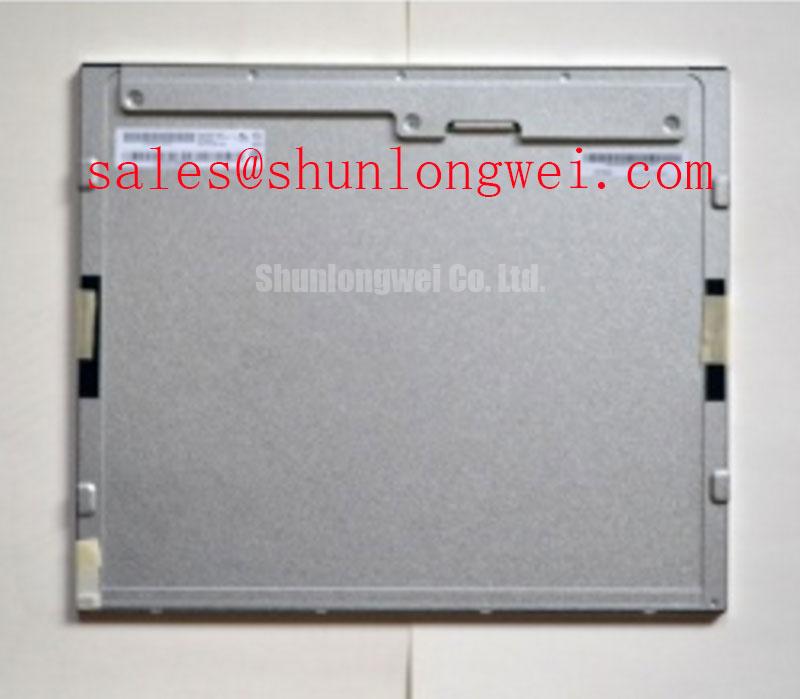

Model Name G270QAN01.0
Screen Size 27.0 inch
Screen Type LCM , a-Si TFT-LCD
Pixel Number 2560(RGB)×1440 (Quad-HD) 108PPI
Arrangement RGB Vertical Stripe
Active Area(mm) 596.74 × 335.66 (H×V)
Outline(mm) 630 × 368.2 × 15.6 (H×V×D)
Bezel Area(mm) 601.6 × 340.15 (H×V)
Treatment Antiglare
Luminance 350 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
Response 8/8 (Typ.)(Tr/Td) ms
Good View at Symmetry
Work Mode AHVA, Normally Black, Transmissive
Color Depth16.7M 100% Adobe RGBBacklight4 strings WLED , 30K hours , No Driver
Mass3.15W (Typ.)Used forIndustrial
Refresh Rate60HzTouchscreenWithout
Signal TypeLVDS (4 ch, 8-bit) , 92 pins Connector
Voltage Supply5.0V (Typ.)
Max. RatingsStorage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
