Content last revised on September 18, 2023

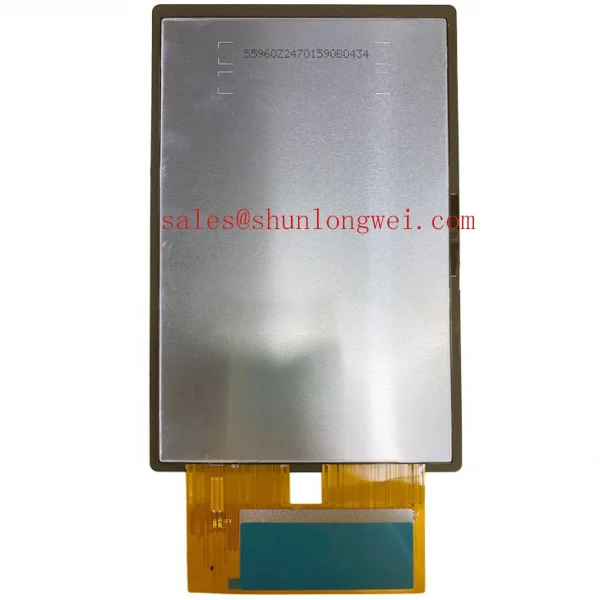

Brand: BOE
Model: P/NGV070WUM-L50-1SP0
Diagonal Size: 7.0 inches
Panel Type: a-Si TFT-LCD, LCM (Liquid Crystal Module)
Resolution: 1200(RGB)×1920 pixels (WUXGA)
Pixel Format: RGB Vertical Stripe
Active Area: 94.5(W)×151.2(H) mm
Outline Dimensions: 109.8(H)×173(V)×5.25(D) mm
Treatment: Hard coating
Luminance: 1000 cd/m² (Typical)
Contrast Ratio: 1200:1 (Minimum) (TM)
Viewing Angle: 80°/80°/80°/80° (Typical) (Left / Right / Up / Down)
Response Time: 25 ms (Typical) (Tr+Td)
Operating Mode: ADS (Advanced Super Dimension Switch), Normally Black, Transmissive
Support Color: 1.07B (1.07 billion colors), 80% NTSC
Light Source: WLED (White Light Emitting Diode), Without Driver
Weight: Not specified
Designed For: Industrial
Frame Rate: 60Hz
120Hz (60HZ Input): Embedded MEMC Circuit
120Hz+120Hz: 120Hz Panel+120Hz Backlight
240Hz (60HZ Input): Embedded MEMC Circuit
Touch Panel: In-Cell Touch, I²C
Interface Type: MIPI (Mobile Industry Processor Interface) with 4 data lanes, 40 pins Connector
Power Supply: 1.8/5.5/-5.5V (Typical) (VDDI/AVDD/AVEE)
Environment:
Operating Temperature: -20°C to 70°C
Storage Temperature: -20°C to 70°C
